MAGNETIC-MOUNT-PRO-14(48X86)

Order number: 70161014

Product description:
MAGNETIC-MOUNT-PRO for Lasermodul 14mm, Diameter 48mm, Height 86mm,

• anodized aluminium
• very robust
• for industrial applications
• magnetic
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 1
MAGNETIC-MOUNT-PRO-14(48X86) - Hauptbild
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 2
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 3
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 4
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 5
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 6
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 7
MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 8
83,95
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Material aluminium
    Operating Voltage max 0V DC
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -50°C - 70°C
    Weight 288g

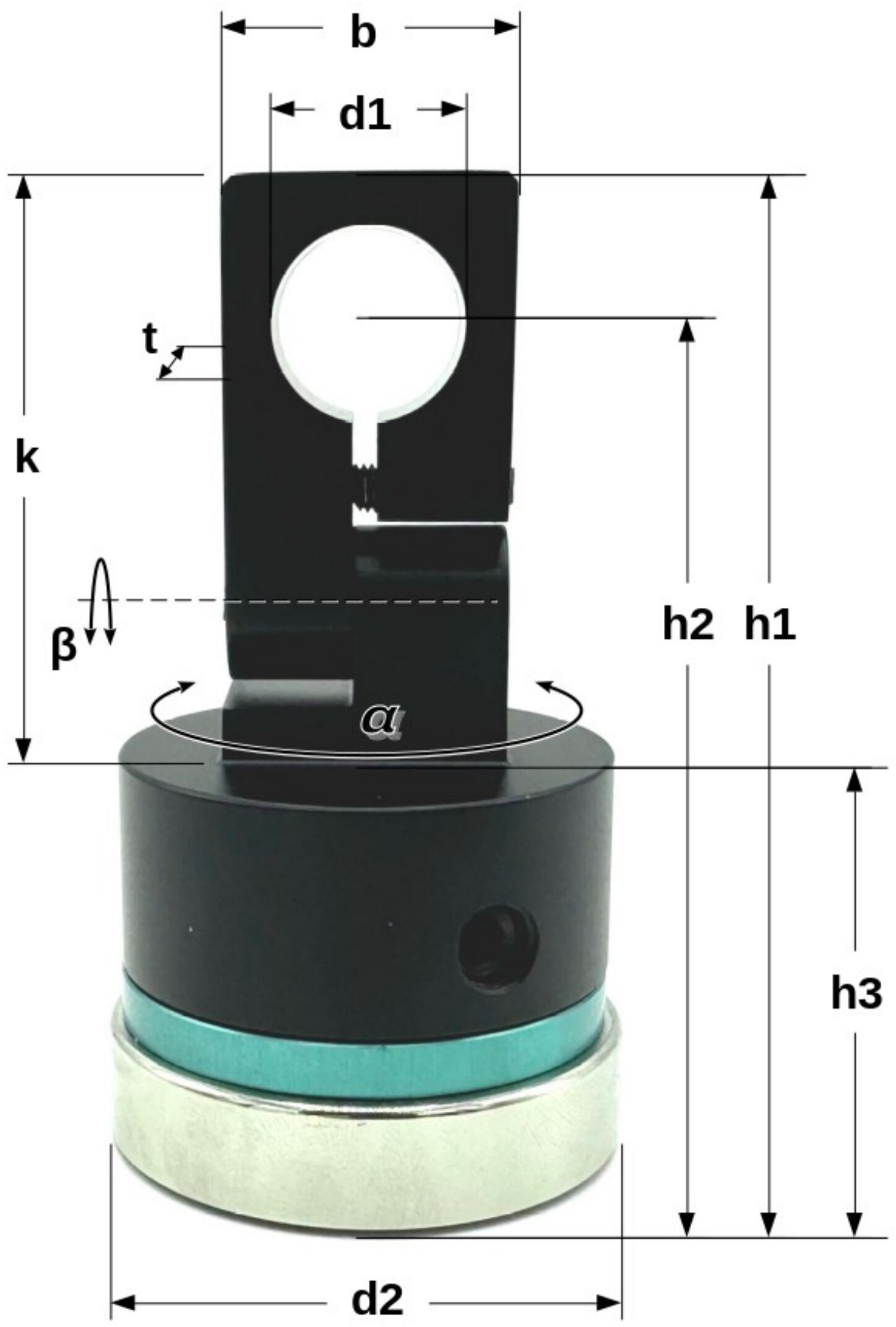

    Total Height (h1) 86mm
    Height to Laseraxis (h2) 73mm
    Height of Base (h3) 37mm
    Mount Diameter (d1) Ø14mm
    Diameter of Base (d2) Ø48mm
    Width of Mount (b) 26mm
    Height of Mount (g) 50mm
    Height of Mount Head (k) 50mm
    Depth of Mount (t) 15mm
    Angle of Rotation Alpha (α) 360°
    Angle of Rotation Beta (β) ±90°
    LB Rating 3
  • Illustration and technical drawing
  • MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 1
    MAGNETIC-MOUNT-PRO-14(48X86) - Hauptbild
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 2
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 3
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 4
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 5
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 6
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 7
    MAGNETIC-MOUNT-PRO-14(48X86) - Produktbild 8
  • Downloads
  • Contact
  • Please note our privacy policy.

    These are mandatory fields
