LFD650-5-3(12x32)

Order number: 70104561

Product description:
Dot lasermodule, red, 650nm, 5mW, 3V DC, 12x32mm, class 3R

• Operating Voltage 3 V DC
• Laser Class 3R
• fixed focus
• low cost
• small laser head

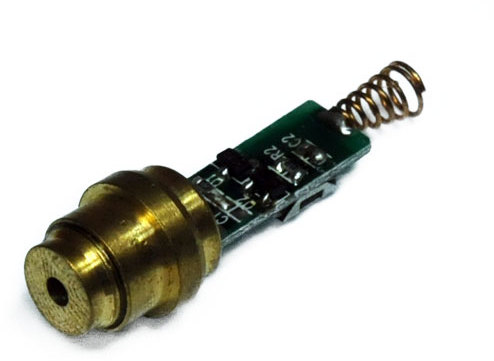

LFD650-5-3(12x32) - Hauptbild

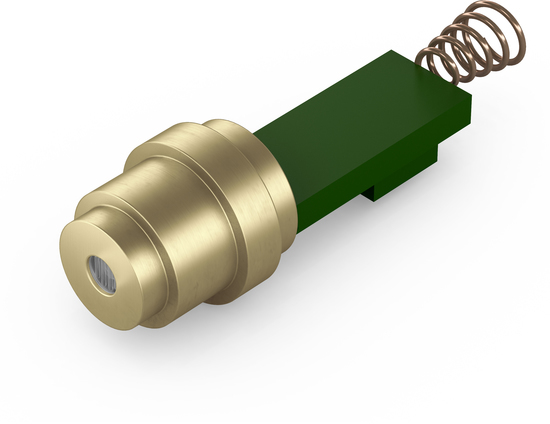

LFD650-5-3(12x32) - Rendergrafik

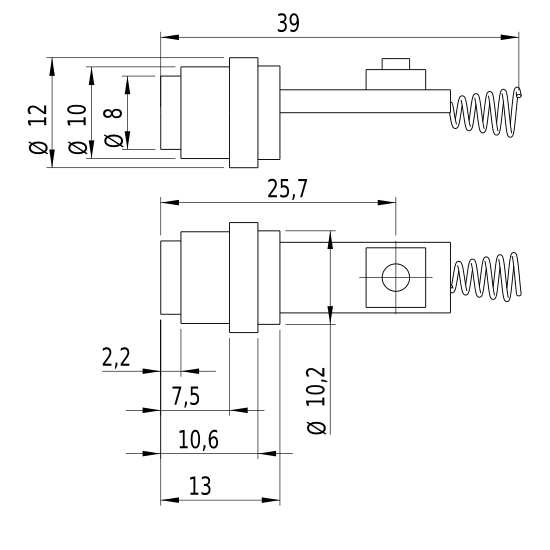

LFD650-5-3(12x32) - Zeichnung

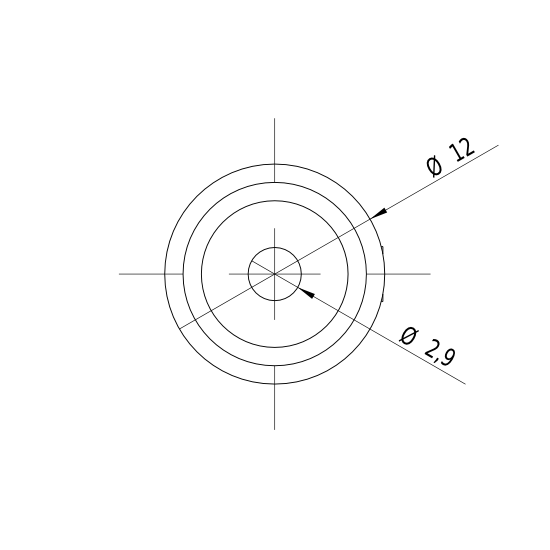

LFD650-5-3(12x32) - Zeichnung Front

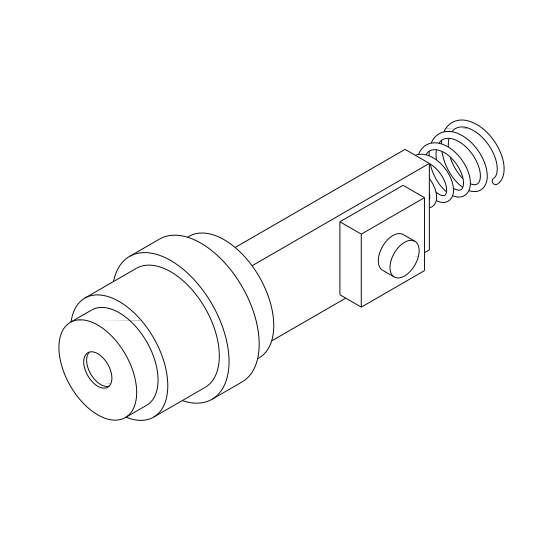

LFD650-5-3(12x32) - Zeichnung isometrisch
Warnlabel 3R
10,00
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Dot
    Wavelength 650nm
    (rot)
    Optical Power 5mW
    Laser Class 3R
    Divergence 0.8mrad
    Beam Diameter 12mm
    Size of Laserdot <4..6mm@5m
    Operating Distance 10m
    Optics acryl lense
    Laser technology diode
    Size Ø12mm 32mm
    Material Bronze
    Cable length 0mm
    Focus collimated
    Output Aperture 2.5mm
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 15 - 40, typ 25mA
    Operating Temperature -20°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 7g
  • Illustration and technical drawing
  • LFD650-5-3(12x32) - Hauptbild
    LFD650-5-3(12x32) - Rendergrafik
    LFD650-5-3(12x32) - Zeichnung
    LFD650-5-3(12x32) - Zeichnung Front
    LFD650-5-3(12x32) - Zeichnung isometrisch
    Warnlabel 3R
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    58.74 EUR
