LH520-8-5(11X30)-C2000-USB-C

Order number: 70160109

Product description:
line laser, green, 90°, 520nm, 8mW, 5V DC, 11x30mm, class 1

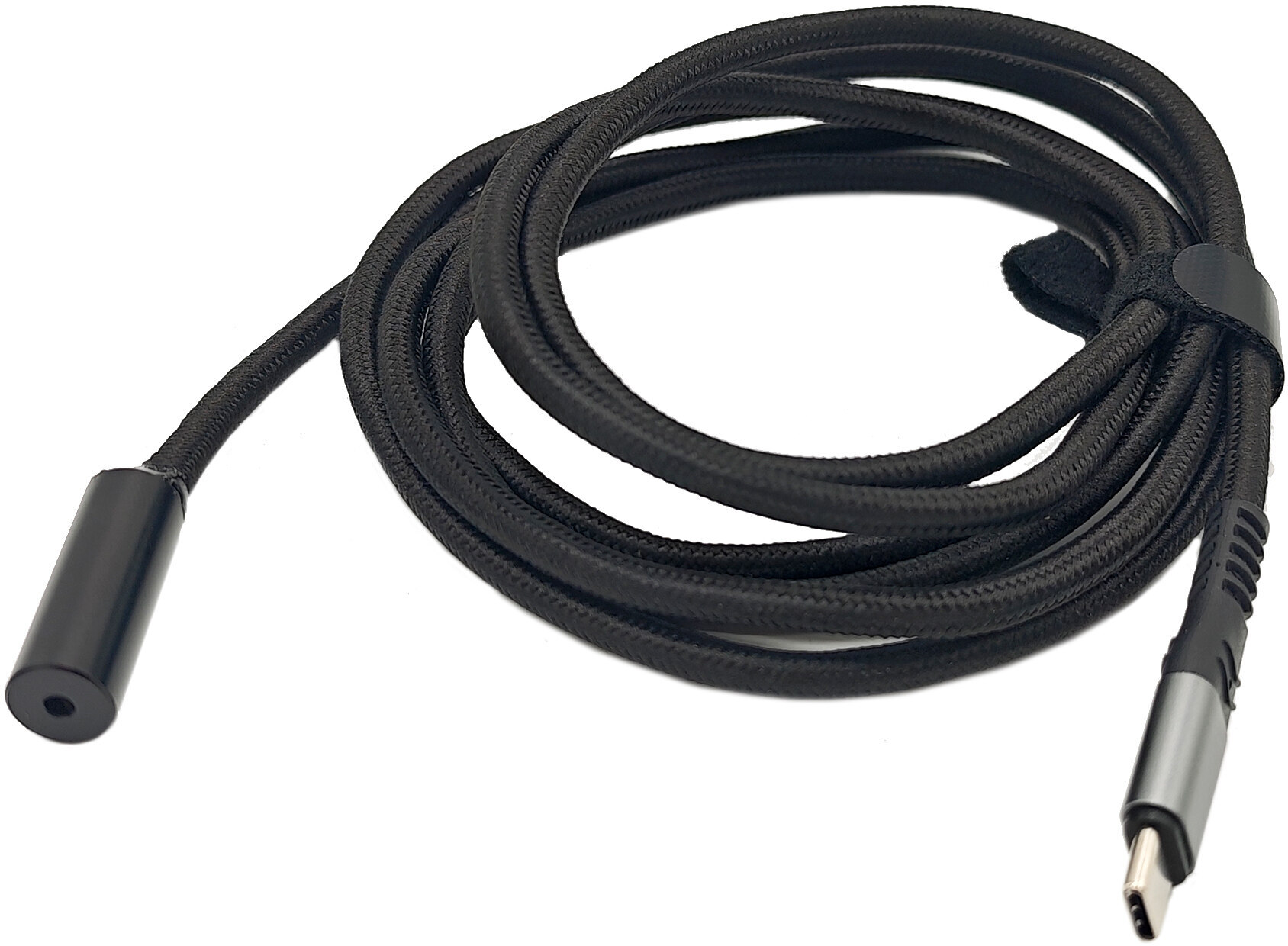

LH520-8-5(11X30)-C2000-USB-C - Produktbild 1
LH520-8-5(11X30)-C2000-USB-C - Hauptbild
Warnlabel 1
302,44
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 8mW
    Laser Class 1
    Divergence 1mrad
    Fan Angle 90°
    Line Thickness <2mm@2m
    Operating Distance 2m
    Optics Glass lens AR coated
    Axial Divergence ±0.3°
    Size Ø11mm 30mm
    Material aluminium
    Cable length 2000mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (2000mm)
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 80 - 120, typ 100mA
    Housing Color black
    Connector CON-USB-C
    Operating Temperature -10°C - 60°C
    Storage Temperature -40°C - 80°C
    Weight 9g
  • Illustration and technical drawing
  • LH520-8-5(11X30)-C2000-USB-C - Produktbild 1
    LH520-8-5(11X30)-C2000-USB-C - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: whitewhiteGND
    Positive:Cable color Positive: redred5V DC
  • Matching accessories
  • MULTI-MOUNT-11(45x75)MULTI-MOUNT-11(45x75)
    Order no.: 70114089
    Mount for Lasermodul 11mm, Diameter 45mm, Height 75mm
    66.30 EUR
