DOE339-MDD905-4-3(12x38)-NT

Order number: 70139525

Product description:
Modulated focusable isolated DOE lasermodule, infrared, 905nm, 4mW, 3V DC, 12x38mm, class 3R, incl. DOE339 and power supply

• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC

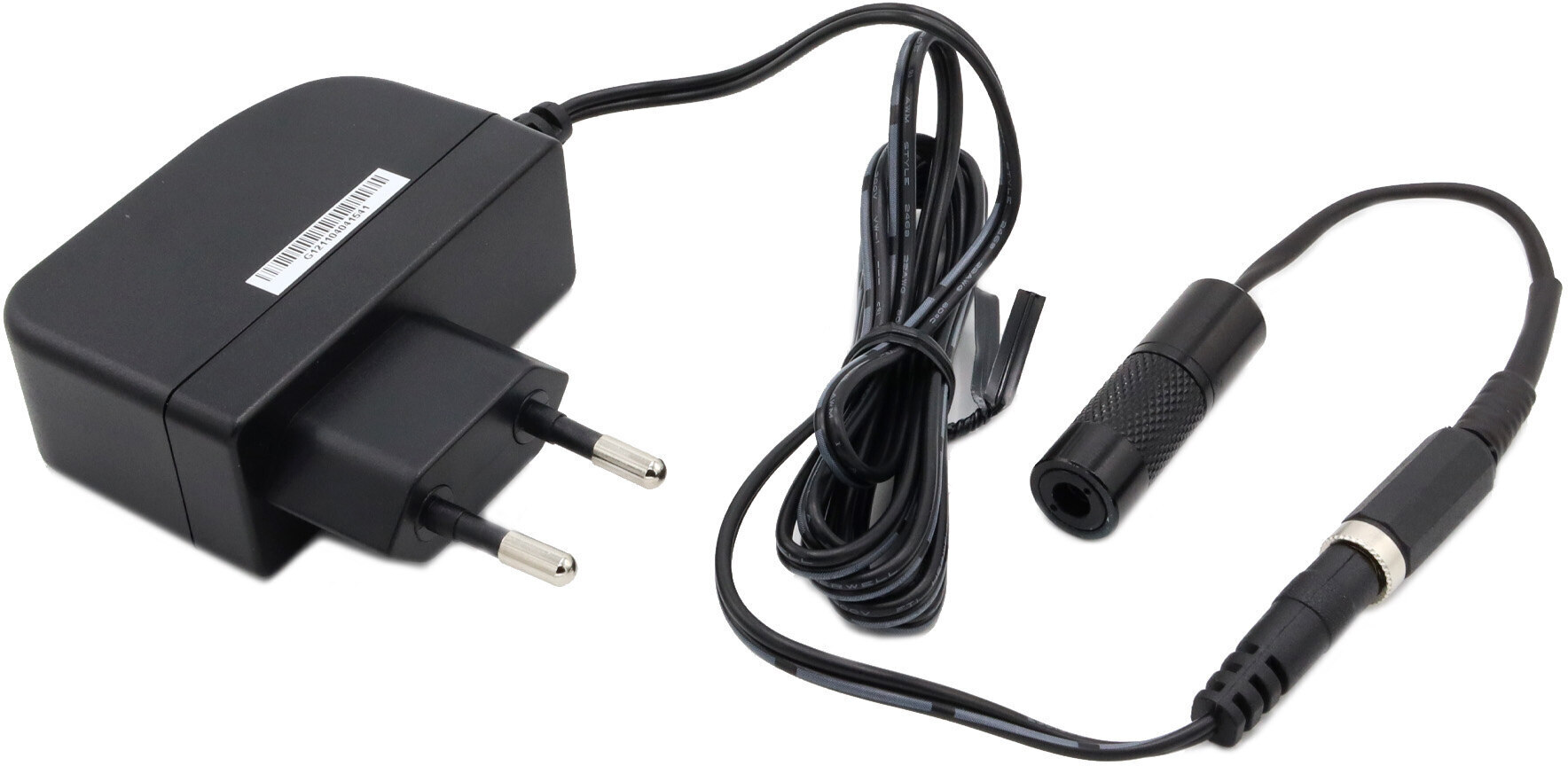

DOE339-MDD905-4-3(12x38)-NT - Hauptbild
DOE339-MDD905-4-3(12x38)-NT - Zeichnung
DOE339-MDD905-4-3(12x38)-NT - Zeichnung Front
DOE339-MDD905-4-3(12x38)-NT - Zeichnung isometrisch
Warnlabel 3R
DOE339-MDD905-4-3(12x38)-NT - DOE-Vermaßungsskizze
369,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 905nm
    (infrarot)
    Optical Power 4mW
    Laser Class 3R
    Divergence 0.5mrad
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø12mm 38mm
    Material aluminium
    Cable length 1390mm
    Wire type 26AWG, 0,14mm²
    Focus adjustable
    Output Aperture 5mm
    Potential of Housing insulated
    Max. Mod. Frequency 100kHz
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 10 - 30, typ 20mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Power Supply included Ja
    Weight 9.5g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
  • Illustration and technical drawing
  • DOE339-MDD905-4-3(12x38)-NT - Hauptbild
    DOE339-MDD905-4-3(12x38)-NT - Zeichnung
    DOE339-MDD905-4-3(12x38)-NT - Zeichnung Front
    DOE339-MDD905-4-3(12x38)-NT - Zeichnung isometrisch
    Warnlabel 3R
    DOE339-MDD905-4-3(12x38)-NT - DOE-Vermaßungsskizze
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
    Modulation:Cable color Modulate: yellowyellow100kHz
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    54.54 EUR
