LH520-4-5(11X30)20DEG-C2000

Order number: 70160031

Product description:
line laser, green, 20°, 520nm, 4mW, 5V DC, 11x30mm, class 1

260,42
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	4mW
Laser Class	1
Divergence	1mrad
Fan Angle	20°
Line Thickness	<2mm@2m
Operating Distance	2m
Optics	Glass lens AR coated
Axial Divergence	±0.3°
Size
Material	aluminium
Cable length	2000mm
Wire type	26AWG, 0,14mm²
Focus	fixed (2000mm)
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	24 - 60, typ 40mA
Housing Color	black
Operating Temperature	-10°C - 60°C
Storage Temperature	-40°C - 80°C
Weight	9g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.

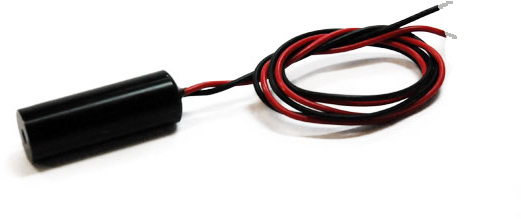

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
Downloads
Data sheet Fax order form
