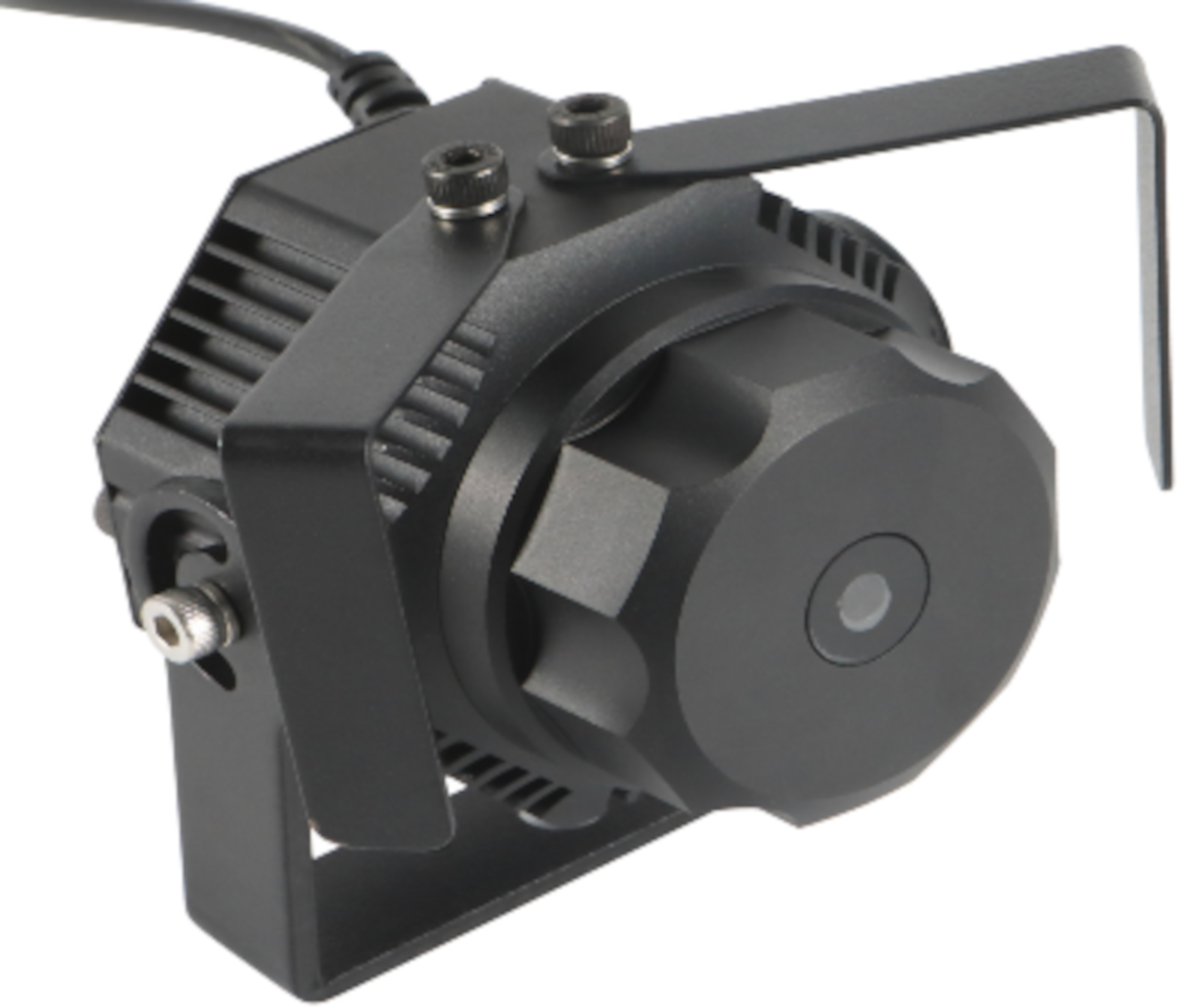

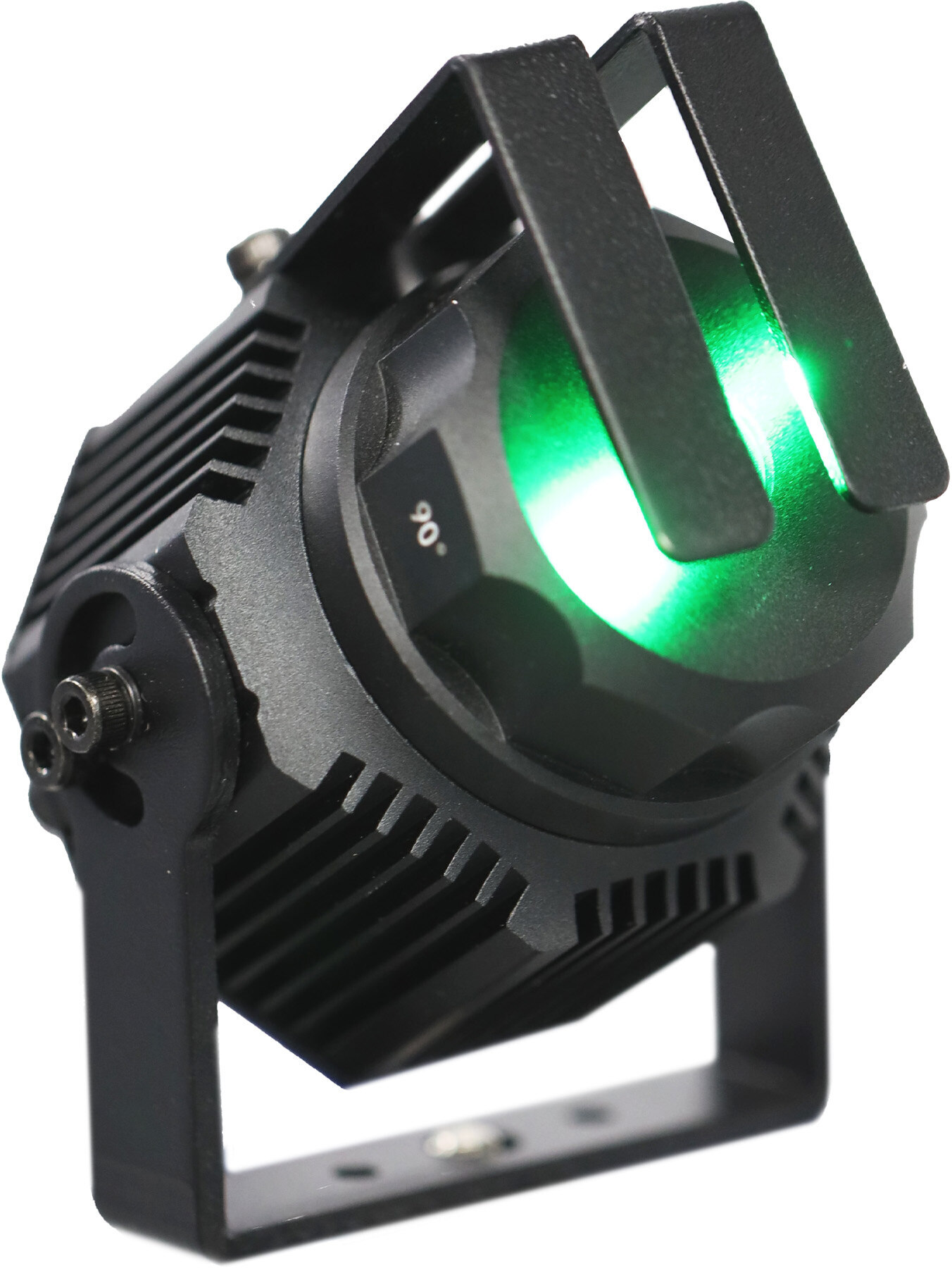

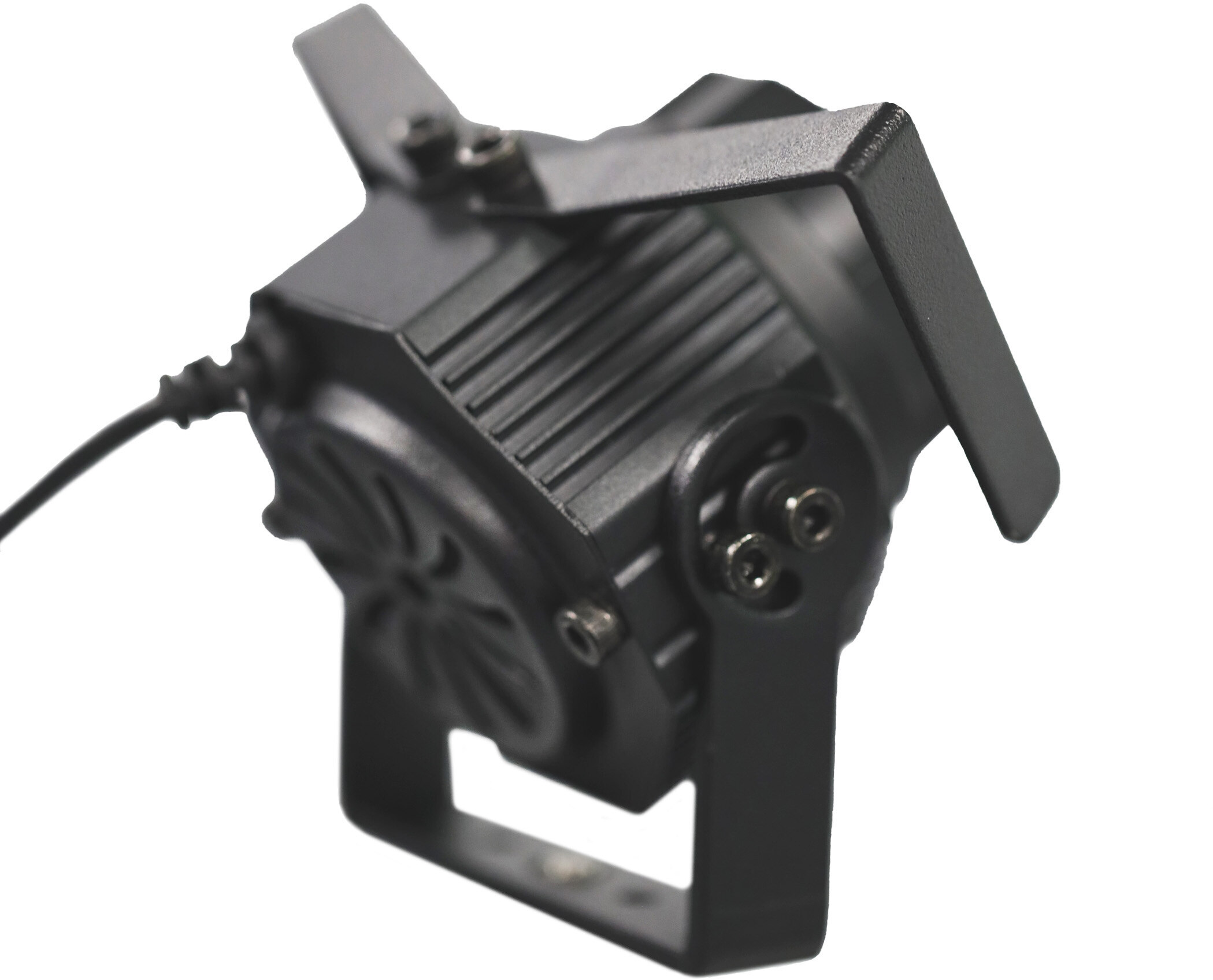

PICOMARK-520-1200

Order number: 70159035

Product description:
collimated isolated Line lasermodule, green, 520nm, 1200mW, 230V, 80x80mm, class 3B

1.260,42
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	520nm (grün)
Optical Power	1200mW
Laser Class	3B
Divergence	1mrad
Line Thickness	30mm-80mm
Operating Distance	8m
Optics	Glass lens AR coated
Size
Material	aluminium
Cable length	5000mm
Wire type	22AWG, black, 3,6mm
Focus	collimated
Lifetime	>10000h
Operating Voltage	230V AC
Operating Current	100 - 400, typ 300mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	200g
Protection Class	IPIP 67

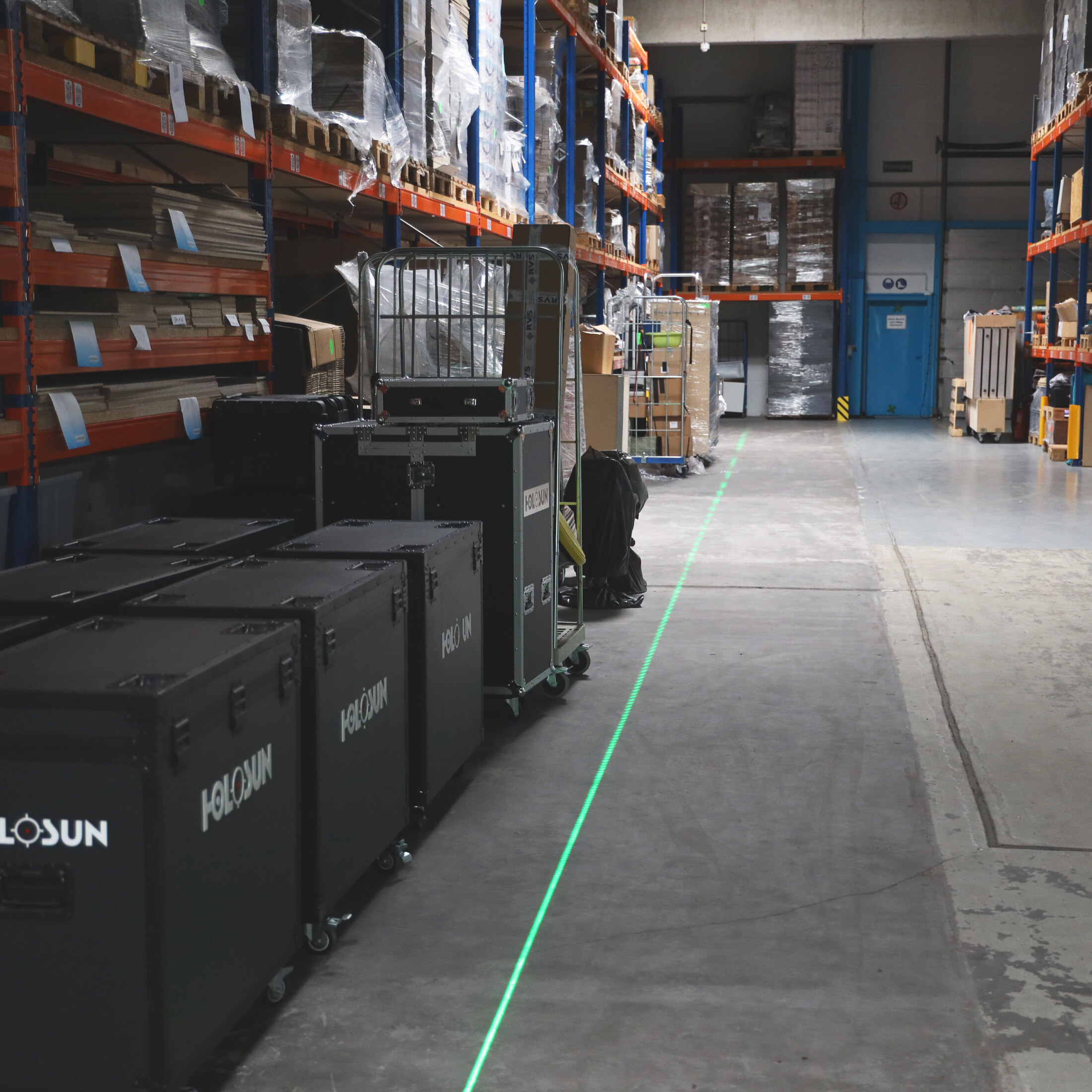

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 230V DC
Matching accessories
NF-S-419424-1-16A
Order no.: 70115031
Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
144.45 EUR
Downloads
Data sheet Fax order form
