LE650-5-24(12X50)60-C300

Order number: 70158526

Product description:
isolated line laser, red, 60°, 650nm, 5mW, 24V DC, 12x50mm, class 1

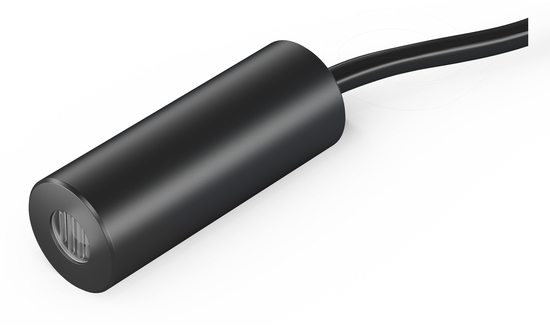

LE650-5-24(12X50)60-C300 - Produktbild 1
LE650-5-24(12X50)60-C300 - Hauptbild
LE650-5-24(12X50)60-C300 - Rendergrafik
Warnlabel 1
81,43
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power5mW
    Laser Class1
    Divergence0.6mrad

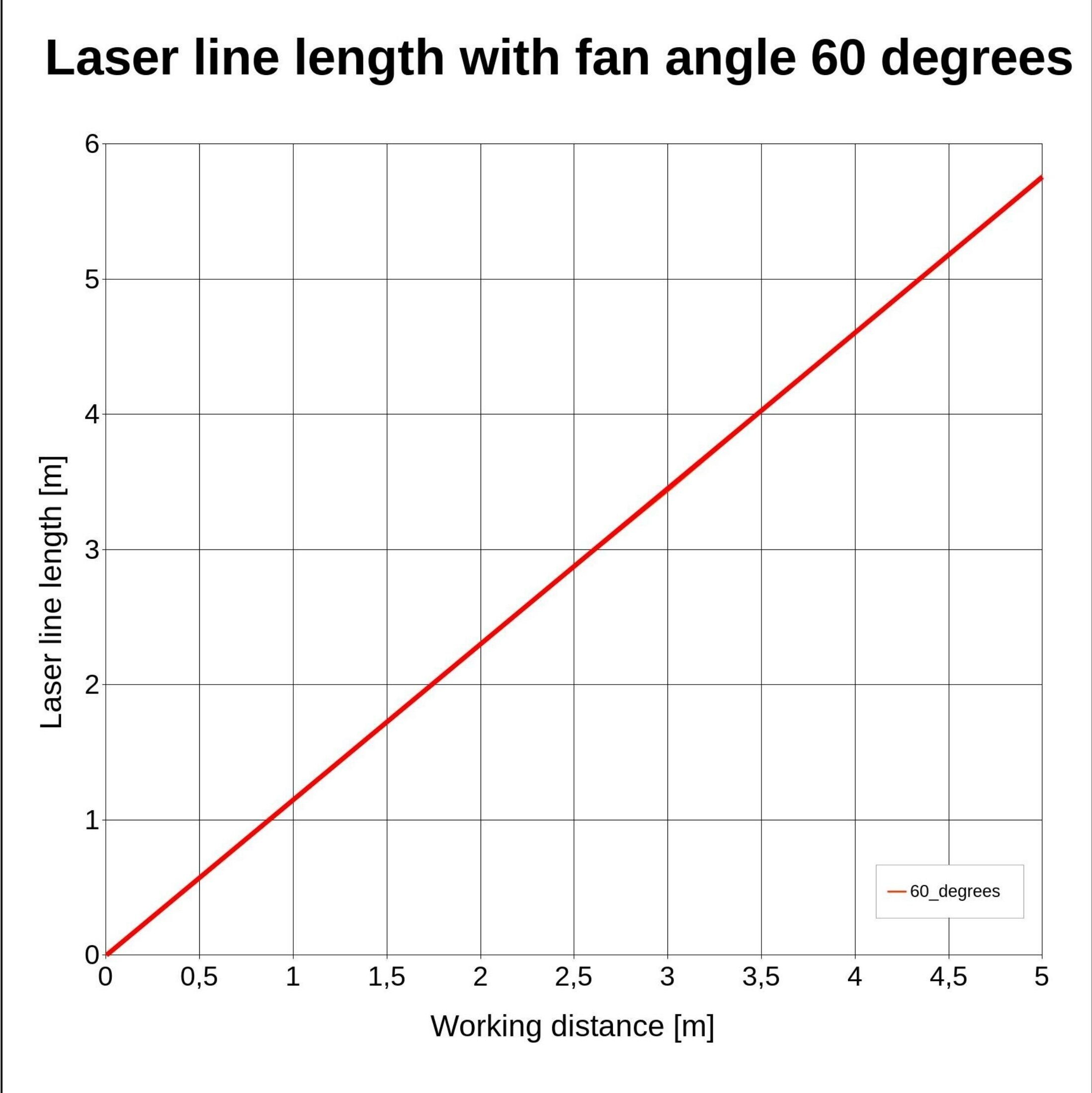

    Fan Angle60°
    Line Thickness<1.5mm@1m
    Operating Distance10m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Protection LensJa
    SizeØ12mm 50mm
    Materialaluminium
    Cable length300mm
    Wire type22AWG / black,white
    Focusfixed (1000mm)
    Output Aperture5.5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage23.6 - 24.4, typ 24V DC
    Operating Current2 - 15, typ 6mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight13g
    Stripping of wire5mm
  • Illustration and technical drawing
  • LE650-5-24(12X50)60-C300 - Produktbild 1
    LE650-5-24(12X50)60-C300 - Hauptbild
    LE650-5-24(12X50)60-C300 - Rendergrafik
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: whitewhite24V DC
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    58.74 EUR
