LE520-30-24-F(15X60)30-PWL-CON

Order number: 70157642

Product description:

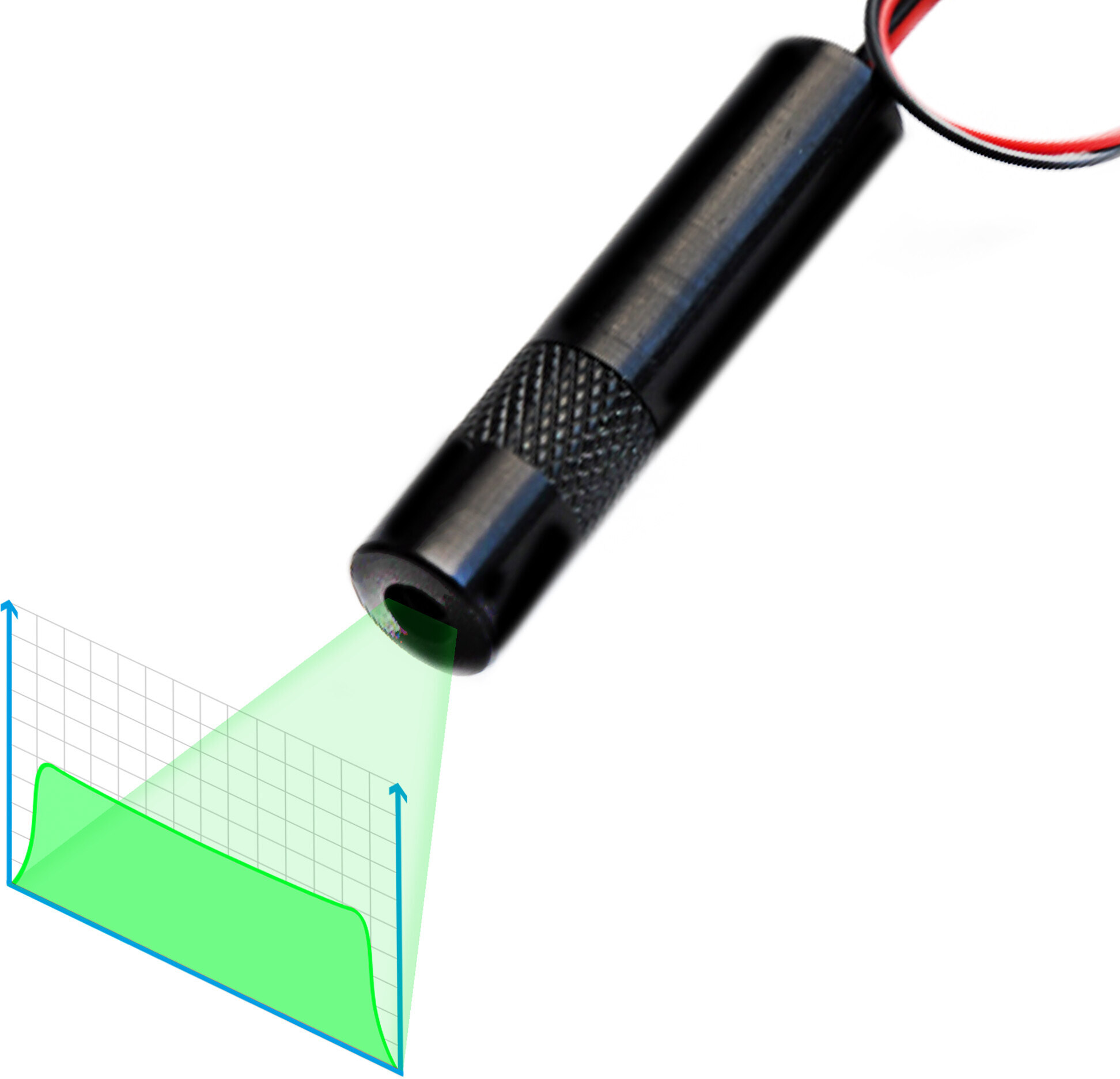

adjustable line laser, green, 30°, 520nm, 30mW, 24V DC, 15x60mm, class 2M, constant energy distribution, Powell Linse, M12 connector
LE520-30-24-F(15X60)30-PWL-CON - Hauptbild
LE520-30-24-F(15X60)30-PWL-CON - Produktbild 1
LE520-30-24-F(15X60)30-PWL-CON - Produktbild 2
LE520-30-24-F(15X60)30-PWL-CON - Rendergrafik
Warnlabel 2M
806,64
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power30mW
    Laser Class2M
    Divergence0.6mrad

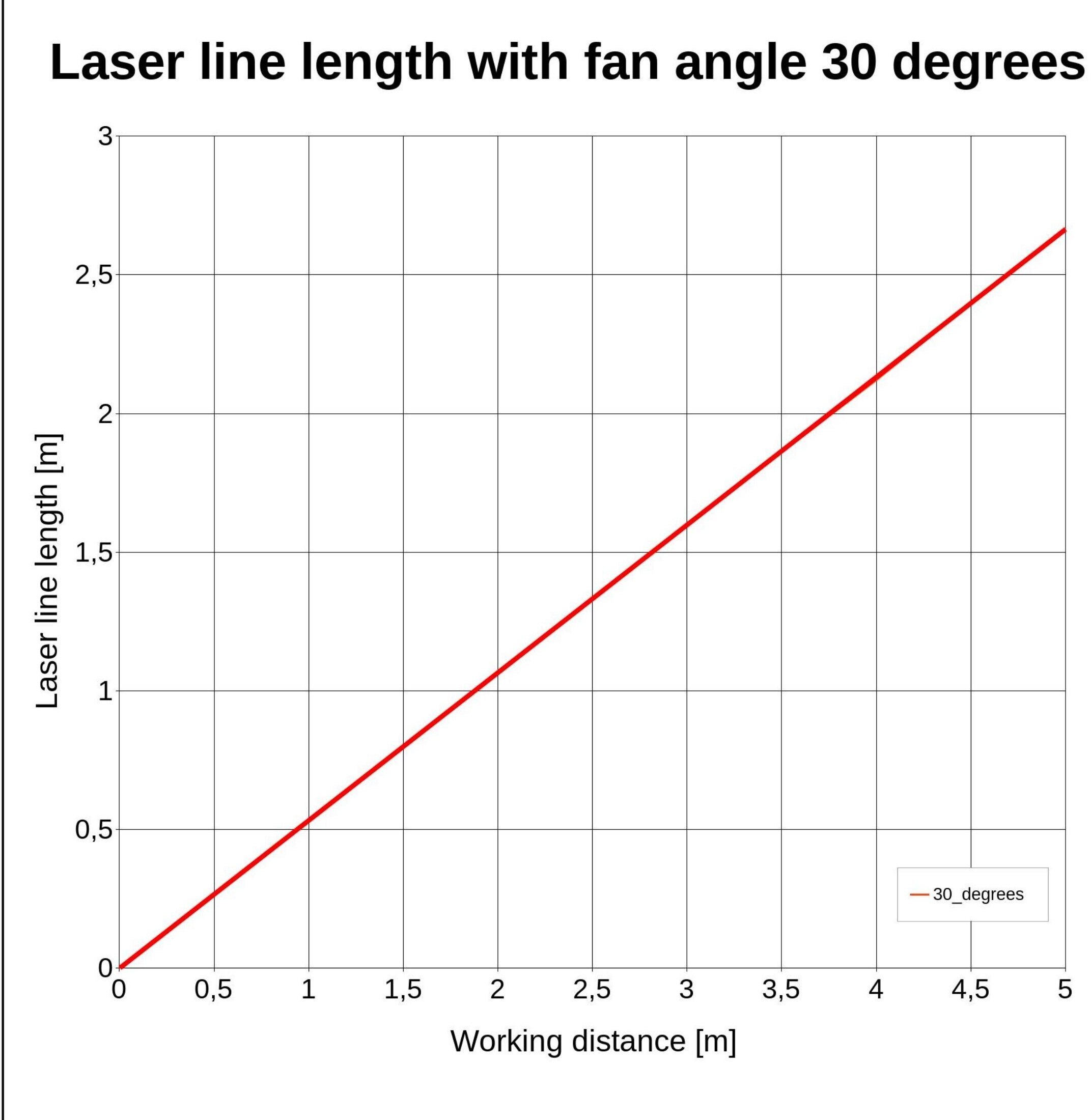

    Fan Angle30°
    Line Thicknessadjustable
    Operating Distance10m
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Opt. Power Stability at const. Temp.<5%
    Axial Divergence±1°
    SizeØ15mm 60mm
    Materialaluminium
    Cable length130mm
    Wire type24AWG, black, 3mm
    Focusadjustable
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>6000h
    Operating Voltage23 - 25, typ 24V DC
    Operating Current120 - 150, typ 140mA
    Housing Colorblack
    ConnectorCON-M12
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight20g
    Power SupplyLaser Power Supply, Output: 24V DC, 1A, Input: 100-240V AC, 50-60Hz, Output Power: max. 24W, 4-Pin Industrial-M12-Connector
    Stripping of wire5mm
  • Illustration and technical drawing
  • LE520-30-24-F(15X60)30-PWL-CON - Hauptbild
    LE520-30-24-F(15X60)30-PWL-CON - Produktbild 1
    LE520-30-24-F(15X60)30-PWL-CON - Produktbild 2
    LE520-30-24-F(15X60)30-PWL-CON - Rendergrafik
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: whitewhiteGND
    Positive:Cable color Positive: redred24V DC
  • Matching accessories
  • MULTI-MOUNT-15(45x75)MULTI-MOUNT-15(45x75)
    Order no.: 70114102
    Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
    66.30 EUR
