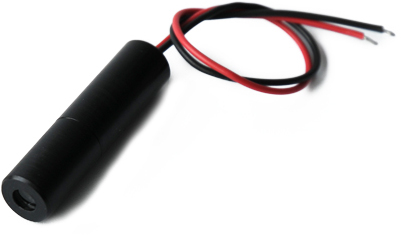

LH650-4-5(10X30)20-F100

Order number: 70155945

Product description:
Line lasermodule, red, 20°, 650nm, 4mW, 5V DC, 10x30mm, class 2, focus 100mm

• * Line Width (1/e²) <100µm@100mm
* Line Width (1/e²) <200µm@100 +-20mm

133,53
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	4mW
Laser Class	2
Divergence	1mrad

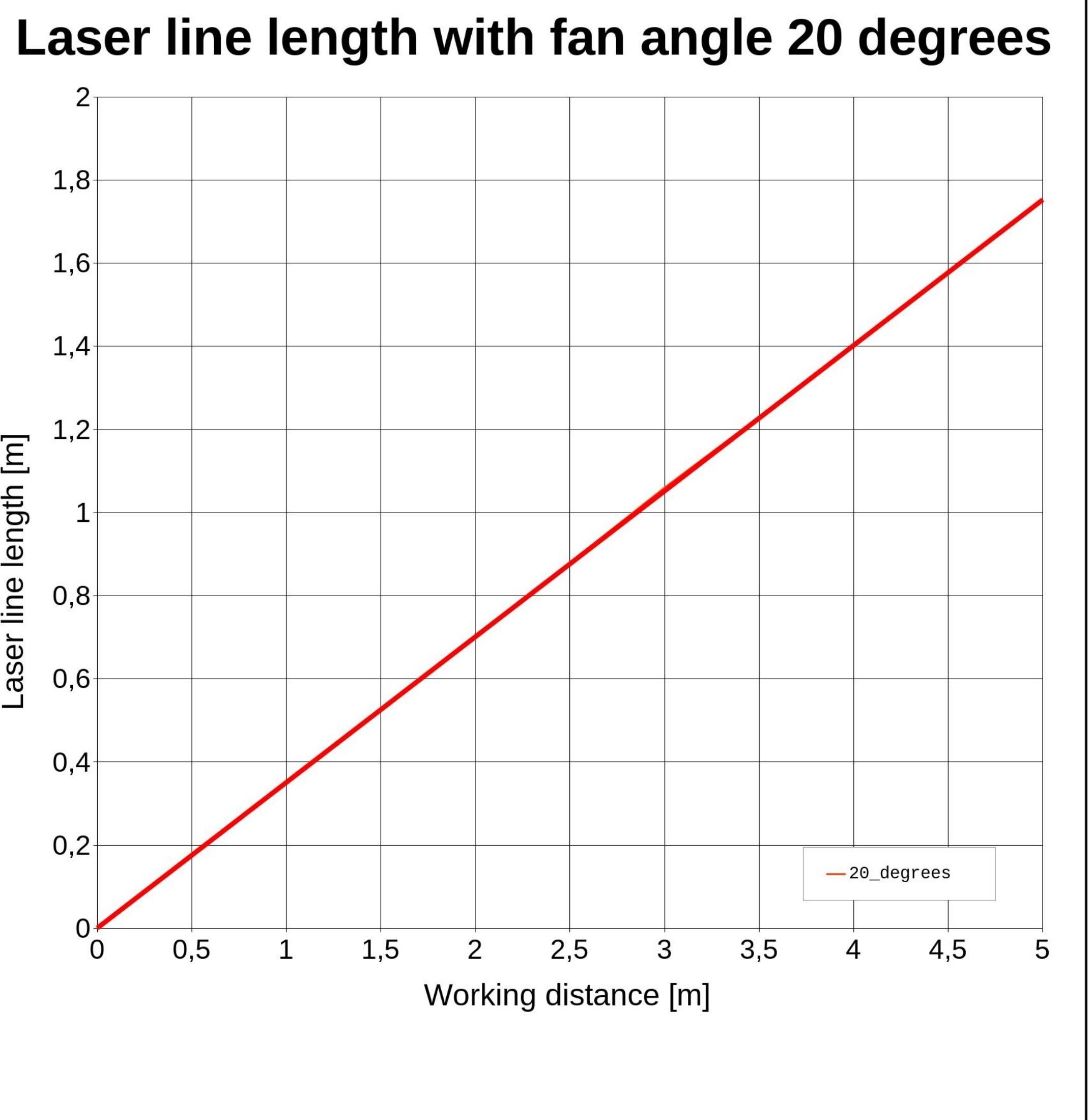

Fan Angle	20°
Line Thickness	<0.1mm@0.1m, <0.2mm@0.1+/-0.02m
Operating Distance	0.1m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	200mm
Wire type	28AWG
Focus	fixed
Output Aperture	3mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	30 - 90, typ 60mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-40°C - 85°C
Weight	10g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
