LE520-5-24(16x80)90-F1000-C100

Order number: 70152777

Product description:
line laser, green, 90°, 520nm, 5mW, 24V DC, 16x80mm, class 1, Focus 1m

• 90° fan angle
• Laser Class 1
• Operating Voltage 24 V DC
• fixed focus

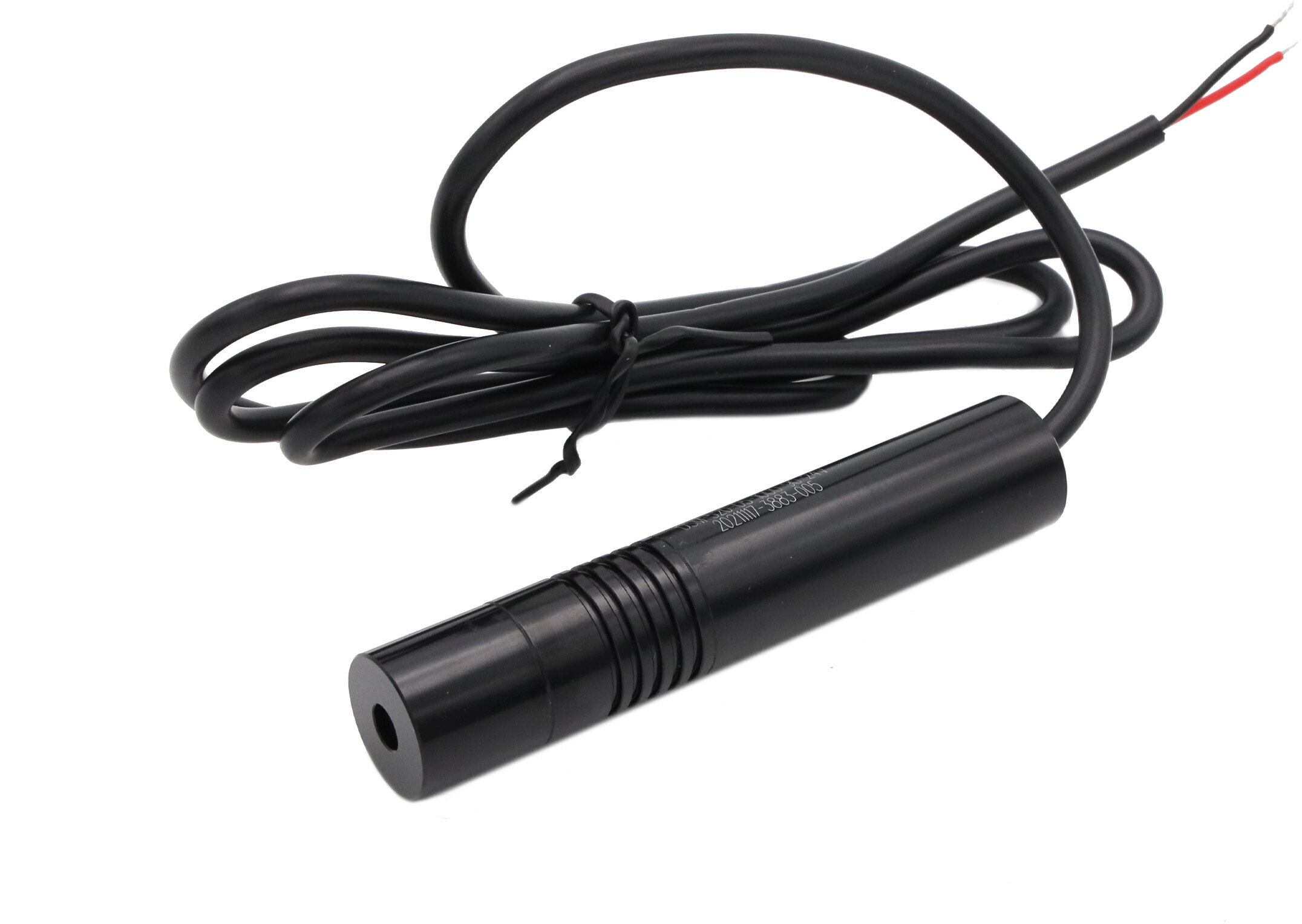

LE520-5-24(16x80)90-F1000-C100 - Produktbild 1
LE520-5-24(16x80)90-F1000-C100 - Hauptbild
Warnlabel 1
201,60
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 5mW
    Laser Class 1
    Divergence 0.6mrad
    Fan Angle min 80°
    Fan Angle 90°
    Fan Angle max 100°
    Line Thickness <1.5mm@1m
    Operating Distance 1m
    Optics Glass lens AR coated
    Laser technology diode
    Protection Lens Ja
    Size Ø16mm 80mm
    Material aluminium
    Cable length 100mm
    Wire type 24AWG, black, 3mm
    Focus fixed (1000mm)
    Potential of Housing insulated
    Lifetime >5000h
    Operating Voltage 22.8 - 25.2, typ 24V DC
    Operating Current 50 - 150, typ 100mA
    Housing Color black
    Operating Temperature -20°C - 70°C
    Storage Temperature -40°C - 80°C
    Weight 15g
    Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
  • Illustration and technical drawing
  • LE520-5-24(16x80)90-F1000-C100 - Produktbild 1
    LE520-5-24(16x80)90-F1000-C100 - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred24V DC
  • Matching accessories
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Order no.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    66.30 EUR
