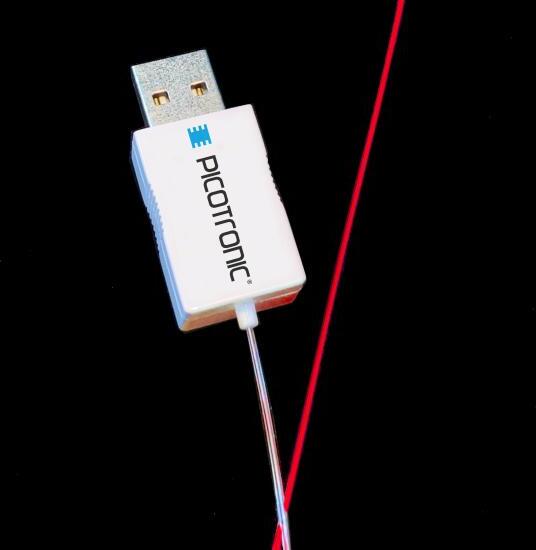

LD650-5-5(12X32)-PL-CON
Isolated Line lasermodule, red, 90°, 650nm, 5mW, 5V DC, 12x32mm, class 1, prote…
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |
| Beam Shape | Fiber |
| Wavelength | 638nm (rot) |
| Optical Power | 1mW |
| Laser Class | 2M |
| Operating Distance | 1m |
| Optics | Glass lens AR coated |
| Beam Mode | TEM00 |
| Laser technology | Single Mode Diode |
| Size | 39 x 18 x 11mm |
| Material | Aluminium/Plastic |
| Potential of Housing | insulated |
| Lifetime | >5000h |
| Operating Voltage | 4.5 - 5, typ 5V DC |
| Operating Current | 30 - 100, typ 50mA |
| Housing Color | black |
| Connector | CON-USB-A |
| Operating Temperature | -10°C - 50°C |
| Storage Temperature | -20°C - 85°C |
| Weight | 7g |
| Fiber included | Ja |
![]() | LFNT-5 Order no.: 70114683 Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. 22.61 EUR |
| DC650-0.4-3(8x25)-C1000 Order no.: 70142143 focusable isolated Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 8x25mm, class 1, cable length 1000 mm 41.93 EUR |
| DC520-0.4-24(12x45)QCW-C10000 Order no.: 70132212 isolated dot lasermodule, green, 520nm, 0.4mW, 24V DC, 12x45mm, class 1, cable length 10m, internal modulation with 1kHz blink frequency 277.23 EUR |
| LE520-30-24(20X80)60-M12-WP Order no.: 70159752 Line lasermodule, green, 60°, 520nm, 30mW, 24V DC, 20x80mm, class 2M, with M12-connector (without cable), IP64 386.47 EUR |
| DOE261-650-1-12(10x22) Order no.: 70135466 DOE Laser Module 650nm, red, 1mW, DOE Viewfinder ( Dot Circle + Cross) PC - 8x1,2mm 6,2°, 3-12V DC, Ø10x22mm, Laser Class 1M with DOE-DE-R261 98.24 EUR |
| DOE332-850-5-3(12x38) Order no.: 70128406 focusable isolated DOE lasermodule, infrared, 850nm, 5mW, 3V DC, 12x38mm, class 1, prepared for mounting a standard DOE 8x1,2mm incl. DOE-R332 226.81 EUR |
| LC850-16-3-F(14X45)30 Order no.: 70125030 focusable isolated Line lasermodule, infrared, 30°, 850nm, 16mW, 3V DC, 14x55mm, class 3R 268.82 EUR |
| DD650-10-3(14x45) Order no.: 70133219 isolated dot lasermodule, red, 650nm, 10mW, 3V DC, 14x45mm, class 3B, 20000h lifetime (MTTF @23°C) 184.79 EUR |
| LFD635-1-3(16x90)-NT Order no.: 70121629 dot laser, red, 635nm, 1mW, 3V DC, 16x90mm, class 2 115.88 EUR |
