MLE405-50-5(16x50)45-PWL-F67-IC

Order number: 70136098

Product description:
line laser, blue, 45°, 405nm, 50mW, 5V DC, 16x50mm, class 3R, uniform line distribution, Powell lens, Voltage control: 0 - 5 V for intensity control, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing

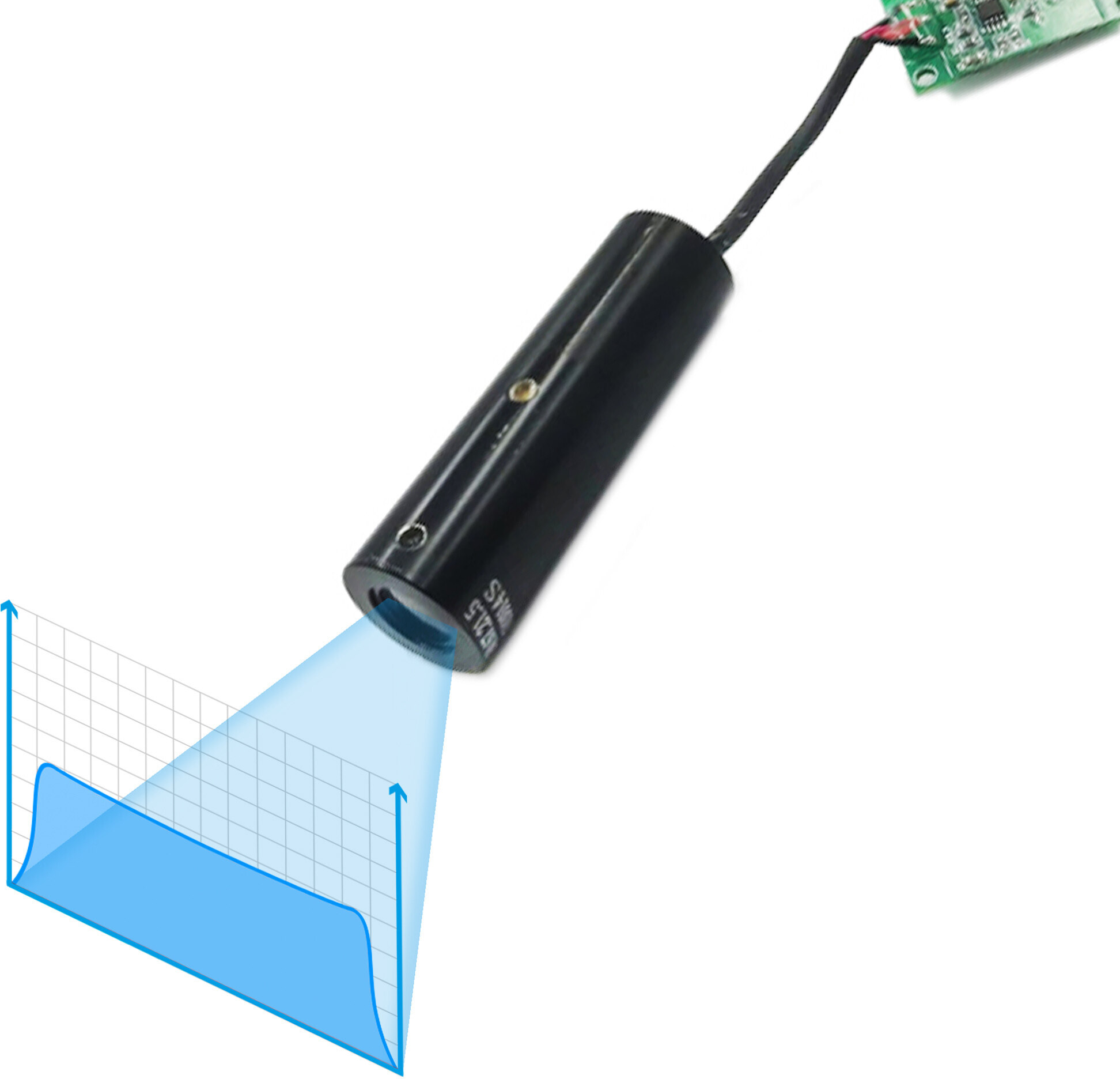

MLE405-50-5(16x50)45-PWL-F67-IC - Produktbild 1

MLE405-50-5(16x50)45-PWL-F67-IC - Rendergrafik

722,61
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification


Warranty	1Jahre
Beam Shape	Line
Wavelength	405nm (blau)
Optical Power	50mW
Laser Class	3R
Divergence	0.6mrad
Fan Angle	45°
Line Thickness	<0.05mm@0.067m
Operating Distance	0.067m
Optics	Powell Lens
Laser technology	Single Mode Diode
Opt. Power Stability at const. Temp.	<5%
Axial Divergence	±1°
Size	Ø16mm 50mm
Material	aluminium
Cable length	180mm
Wire type	26AWG, UL, isolated
Focus	fixed (67mm)
Output Aperture	4.5mm
Potential of Housing	insulated
Lifetime	>6000h
Operating Voltage	2.5 - 5, typ 5V DC
Operating Current	50 - 160, typ 140mA
Housing Color	black
Operating Temperature	-10°C - 80°C
Storage Temperature	-40°C - 85°C
Weight	20g
PCB	Ja
PCB size	30x20x2mm
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Modulation: green
Matching accessories
MULTI-MOUNT-16(45x75)
Order no.: 70112504
Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
61.26 EUR
