PLM-1165
Mount for laser modules with a diameter of D=12.5mm up to D=16.5mm, including a…
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |

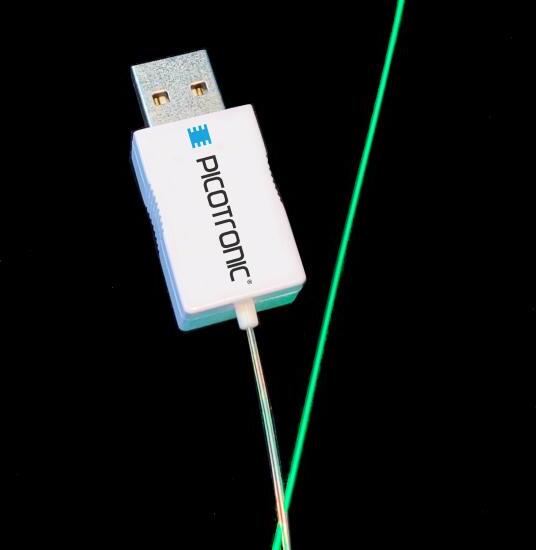

| Beam Shape | Fiber |
| Wavelength | 520nm (grün) |
| Optical Power | 1mW |
| Laser Class | 2M |
| Operating Distance | 5m |
| Optics | Glass lens AR coated |
| Beam Mode | TEM00 |
| Laser technology | Single Mode Diode |
| Size | 39 x 18 x 11mm |
| Material | Aluminium/Plastic |
| Potential of Housing | insulated |
| Lifetime | >5000h |
| Operating Voltage | 4.5 - 5, typ 5V DC |
| Operating Current | 30 - 100, typ 50mA |
| Housing Color | black |
| Connector | CON-USB-A |
| Operating Temperature | -10°C - 50°C |
| Storage Temperature | -20°C - 85°C |
| Weight | 7g |
| Fiber included | Ja |
![]() | LFNT-5 Order no.: 70114683 Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. 22.61 EUR |
| DOE249-635-10-24-F(16X62) Order no.: 70181630 Adjustable isolated DOE laser module, red, 635nm, 10mW, 24V DC, 16x62mm, Class 2M, incl. DOE 249, cross 45° @635nm 302.44 EUR |
| E532-1-3(24x120)APT20-C300-C Order no.: 70114348 focusable isolated Expander lasermodule, green, 532nm, 1mW, 3V DC, 24x120mm, class 2, with DC 2.5mm plug 310.84 EUR |
| DD850-0.5-4(14x33)-AP-CON Order no.: 70149227 isolated Dot lasermodule, red, 850nm, 0.5mW, 4V DC, 14x33mm, class 1 112.52 EUR |
| MCB650-5-3.3(16x61)-PL Order no.: 70116786 modulated isolated cross lasermodule, red, 45°, 650nm, 5mW, 3.3V DC, 16x61mm, 50kHz, class 1 with protection lens 77.23 EUR |
| DOE255-635-5-3(16x90)-NT Order no.: 70111491 DOE Laser Module 635nm, red, 5mW, DOE 65Lines (Square Area, Central Line Thicker) PC 8x1.2mm 25.8° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R255 268.82 EUR |
| DOE249-635-5-5(10x24)-ADJ Order no.: 70134117 DOE Laser Module 635nm, red, 5mW, DOE CROSS - PC - 8x1,2mm 45° @633nm, 5V DC, Ø10x24mm, Laser Class 1M with DOE-DE-R249 104.96 EUR |
| DOE281-635-5-6(10x24)-ADJ Order no.: 70133936 DOE Laser Module 635nm, red, 5mW, DOE 1:11 Dot Line - PMMA - 8x1mm 16.5° @650nm, 5V DC, Ø10x24mm, Laser Class 2M with DOE-DE-R281 104.96 EUR |
| MLB660-50-5(22x105)45DEG-PWL Order no.: 70140361 Line laser, 45°, red, 660nm, 50mW, 5V DC, 22x105 mm, thermal shutdown @50°C, adjustable focus, 5V TTL Modulation, 130mW laser diode 522.13 EUR |
