LE520-30-24(20x118)-F3000-SIDE
Order number: 70142587
Product description:

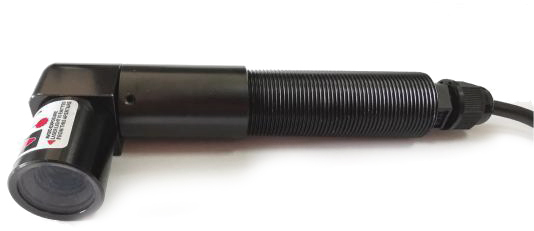

Isolated line laser module, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Focus fixed (3000mm), Cable length 500 mm, Laser class 2, laser head rotated by 90°
• Laser Class 2
• low power consumption
• uniform line thickness
• wood industrie
Product description:
Isolated line laser module, green, 520 nm, 30 mW, 24 V DC, Ø20x118 mm, 110 °, Focus fixed (3000mm), Cable length 500 mm, Laser class 2, laser head rotated by 90°
• Laser Class 2
• low power consumption
• uniform line thickness
• wood industrie
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Line Wavelength 520nm

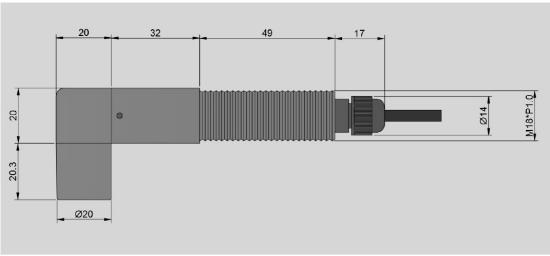

(grün)Optical Power 30mW Laser Class 2 Divergence 0.6mrad Fan Angle 110° Line Thickness <1.5mm@3m Operating Distance 3m Optics Glass lens AR coated Laser technology Single Mode Diode Size Ø20mm 118mm Material aluminium Cable length 500mm Wire type 22AWG, black, 3,6mm Focus fixed (3000mm) Output Aperture 5.5mm Potential of Housing insulated Lifetime >10000h Operating Voltage 23.5 - 25.5, typ 24V DC Operating Current 90 - 150, typ 110mA Housing Color black Operating Temperature -10°C - 50°C Storage Temperature -40°C - 80°C Weight 28g Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max. Stripping of wire 5mm Stripping of cable cover 50mm - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
white 24V DC - Matching accessories
MULTI-MOUNT-20(45x75)
Order no.: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
