MLH980-100-24(22x60)45-PWL-F300

Order number: 70141863

Product description:
isolated Line lasermodule, infrared, modulated, 45°, 980nm, 100mW, 24V DC, 22x60mm, class 3R, with powell-lens

• Operating Voltage 24 V DC
• Laser Class 3R
• uniform line thickness
• Fan angle 45 °
• image processing

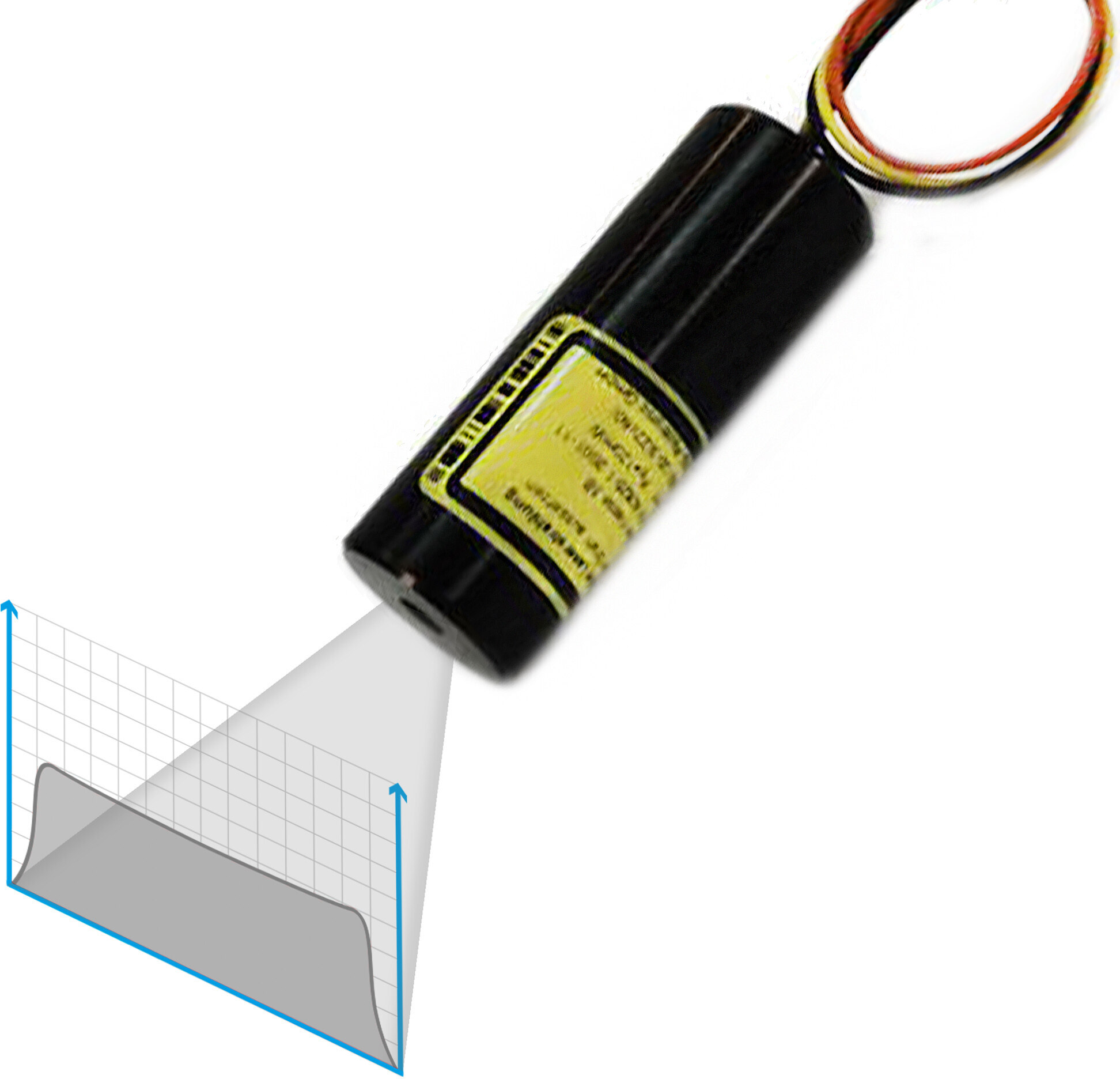

MLH980-100-24(22x60)45-PWL-F300 - Produktbild 1

865,46
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	980nm (infrarot)
Optical Power	100mW
Laser Class	3R
Divergence	1mrad
Fan Angle	45°
Line Thickness	<0.2mm@0.3m
Operating Distance	0.3m
Optics	Glass lens AR coated
Laser technology	Multi Mode Diode
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	fixed (300mm)
Output Aperture	5.5mm
Potential of Housing	insulated
Max. Mod. Frequency	10kHz
Lifetime	>5000h
Operating Voltage	23 - 25.5, typ 24V DC
Operating Current	200 - 700, typ 500mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	53g
Power Supply	Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 24V DC
Modulation: yellow 10kHz
Matching accessories
LFNT-24-C
Order no.: 70115055
Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
31.85 EUR
Downloads
Data sheet Fax order form
