LH660-15-7(12x55)60-F200-PWL-TTL

Order number: 70140972

Product description:
Powell Line lasermodule, red, 60°, 660nm, 15mW, 7V DC, 12x55mm, class 2M, with TTL modulation

• Operating Voltage 3-5V DC
• Laser Class 2M
• low cost
• Fan angle 60 °
• compact size

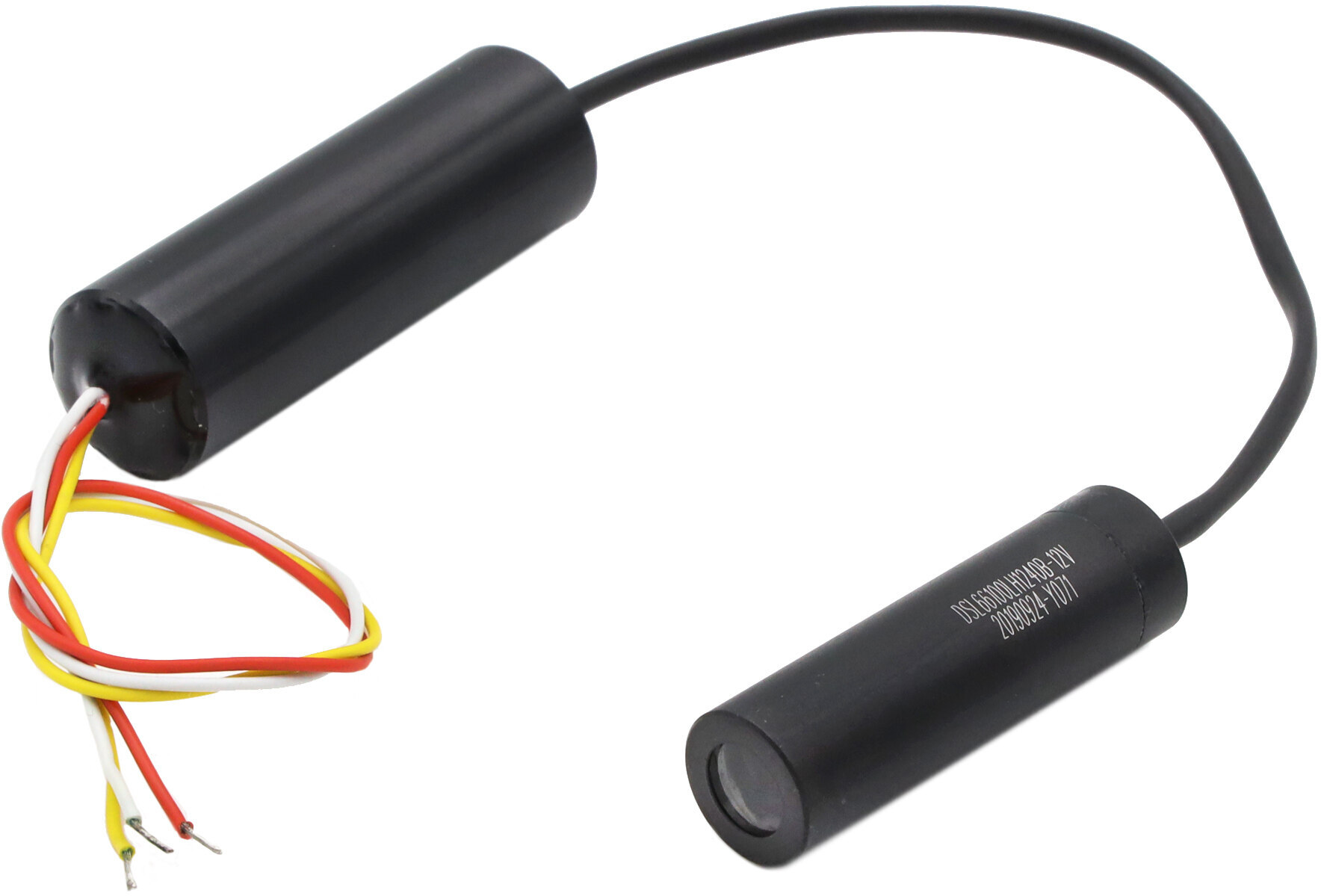

LH660-15-7(12x55)60-F200-PWL-TTL - Hauptbild

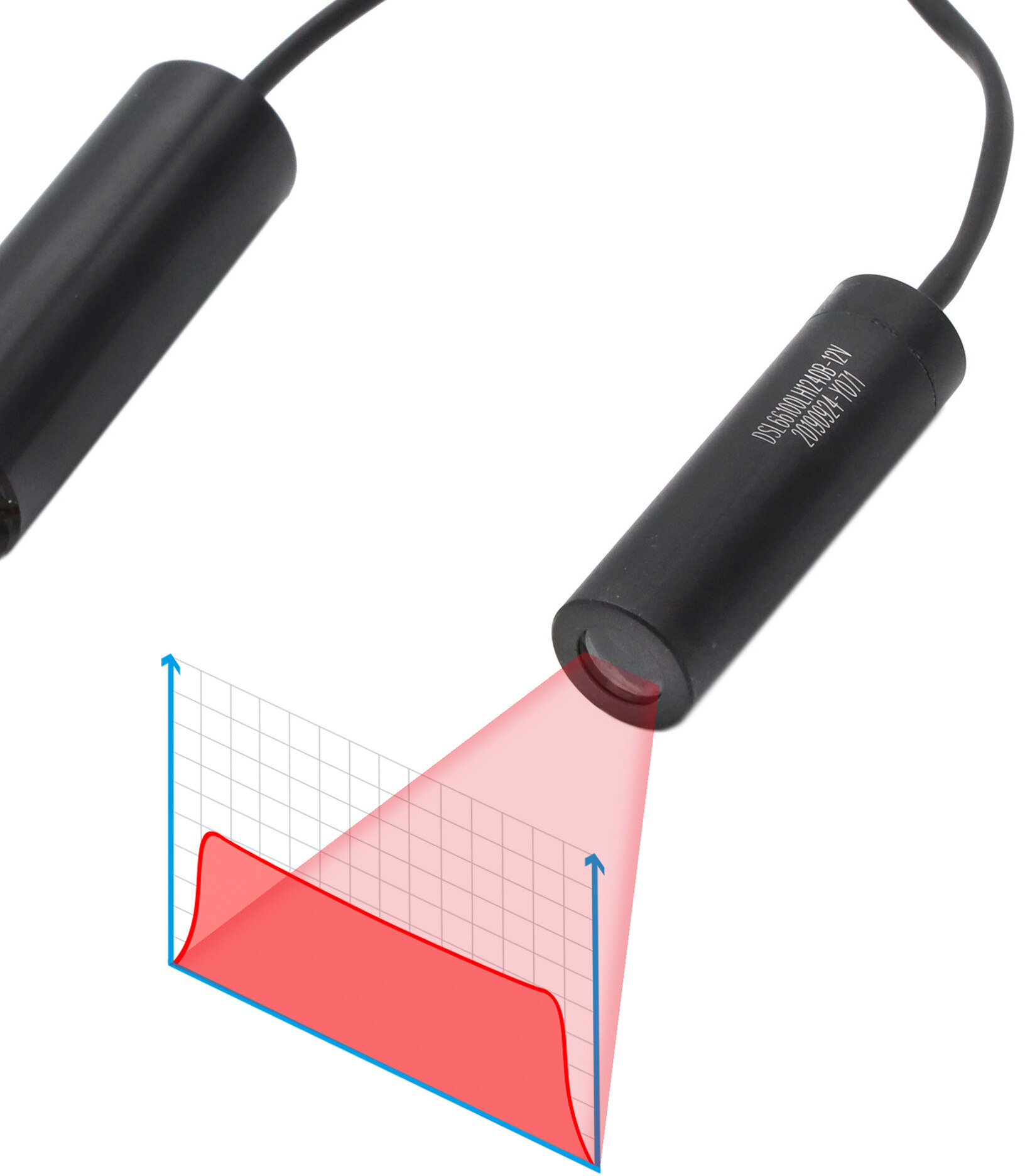

LH660-15-7(12x55)60-F200-PWL-TTL - Produktbild 1
LH660-15-7(12x55)60-F200-PWL-TTL - Rendergrafik
Warnlabel 2M
907,48
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 660nm
    (rot)
    Optical Power 15mW
    Laser Class 2M
    Divergence 1mrad
    Fan Angle 60°
    Line Thickness <40µm@200mm
    Operating Distance 0.2m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø12mm 55mm
    Material aluminium
    Cable length 150mm
    Wire type 24AWG, black, 3mm
    Focus fixed (200mm)
    Output Aperture 6mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 5 - 7, typ 6V DC
    Operating Current 15 - 30, typ 20mA
    Housing Color black
    Operating Temperature -10°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 7.3g
    Stripping of wire 5mm
  • Illustration and technical drawing
  • LH660-15-7(12x55)60-F200-PWL-TTL - Hauptbild
    LH660-15-7(12x55)60-F200-PWL-TTL - Produktbild 1
    LH660-15-7(12x55)60-F200-PWL-TTL - Rendergrafik
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred6V DC
    Modulation:Cable color Modulate: greengreen
  • Matching accessories
  • Mount-12(20x57)Mount-12(20x57)
    Order no.: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
    54.54 EUR
