PLM-1125

Order number: 70140545

Product description:
Bracket for lasermodules with diameter up to D=12.5 mm, packed in a stable box for transportation

80,59
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Material	Stainless Steel
Operating Temperature	-20°C - 40°C
Storage Temperature	-50°C - 50°C
Weight	150g
Total Height (h1)	69mm
Mount Diameter (d1)	Ø12.5mm
Diameter of Base (d2)	Ø35mm
Width of Mount (b)	66mm
Angle of Rotation Alpha (α)	360°
Angle of Rotation Beta (β)	±360°

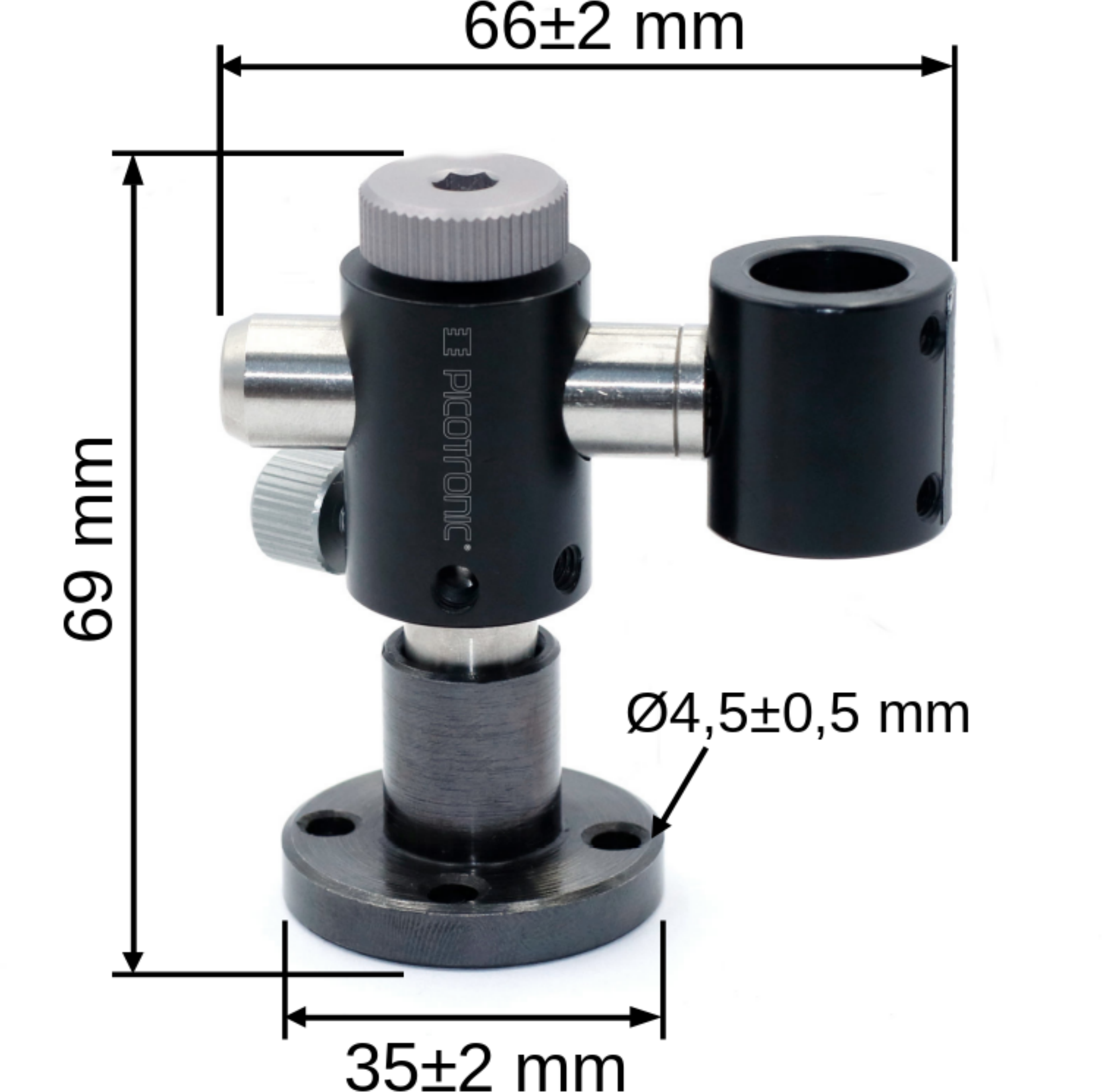

Illustration and technical drawing
Downloads
Data sheet Fax order form
