DB808-120-3(22x65)-NT

Order number: 70140538

Product description:

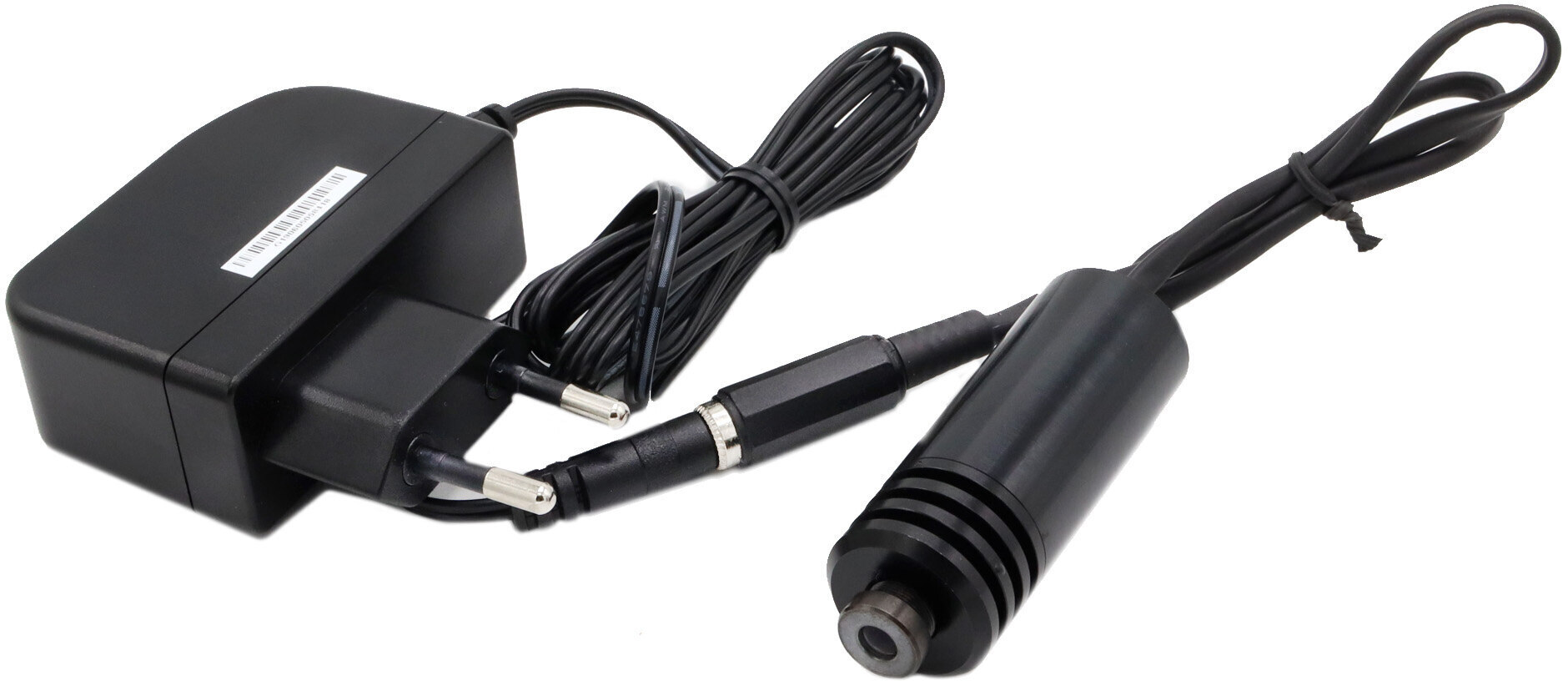

focusable isolated Dot lasermodule, infrared, 808nm, 120mW, 3V DC, 22x65mm, class 3B with power supply

• Operating Voltage 3 V DC
• high power
• Laser Class 3B
• adjustable focus
• compact size

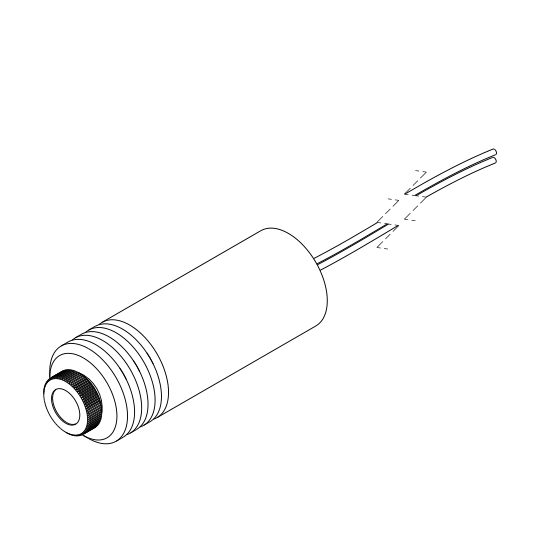

DB808-120-3(22x65)-NT - Zeichnung isometrisch

184,79
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	808nm (infrarot)
Optical Power	120mW
Laser Class	3B
Divergence	0.3mrad
Size of Laserdot	adjustable
Operating Distance	25m
Optics	Glass lens AR coated
Laser technology	diode
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, 0,14mm²
Focus	adjustable
Output Aperture	8mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	125 - 375, typ 250mA
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Power Supply included	Ja
Weight	52g

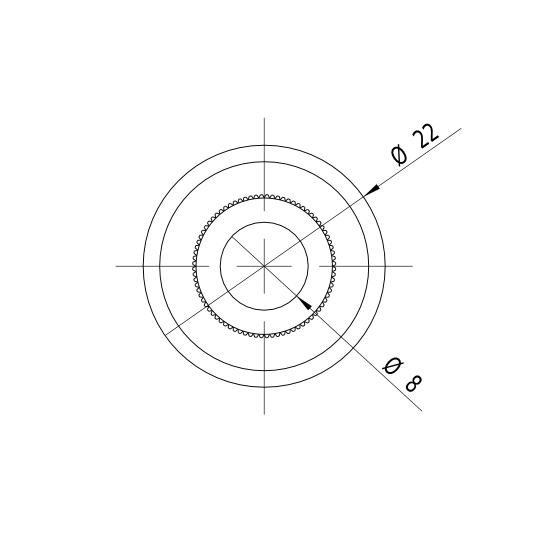

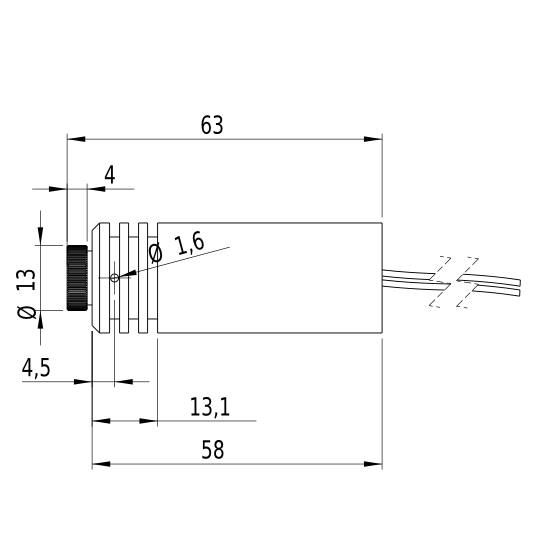

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 3V DC
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
- Spalte einblenden …
Downloads
Data sheet Fax order form
