LFD532-5-3(16x90)-LFBAT

Order number: 70135435

Product description:
Dot lasermodule, green, 532nm, 5mW, 3V DC, 16x90mm, class 3R, incl. battery pack

• image processing
• glas lenses anti reflex coated
• Laser Class 3R
• small laser head

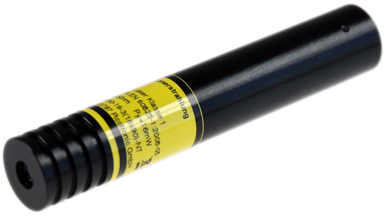

LFD532-5-3(16x90)-LFBAT - Hauptbild

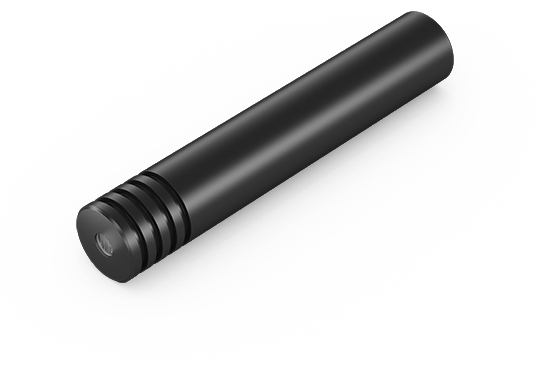

LFD532-5-3(16x90)-LFBAT - Rendergrafik

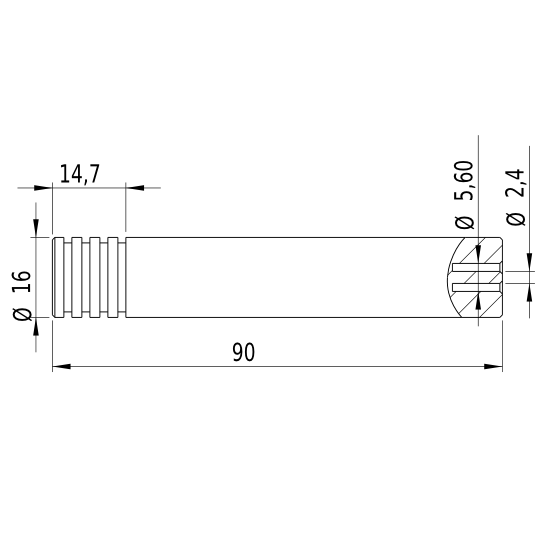

LFD532-5-3(16x90)-LFBAT - Zeichnung

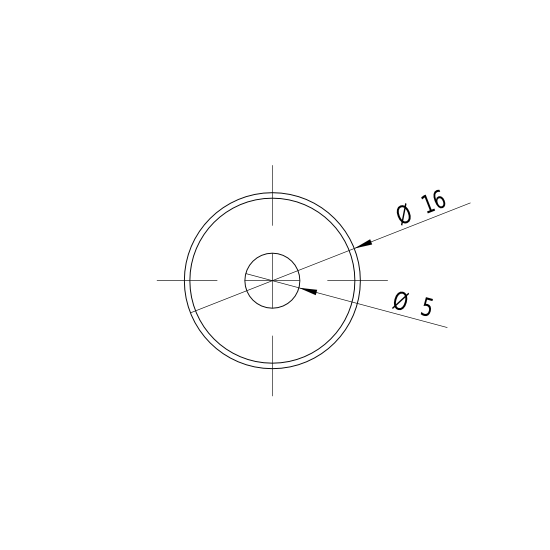

LFD532-5-3(16x90)-LFBAT - Zeichnung Front

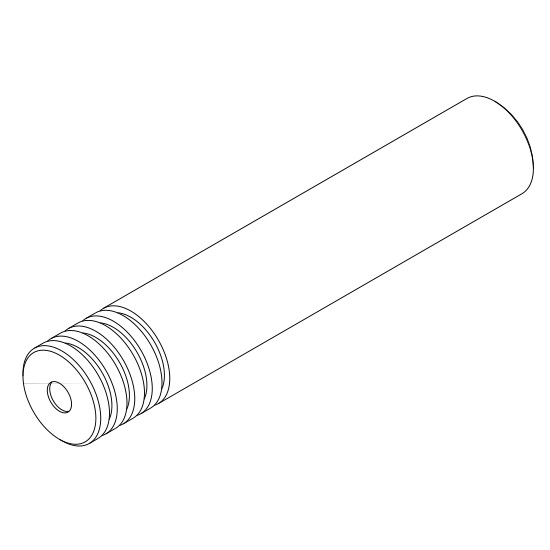

LFD532-5-3(16x90)-LFBAT - Zeichnung isometrisch
Warnlabel 3R
159,58
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength532nm
    (grün)
    Optical Power5mW
    Laser Class3R
    Divergence0.5mrad
    Beam Diameter3mm
    Size of Laserdot<5mm@10m
    Operating Distance150m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologyYVO4+KTP
    Stability+/- 20% @ 15-30°C
    Size
    Materialaluminium
    Cable length220mm
    Focuscollimated
    Output Aperture3mm
    Potential of HousingVDD(+)
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current125 - 375, typ 250mA
    BatteryAA battery, 1.5V
    Connector2.5 mm DC plug (GND pole inner)
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight43g
    Power SupplyBattery Holder without Batteries
  • Illustration and technical drawing
  • LFD532-5-3(16x90)-LFBAT - Hauptbild
    LFD532-5-3(16x90)-LFBAT - Rendergrafik
    LFD532-5-3(16x90)-LFBAT - Zeichnung
    LFD532-5-3(16x90)-LFBAT - Zeichnung Front
    LFD532-5-3(16x90)-LFBAT - Zeichnung isometrisch
    Warnlabel 3R
