LH520-12-5(40x100)120-M12-F3000

Order number: 70134728

Product description:
Isolated Line/Cross lasermodule, green, 120°, 520nm, 12mW, 5V DC, 20x120mm, class 2M, with connector, Line and cross exchangeable

• Operating Voltage 5 V DC
• Isolated housing
• Laser Class 2M
• Protection lens

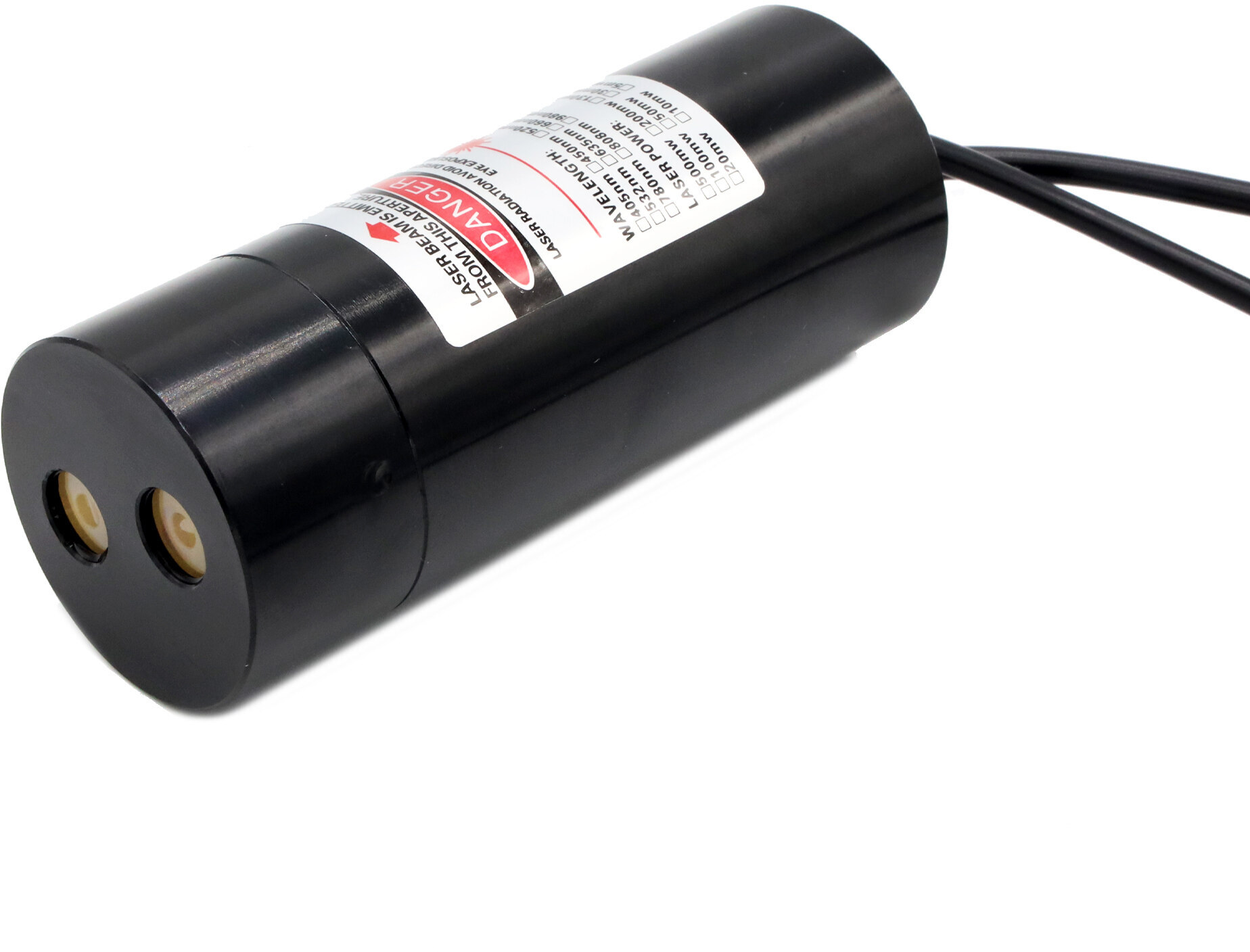

LH520-12-5(40x100)120-M12-F3000 - Produktbild 1
LH520-12-5(40x100)120-M12-F3000 - Hauptbild
LH520-12-5(40x100)120-M12-F3000 - Produktbild 2
Warnlabel 2M
420,08
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 520nm
    (grün)
    Optical Power 12mW
    Laser Class 2M
    Divergence 1mrad
    Fan Angle 120°
    Line Thickness <1.5mm@3m
    Operating Distance 3m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø40mm 100mm
    Material aluminium

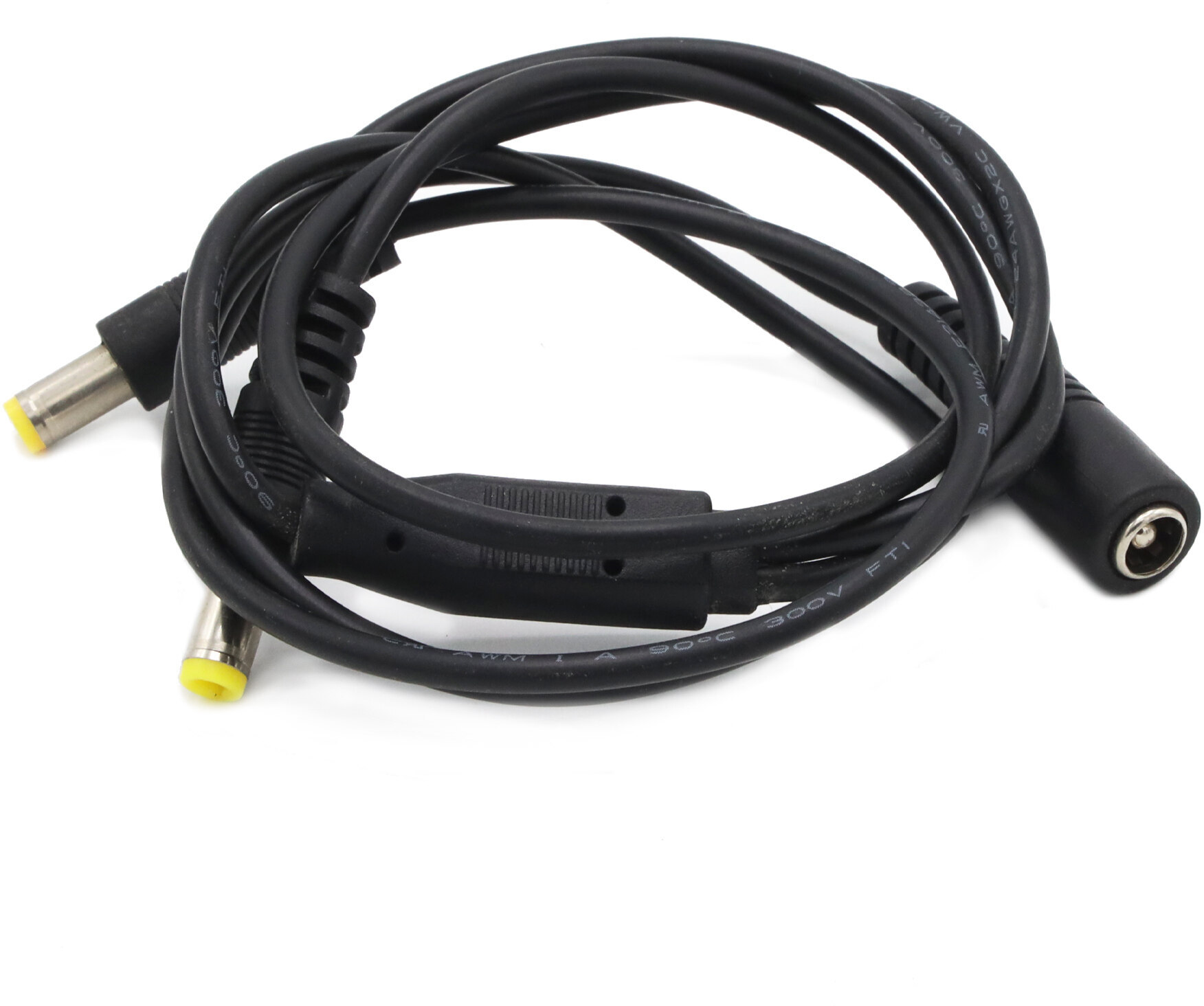

    Cable length 500mm
    Focus fixed (3000mm)
    Output Aperture 5.5mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 120 - 250, typ 180mA
    Housing Color black

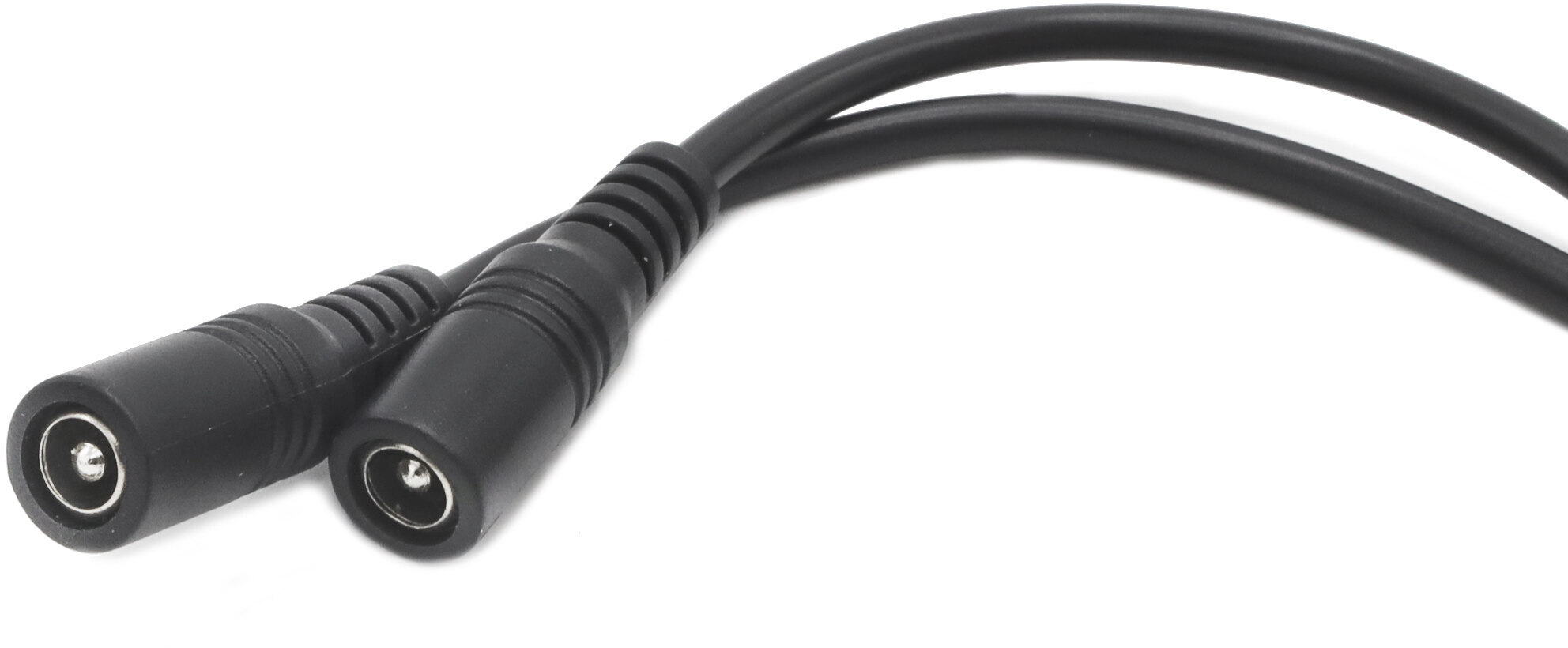

    Connector 2.5 mm DC socket (GND pole inner)
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 203g
    Protection Class IPIP 67
  • Illustration and technical drawing
  • LH520-12-5(40x100)120-M12-F3000 - Produktbild 1
    LH520-12-5(40x100)120-M12-F3000 - Hauptbild
    LH520-12-5(40x100)120-M12-F3000 - Produktbild 2
    Warnlabel 2M
  • Matching accessories
  • LFNT-5LFNT-5
    Order no.: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    20.92 EUR
