MEJ658-100-5(14x45)-AWL-1STG-SW

Order number: 70125771

Product description:
modulated isolated expander laser, red, 658nm, 100mW, 5V DC, 14x45mm, class 3R, FIRST GENERATION, shielded wire

• image processing
• uniform illumination
• modulated
• Protection lens
• compact size

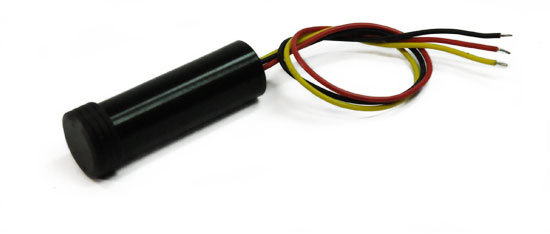

MEJ658-100-5(14x45)-AWL-1STG-SW - Hauptbild
MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung
MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung Front
MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung isometrisch
Warnlabel 3R
193,19
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape expander
    Wavelength 658nm
    (rot)
    Optical Power 100mW
    Laser Class 3R
    Fan Angle 50°
    Size of Laserdot <400mm@0.3m
    Operating Distance 1m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø14mm 45mm
    Material aluminium
    Cable length 450mm
    Wire type RVVP 3x0.2, Shielded Wire
    Focus fixed (300mm)
    Output Aperture 5mm
    Potential of Housing insulated
    Max. Mod. Frequency 200kHz
    Lifetime >10000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 90 - 180, typ 135mA
    Housing Color black
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 18g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire 5mm
    Stripping of cable cover 50mm
  • Illustration and technical drawing
  • MEJ658-100-5(14x45)-AWL-1STG-SW - Hauptbild
    MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung
    MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung Front
    MEJ658-100-5(14x45)-AWL-1STG-SW - Zeichnung isometrisch
    Warnlabel 3R
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: whitewhite5V DC
    Modulation:Cable color Modulate: yellowyellow200kHz
  • Matching accessories
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Order no.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    61.26 EUR
