DI980-25-3(16x50)
Order number: 70103137
Product description:
focusable Dot lasermodule, infrared, 980nm, 25mW, 3V DC, 16x50mm, class 3B
• Operating Voltage 3 V DC
• Laser Class 3B
• adjustable focus
• compact size
• glas lenses anti reflex coated
Product description:
focusable Dot lasermodule, infrared, 980nm, 25mW, 3V DC, 16x50mm, class 3B
• Operating Voltage 3 V DC
• Laser Class 3B
• adjustable focus
• compact size
• glas lenses anti reflex coated
.png "DI980-25-3(16x50) - Zeichnung")

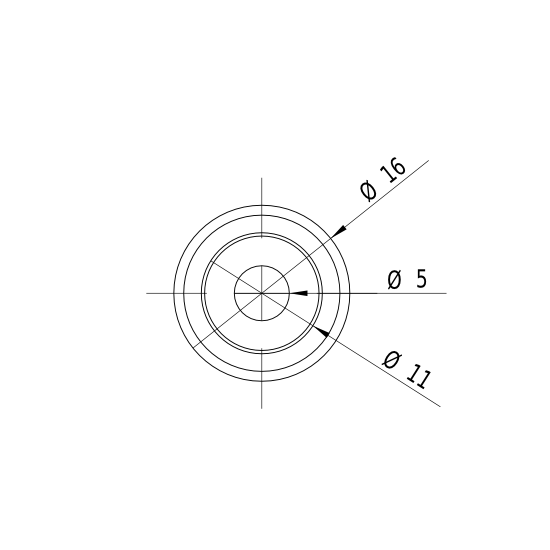

.png "DI980-25-3(16x50) - Zeichnung Front")

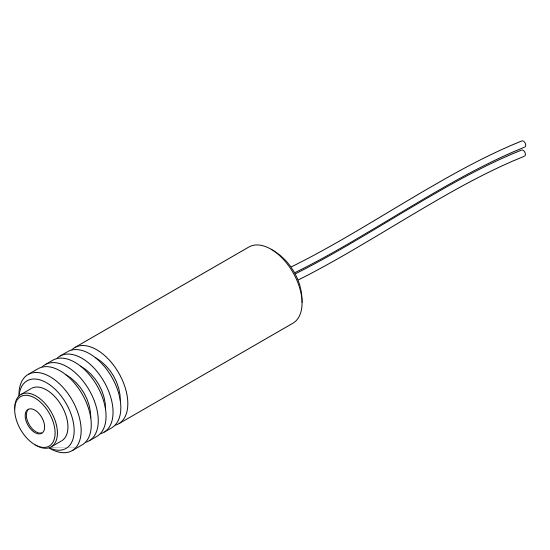

.png "DI980-25-3(16x50) - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 980nm
(infrarot)Optical Power 25mW Laser Class 3B Divergence 1.5mrad Size of Laserdot adjustable Operating Distance 100m Optics Glass lens AR coated Laser technology diode Size Material Bronze Cable length 100mm Wire type 26AWG, 0,14mm² Focus adjustable Output Aperture 5mm Potential of Housing VDD(+) Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 20 - 60, typ 40mA Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 51g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. - Illustration and technical drawing
- Connector pin assignment
Ground:
black GND Positive:
red 3V DC - Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
