DD532-1-3-F(12x50)

Order number: 70125764

Product description:
focusable isolated Dot lasermodule, green, 532nm, 1mW, 3V DC, 12x50mm, class 2

• Laser Class 2M
• Operating Voltage 3 V DC
• compact size
• glas lenses anti reflex coated
• adjustable focus
DD532-1-3-F(12x50) - Hauptbild
DD532-1-3-F(12x50) - Rendergrafik

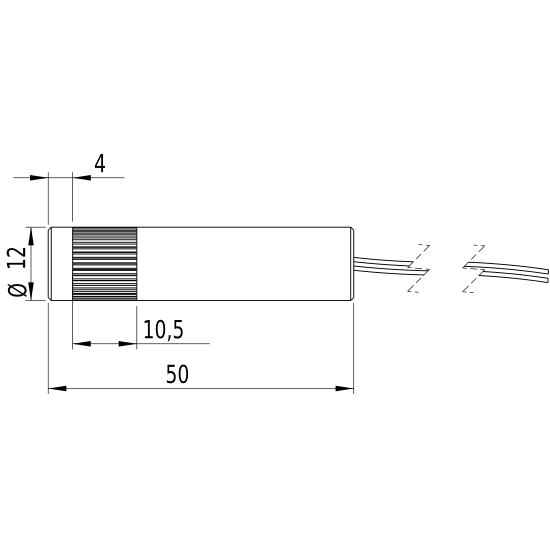

DD532-1-3-F(12x50) - Zeichnung

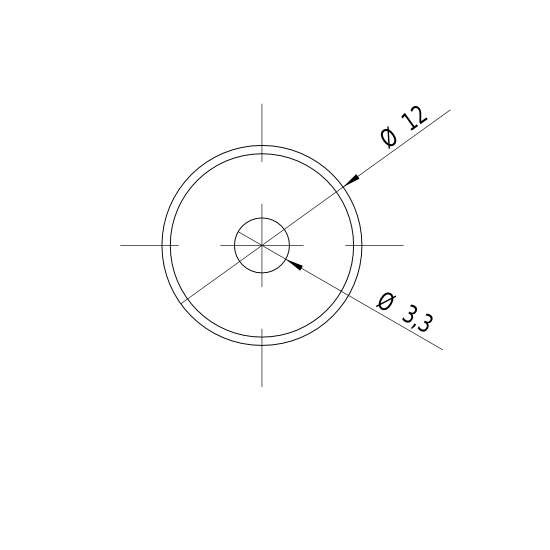

DD532-1-3-F(12x50) - Zeichnung Front

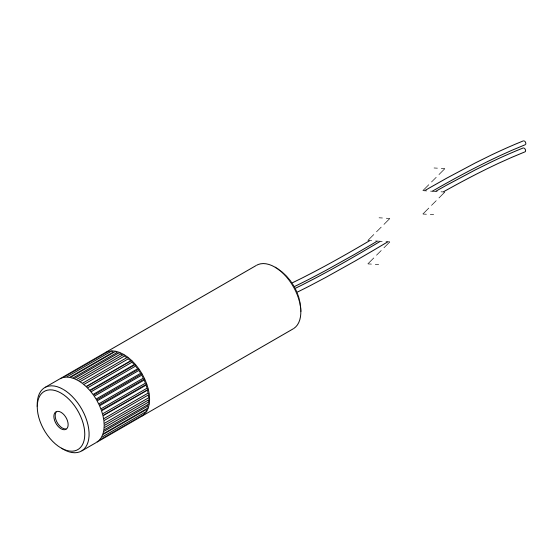

DD532-1-3-F(12x50) - Zeichnung isometrisch
Warnlabel 2M
218,40
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength532nm
    (grün)
    Optical Power1mW
    Laser Class2M
    Divergence0.5mrad
    Size of Laserdotadjustable
    Operating Distance50m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologySolid State (YVO4+KTP)
    Stability+/- 20% @ 15-30°C
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture3.5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current50 - 300, typ 150mA
    Housing Colorblack
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Weight16g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire5mm
    • Illustration and technical drawing
    • DD532-1-3-F(12x50) - Hauptbild
      DD532-1-3-F(12x50) - Rendergrafik
      DD532-1-3-F(12x50) - Zeichnung
      DD532-1-3-F(12x50) - Zeichnung Front
      DD532-1-3-F(12x50) - Zeichnung isometrisch
      Warnlabel 2M
      Connector pin assignment
      Ground:Cable color Ground: blueblueGND
      Positive:Cable color Positive: redred3V DC
    • Matching accessories
    • AM1-1203SZAM1-1203SZ
      Order no.: 70114928
      DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
      16.72 EUR
