DD532-15-230(35x210)-DOE

Order number: 70115291

Product description:
focusable isolated DOE lasermodule, green, 532nm, 15mW, 230V AC, 35x210mm, class 3B

• DOE Laser
• glas lenses anti reflex coated
• with 230V power supply
• high power
• adjustable focus
DD532-15-230(35x210)-DOE - Hauptbild
DD532-15-230(35x210)-DOE - Rendergrafik

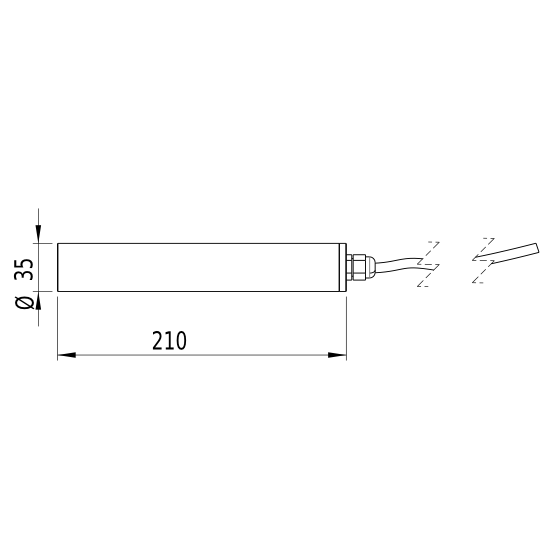

DD532-15-230(35x210)-DOE - Zeichnung

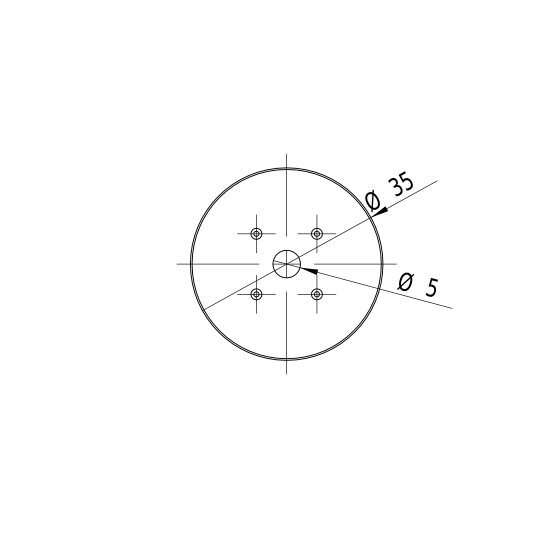

DD532-15-230(35x210)-DOE - Zeichnung Front

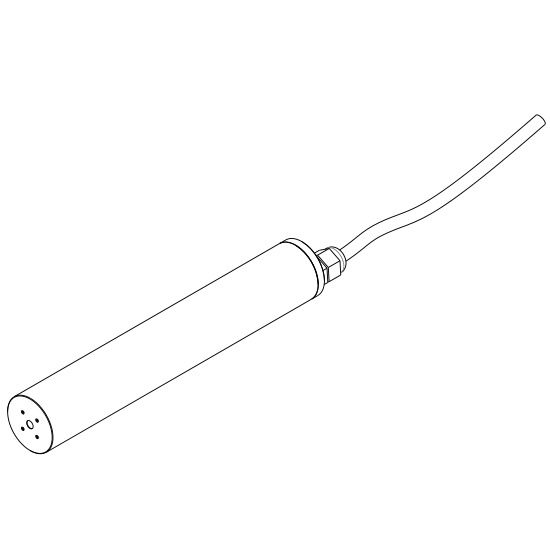

DD532-15-230(35x210)-DOE - Zeichnung isometrisch
Warnlabel 3B
638,57
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 532nm
    (grün)
    Optical Power 15mW
    Laser Class 3B
    Divergence 0.5mrad
    Operating Distance 50m
    Optics Glass lens AR coated
    Beam Mode TEM00
    Laser technology YVO4+KTP
    Stability +/- 20% @ 15-30°C
    Size Ø35mm 210mm
    Material aluminium
    Cable length 1700mm
    Wire type H05VV-F
    Focus adjustable
    Output Aperture 5mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 207 - 253, typ 230V AC
    Operating Current 5 - 15, typ 10mA
    Connector AC CEE 7/7
    Operating Temperature 15°C - 30°C
    Storage Temperature -40°C - 80°C
    Warm up time <15min
    Weight 450g
  • Illustration and technical drawing
  • DD532-15-230(35x210)-DOE - Hauptbild
    DD532-15-230(35x210)-DOE - Rendergrafik
    DD532-15-230(35x210)-DOE - Zeichnung
    DD532-15-230(35x210)-DOE - Zeichnung Front
    DD532-15-230(35x210)-DOE - Zeichnung isometrisch
    Warnlabel 3B
  • Matching accessories
  • NF-S-419424-1-16ANF-S-419424-1-16A
    Order no.: 70115031
    Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
    144.45 EUR
