DA405-0.4-5(12X40)

Order number: 70183788

Product description:
Dot laser module, blue, 405 nm, 0.4 mW, 5 V DC, 12x40 mm, Class 1, focusable

• Operating Voltage 5 V DC
• adjustable focus
• image processing
• small laser head
• Laser Class 1

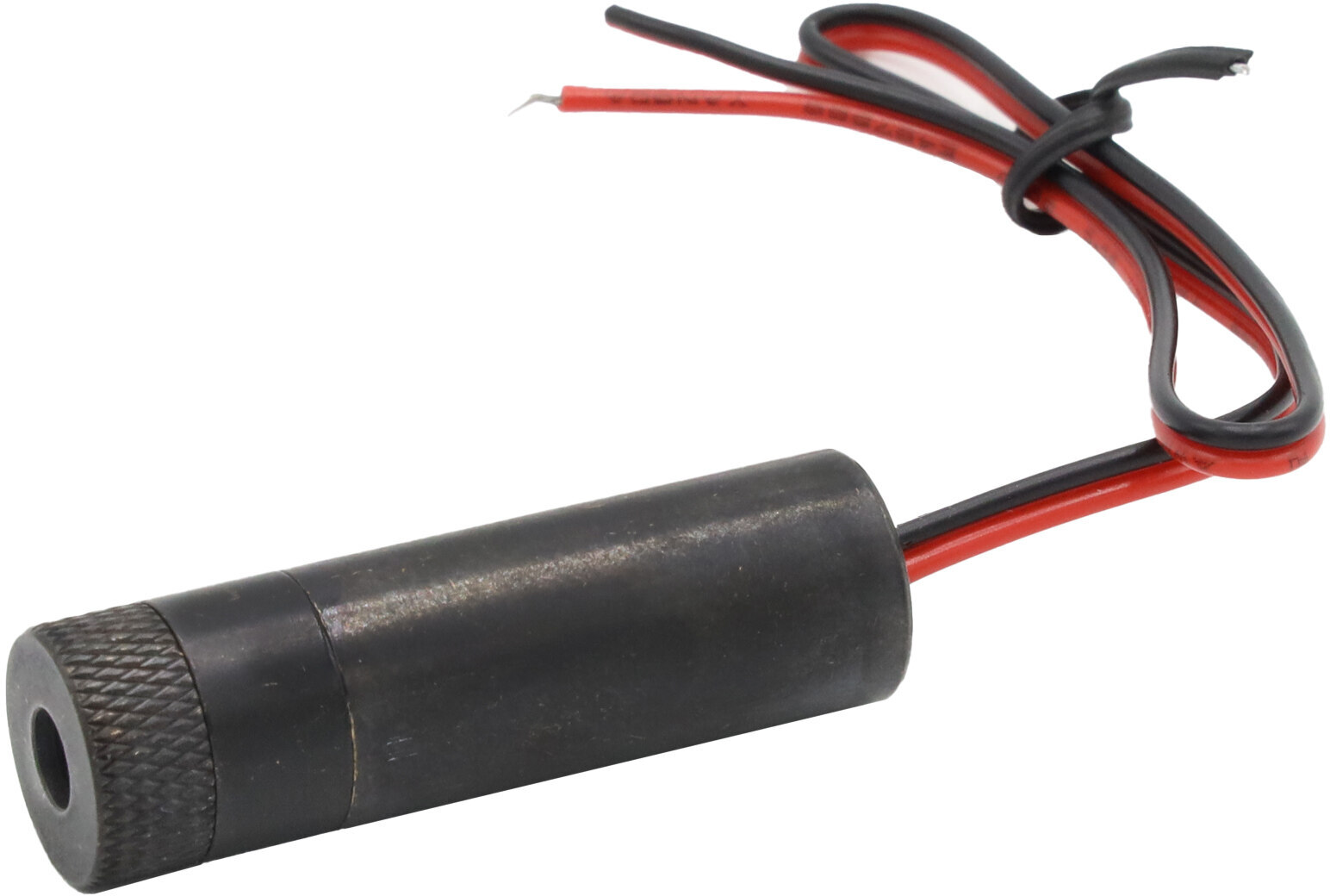

DA405-0.4-5(12X40) - Hauptbild
DA405-0.4-5(12X40) - Rendergrafik
Warnlabel 1
344,45
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength405nm
    (blau)
    Optical Power0.4mW
    Laser Class1
    Divergence0.2mrad
    Beam Diameter4mm
    Size of Laserdot4.5@5m
    Operating Distance5m
    OpticsGlass lens AR coated
    Size
    Materialaluminium
    Cable length200mm
    Wire type22AWG, black, 3,6mm
    Focusadjustable
    Output Aperture4mm
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current25 - 75, typ 50mA
    Housing Colorblack
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight18g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire5mm
    • Illustration and technical drawing
    • DA405-0.4-5(12X40) - Hauptbild
      DA405-0.4-5(12X40) - Rendergrafik
      Warnlabel 1
      Connector pin assignment
      Ground:Cable color Ground: blackblackGND
      Positive:Cable color Positive: redred5V DC
    • Matching accessories
    • LFNT-5LFNT-5
      Order no.: 70114683
      Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
      22.61 EUR
