DOE245-532-5-3(16x90)-NT

Numéro de commande: 70111033

Description du produit:
DOE Laser Module 532nm, green, 5mW, DOE CROSS - PC - 8x1,2mm 10° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R245

• DOE Laser
• image processing
• Laser Class 2M
• compact size
DOE245-532-5-3(16x90)-NT - Produktbild 1

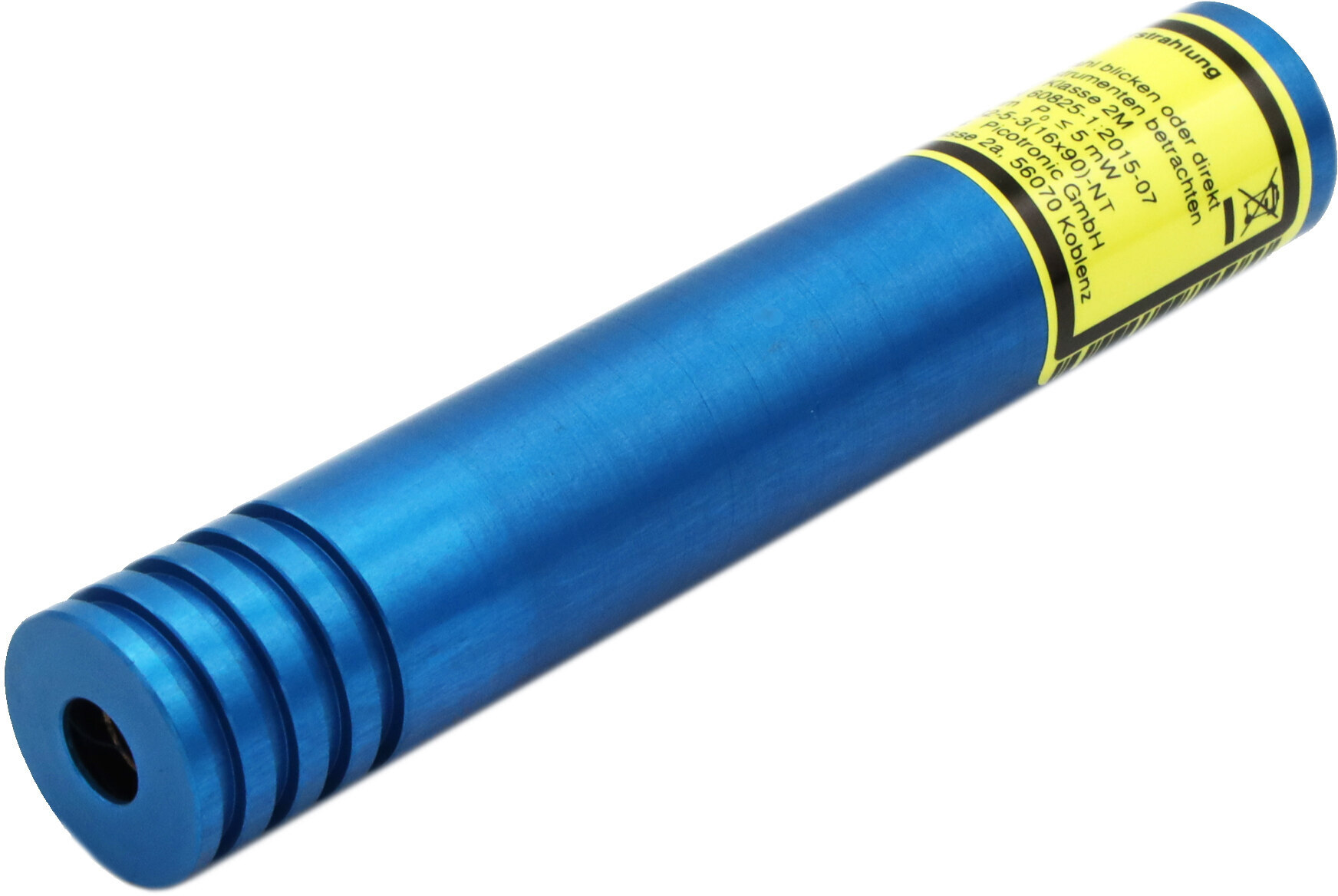

DOE245-532-5-3(16x90)-NT - Hauptbild
DOE245-532-5-3(16x90)-NT - Rendergrafik
Warnlabel 2M
DOE245-532-5-3(16x90)-NT - DOE-Vermaßungsskizze
344,45
Tous les prix en Euros, hors taxes, et les frais d'expédition.

Nous n'avons rien à cacher en matière de prix!

Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!

Unité: 10501002505001000
Réduction: 10%15%20%25%30%35%
  • Spécification
  • Warranty 1Jahre
    Beam Shape DOE
    Wavelength 532nm
    (grün)
    Optical Power 5mW
    Laser Class 2M
    Divergence 0.5mrad
    Fan Angle 10°
    Line Thickness 3mm@5m
    Operating Distance 10m
    Optics acryl lense
    Laser technology Solid State (YVO4+KTP)
    Stability +/- 20% @ 15-30°C
    Protection Lens Ja
    Size Ø16mm 90mm
    Material aluminium
    Cable length 1360mm
    Focus fixed (5.0m)
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 125 - 375, typ 250mA
    Housing Color cyan
    Connector 2.5 mm DC plug (GND pole inner)
    Operating Temperature 15°C - 30°C
    Storage Temperature -40°C - 80°C
    Warm up time <15min
    Power Supply included Ja
    Weight 43g
    Power Supply Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
    Alpha 10°
    a 18mm
    Diameter (without holder) 8mm
    Material PC
  • Illustration et dessin technique
  • DOE245-532-5-3(16x90)-NT - Produktbild 1
    DOE245-532-5-3(16x90)-NT - Hauptbild
    DOE245-532-5-3(16x90)-NT - Rendergrafik
    Warnlabel 2M
    DOE245-532-5-3(16x90)-NT - DOE-Vermaßungsskizze
