PICO-LPG-730-1085
Numéro de commande: 70159325
Description du produit:

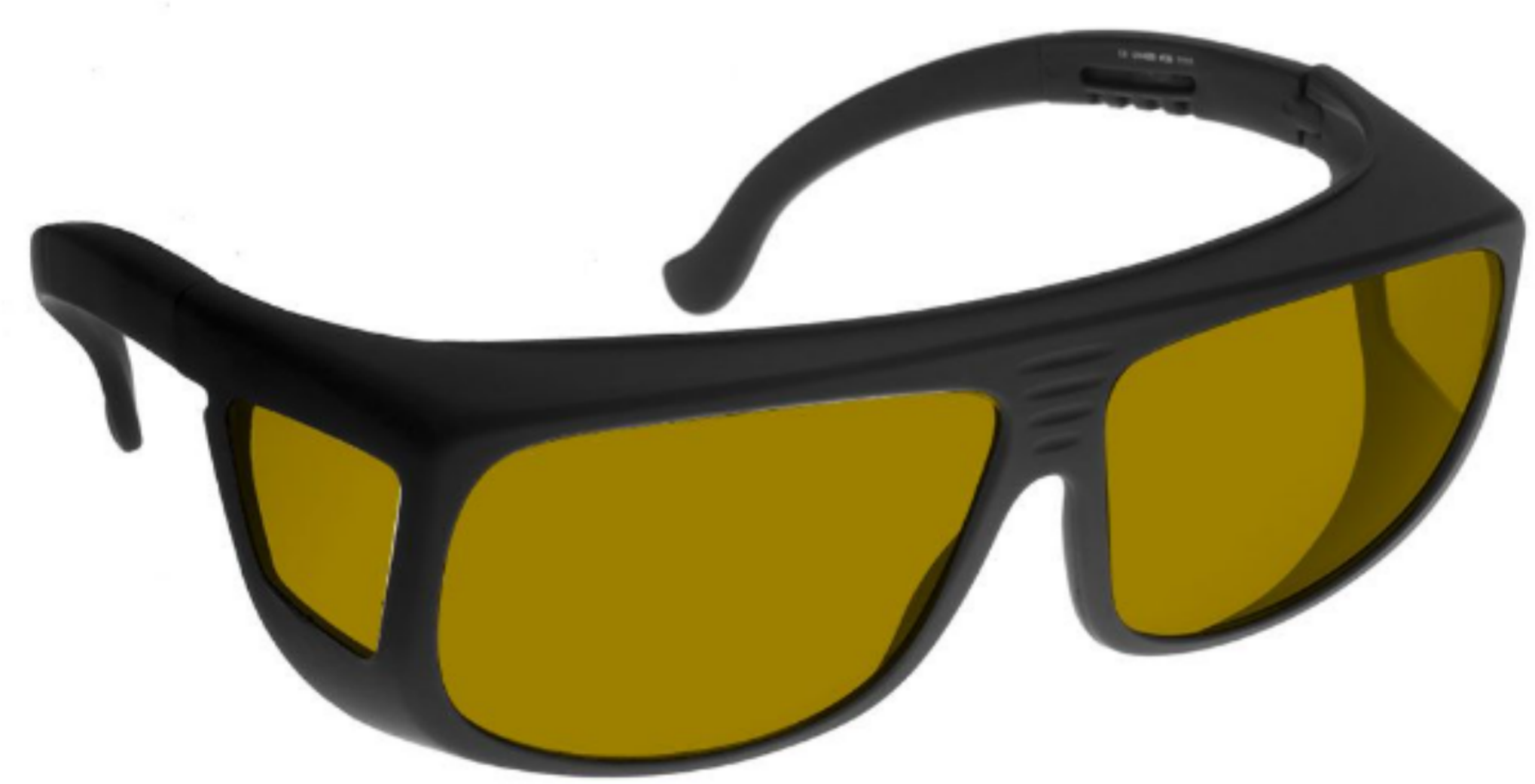

Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified EN 207:2009,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
● Wavelength: 190-315nm, lb rating D LB8 + R LB4 ● Wavelength: >315-430nm, lb rating D LB4 + IR LB6 ● Wavelength: 730-1085, lb rating DIR LB5 ● Wavelength: 745-765, lb rating DIR LB6 ● Wavelength: 750-760, lb rating DIR LB6 + IRM LB7 ● Wavelength: 1064, lb rating DIR LB6 + IRM LB7
* Especially suitable for: Laser INFRARED 730nm - 1085nm
Description du produit:
Laser Safety Eyewear, complete protection, universal fit, comfortable fit over prescription glasses or alone, adjustable temples, side-shields for wide field of view, CE Certified EN 207:2009,Fitover - 144mm x 145mm x 50mm, with Picotronic Logo imprint
● Wavelength: 190-315nm, lb rating D LB8 + R LB4 ● Wavelength: >315-430nm, lb rating D LB4 + IR LB6 ● Wavelength: 730-1085, lb rating DIR LB5 ● Wavelength: 745-765, lb rating DIR LB6 ● Wavelength: 750-760, lb rating DIR LB6 + IRM LB7 ● Wavelength: 1064, lb rating DIR LB6 + IRM LB7
* Especially suitable for: Laser INFRARED 730nm - 1085nm
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Size 145 x 144 x 50mm Material Polymer Housing Color noir Operating Temperature -50°C - 85°C Storage Temperature -50°C - 80°C Weight 10g Luminous transmittance 0.36% LB Rating 190-315 D LB8 + R LB4
>315-430 D LB4 + IR LB6
730-1085 DIR LB5
745-765 DIR LB6
750-760 D LB6 + IRM LB7
1064 D LB6 + IRM LB7Lens Color Grün - Illustration et dessin technique
