LC650-3-5(9X25)-PL
isolated Line lasermodule, red, 90°, 650nm, 3mW, 5V DC, 9x25mm, class 1
DOE252-635-5-6(10x24)-ADJ-NT
Numéro de commande: 70144765
Description du produit:

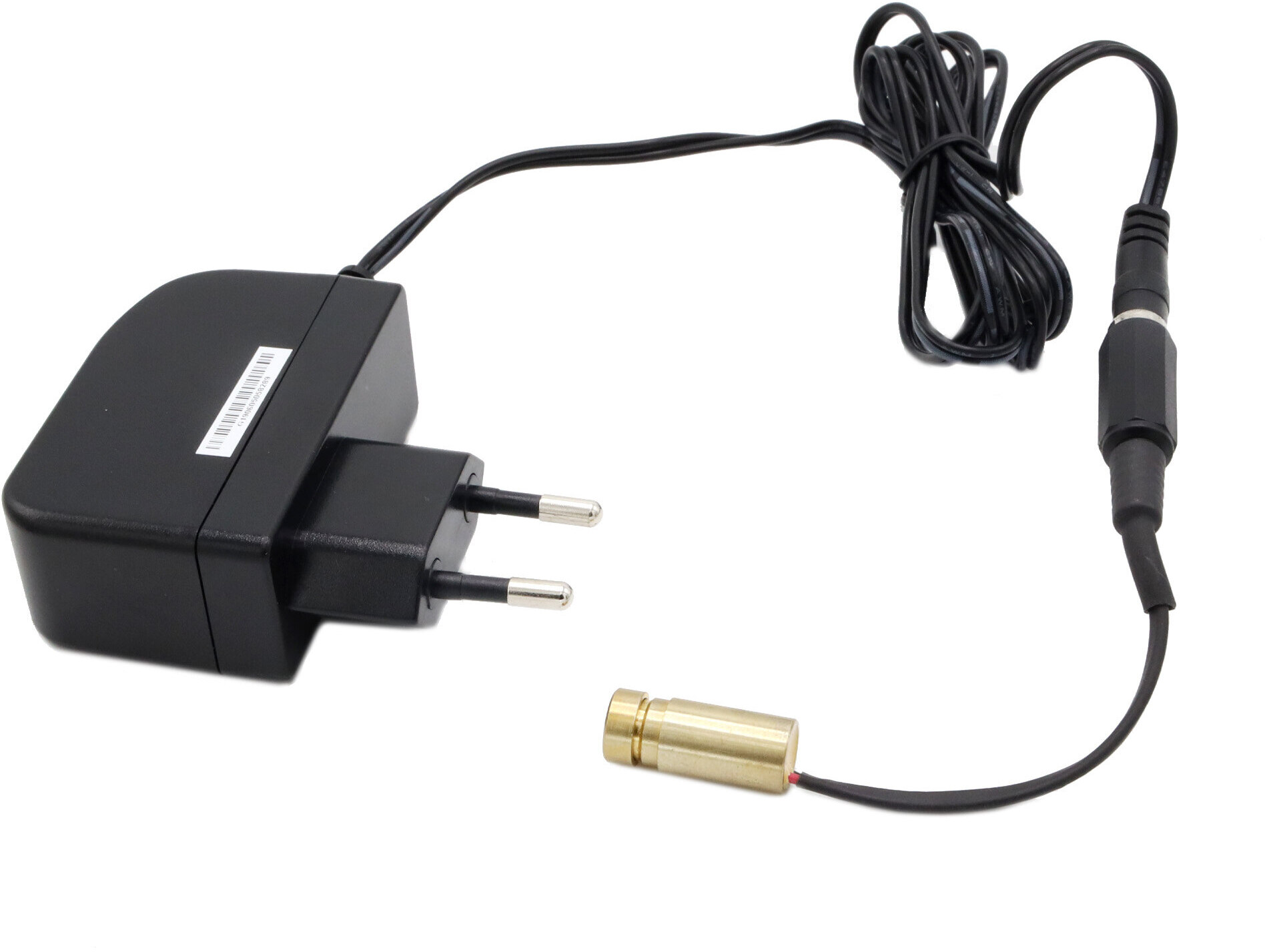

DOE Laser Module 635nm, red, 5mW,DOE 5 LINES - PC - 8x1,2mm 24.1° @635nm, 5V DC, Ø10x24mm, Laser Class 2M with DOE-DE-R252 , incl. power supply
Description du produit:
DOE Laser Module 635nm, red, 5mW,DOE 5 LINES - PC - 8x1,2mm 24.1° @635nm, 5V DC, Ø10x24mm, Laser Class 2M with DOE-DE-R252 , incl. power supply
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape DOE Wavelength 635nm
(rot)Optical Power 5mW Laser Class 2M Divergence 1mrad Optics acryl lense Laser technology Single Mode Diode Protection Lens Ja Size Material Laiton Cable length 100mm Wire type 26AWG, 0,14mm² Focus réglable Output Aperture 6mm Potential of Housing VDD(+) Lifetime >3000h Operating Voltage 3 - 6, typ 5V DC Operating Current 15 - 70, typ 30mA Housing Color brass Connector 2.1 mm DC socket (GND inner) Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Power Supply included Ja Weight 8.5g Power Supply Power Supply, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max, Connector 2,1x5,5x9,5mm center negative Alpha 24° Beta 17.2° Gamma 4.3° Delta 17.2° Diameter (without holder) 8mm Material PC - Illustration et dessin technique
- Affectation des connecteurs
Dimensions:
noir GND Positif:
rouge 5V DC - Accessoires adaptés
AM1-1203SZ
Référence: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
- Contact
