LH850-30-24(20x80)-F3000-PWL-M12

Numéro de commande: 70134940

Description du produit:
isolated Line lasermodule, red, 90°, 850nm, 30mW, 24V DC, 20x80mm, class 3R, with connector M12 without cable, uniform line distribution with powell lens

• Operating Voltage24 V DC
• Isolated housing
• Laser Class 3R
• small laser head
• Protection lens

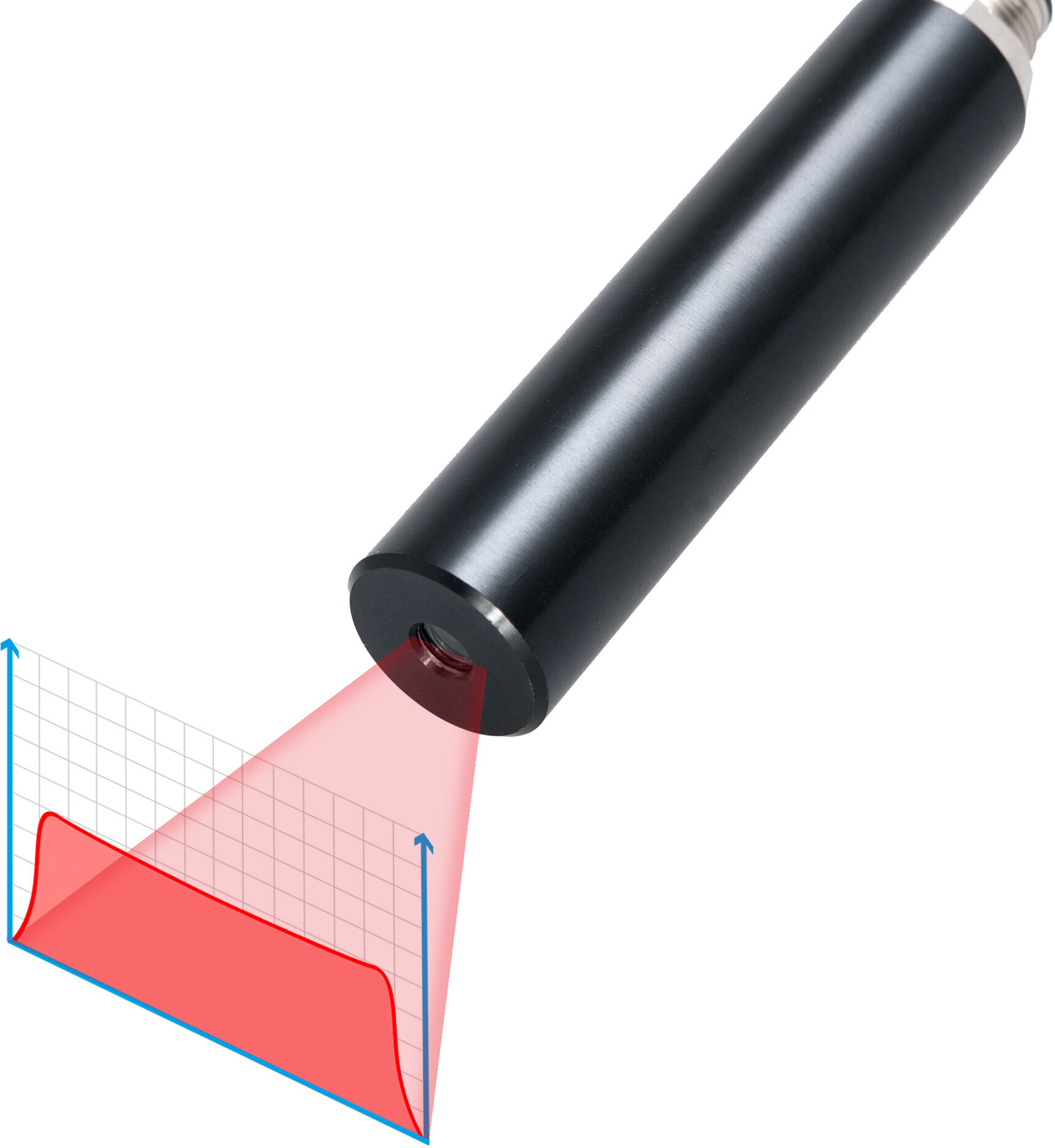

LH850-30-24(20x80)-F3000-PWL-M12 - Hauptbild
LH850-30-24(20x80)-F3000-PWL-M12 - Produktbild 1
Warnlabel 3R
756,22
Tous les prix en Euros, hors taxes, et les frais d'expédition.

Nous n'avons rien à cacher en matière de prix!

Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!

Unité: 10501002505001000
Réduction: 10%15%20%25%30%35%
  • Spécification
  • Warranty 1Jahre
    Beam Shape Ligne
    Wavelength 850nm
    (infrarot)
    Optical Power 30mW
    Laser Class 3R
    Divergence 1mrad
    Fan Angle 90°
    Line Thickness <1.5mm@3m
    Operating Distance 3m
    Optics Powell Lens
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø20mm 80mm
    Material aluminium
    Focus fixed (3000mm)
    Output Aperture 5.5mm
    Potential of Housing isolé
    Lifetime >10000h
    Operating Voltage 21.6 - 26.4, typ 24V DC
    Operating Current 200 - 280, typ 240mA
    Housing Color noir
    Connector CON-M12
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 52g
    Protection Class IPIP 64
  • Illustration et dessin technique
  • LH850-30-24(20x80)-F3000-PWL-M12 - Hauptbild
    LH850-30-24(20x80)-F3000-PWL-M12 - Produktbild 1
    Warnlabel 3R
  • Accessoires adaptés
  • MULTI-MOUNT-20(45x75)MULTI-MOUNT-20(45x75)
    Référence: 70112511
    Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
    61.26 EUR
