LH658-30-24(20x80)-F3000-PWL-M12
Numéro de commande: 70130492
Description du produit:

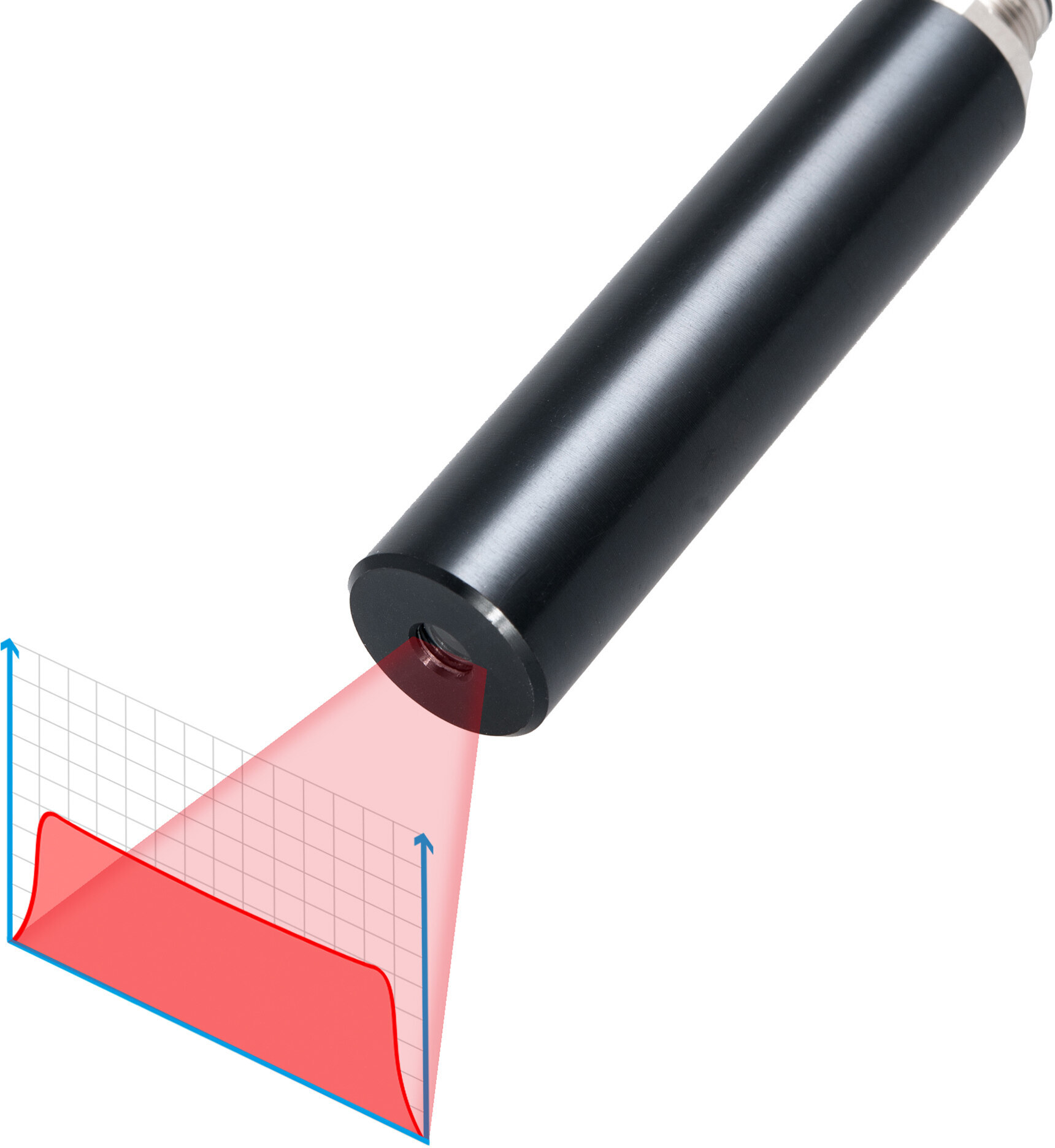

isolated Line lasermodule, red, 90°, 658nm, 30mW, 24V DC, 20x80mm, class 2M, with connector M12 without cable, uniform line distribution with powell lens
• Operating Voltage24 V DC
• Isolated housing
• Laser Class 2M
• small laser head
• Protection lens
Description du produit:
isolated Line lasermodule, red, 90°, 658nm, 30mW, 24V DC, 20x80mm, class 2M, with connector M12 without cable, uniform line distribution with powell lens
• Operating Voltage24 V DC
• Isolated housing
• Laser Class 2M
• small laser head
• Protection lens
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 658nm
(rot)Optical Power 30mW Laser Class 2M Divergence 1mrad Fan Angle 90° Line Thickness <1.5mm@3m Operating Distance 3m Optics Powell Lens Laser technology Single Mode Diode Protection Lens Ja Size Ø20mm 80mm Material aluminium Focus fixed (3000mm) Output Aperture 5.5mm Potential of Housing isolé Lifetime >10000h Operating Voltage 21.6 - 26.4, typ 24V DC Operating Current 10 - 40, typ 25mA Housing Color noir Connector CON-M12 Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 52g Protection Class IPIP 64 - Illustration et dessin technique
- Accessoires adaptés
MULTI-MOUNT-20(45x75)
Référence: 70112511
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
66.30 EUR- Downloads
