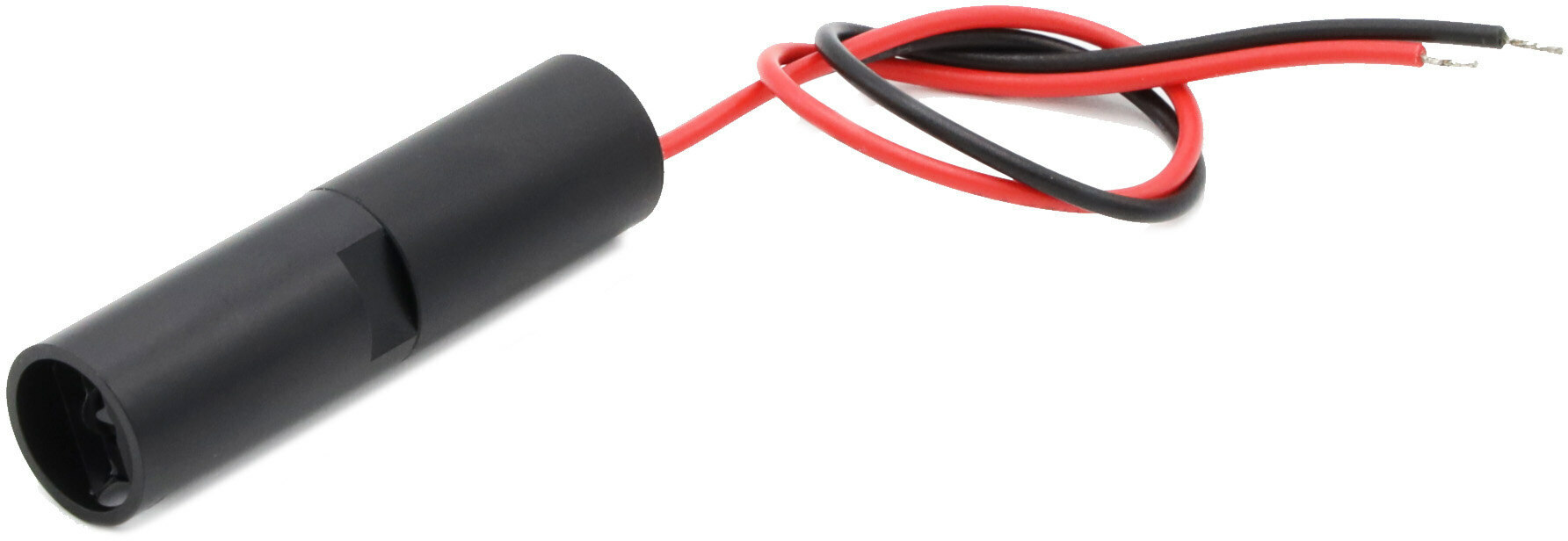

L520-5-3(10x38)-F5000-C127
Numéro de commande: 70129601
Description du produit:
Isolierter Linienlaser, 520nm, grün, 5mW, 3-7V DC, 90°, 10x38mm, Laserklasse 1M
• Direct green 520nm
• compact size
• wide temperature range
• 3-7V DC
Description du produit:
Isolierter Linienlaser, 520nm, grün, 5mW, 3-7V DC, 90°, 10x38mm, Laserklasse 1M
• Direct green 520nm
• compact size
• wide temperature range
• 3-7V DC
Nous n'avons rien à cacher en matière de prix!
Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!
| Unité: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Réduction: | 10% | 15% | 20% | 25% | 30% | 35% |
- Spécification
Warranty 1Jahre Beam Shape Ligne Wavelength 520nm
(grün)Optical Power 5mW Laser Class 1M Fan Angle 90° Line Thickness 3mm@5m Operating Distance 5m Optics Lentille de verre revêtue d'AR Laser technology Single Mode Diode Size Material aluminium Cable length 127mm Wire type 26AWG, UL, isolated Focus fixed (5.0m) Potential of Housing isolé Lifetime >10000h Operating Voltage 3 - 7, typ 3V DC Operating Current 50 - 120, typ 100mA Housing Color noir Operating Temperature -20°C - 60°C Storage Temperature -20°C - 85°C Weight 5.2g Stripping of wire 3mm - Illustration et dessin technique
- Affectation des connecteurs
Dimensions:
noir GND Positif:
rouge 3V DC - Accessoires adaptés
AM1-1203SZ
Référence: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
