LD520-5-3(12x60)-QCW-F1300

Numéro de commande: 70122497

Description du produit:
Line lasermodule, green, 90°, 520nm, 5mW, 3V DC, 12x60mm, class 1, line thickness <1mm@1,3m, internal modulation 1kHz

• Operating Voltage 3 V DC
• Laser Class 1
• uniform illumination
• fixed focus
• Fan angle 90 °
LD520-5-3(12x60)-QCW-F1300 - Hauptbild
LD520-5-3(12x60)-QCW-F1300 - Rendergrafik

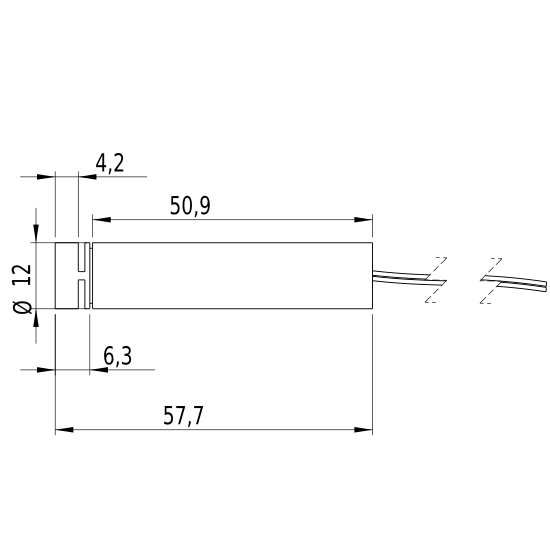

LD520-5-3(12x60)-QCW-F1300 - Zeichnung
LD520-5-3(12x60)-QCW-F1300 - Zeichnung Front

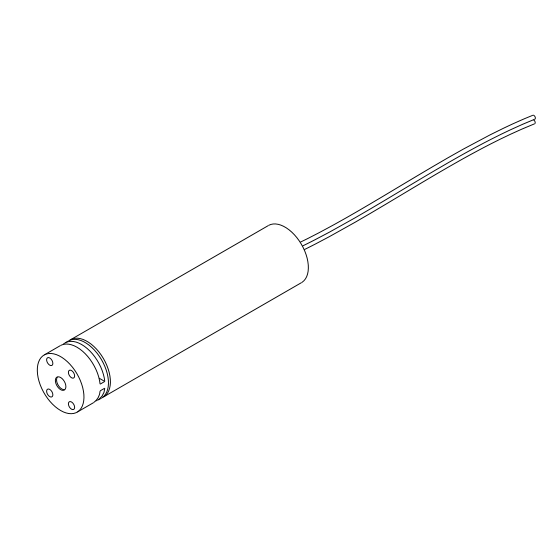

LD520-5-3(12x60)-QCW-F1300 - Zeichnung isometrisch
Warnlabel 1
226,81
Tous les prix en Euros, hors taxes, et les frais d'expédition.

Nous n'avons rien à cacher en matière de prix!

Vous vous étonnez de trouver ici des prix communiqués ouvertement ? Vous obtenez uniquement des offres individuelles auprès d'autres fournisseurs ? Notre évaluation des prix est également basée sur la transparence, la confiance et le même traitement de tous nos clients – et vous avez la possibilié de comparer!

Unité: 10501002505001000
Réduction: 10%15%20%25%30%35%
  • Spécification
  • Warranty 1Jahre
    Beam Shape Ligne
    Wavelength 520nm
    (grün)
    Optical Power 5mW
    Laser Class 1
    Divergence 0.5mrad
    Fan Angle 90°
    Line Thickness <1mm@1.3m
    Operating Distance 1.3m
    Optics Lentille de verre revêtue d'AR
    Beam Mode TEM00
    Laser technology Single Mode Diode
    Stability +/- 3% @ -10-50°C
    Size Ø12mm 60mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (1300mm)
    Output Aperture 3mm
    Potential of Housing isolé
    Lifetime >6000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 50 - 150, typ 100mA
    Housing Color noir
    Operating Temperature -10°C - 60°C
    Storage Temperature -40°C - 80°C
    Weight 27g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    internal modulation frequency 1kHz
    Stripping of wire 5mm
  • Illustration et dessin technique
  • LD520-5-3(12x60)-QCW-F1300 - Hauptbild
    LD520-5-3(12x60)-QCW-F1300 - Rendergrafik
    LD520-5-3(12x60)-QCW-F1300 - Zeichnung
    LD520-5-3(12x60)-QCW-F1300 - Zeichnung Front
    LD520-5-3(12x60)-QCW-F1300 - Zeichnung isometrisch
    Warnlabel 1
    Affectation des connecteurs
    Dimensions:Cable color Ground: bluebleuGND
    Positif:Cable color Positive: redrouge3V DC
  • Accessoires adaptés
  • Mount-12(20x57)Mount-12(20x57)
    Référence: 70113686
    Mount for Lasermodul 12mm, Diameter 20mm, Height 57mm
