MH808-300-24(16X70)

Número de pedido: 70181654

Descripción del producto:
Modulated Isolated Dot Laser Module, infrared, 808nm, 350mW, 5V DC, 22x65mm, Class 3B, Focus 1000mm

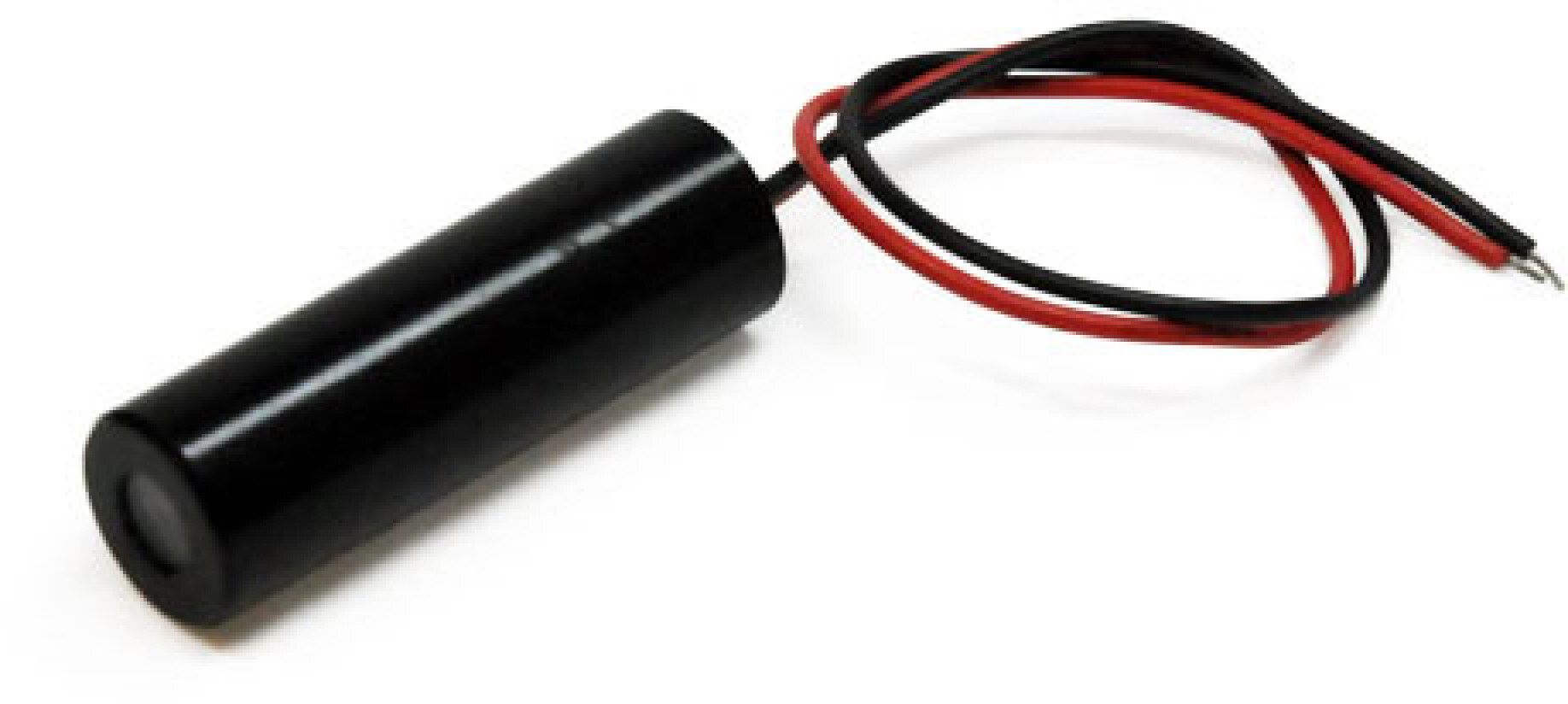

MH808-300-24(16X70) - Hauptbild
Warnlabel 3B
320,00
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Punto
    Wavelength 808nm
    (infrarot)
    Optical Power 300mW
    Laser Class 3B
    Divergence 1mrad
    Operating Distance 1m
    Optics Lente de cristal con recubrimiento AR
    Laser technology diode
    Size Ø16mm 70mm
    Material aluminium
    Cable length 200mm
    Wire type 26AWG, 0,14mm²
    Focus fijo
    Output Aperture 3.5mm
    Potential of Housing aislado
    Lifetime >8000h
    Operating Voltage 23.3 - 24.7, typ 24V DC
    Operating Current 100 - 200, typ 150mA
    Housing Color negro
    Operating Temperature -10°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 35g
    Power Supply Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
  • Imágenes y dibujo técnico
  • MH808-300-24(16X70) - Hauptbild
    Warnlabel 3B
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo24V DC
    Modulación:Cable color Modulate: yellowamarillo
  • Accesorios idóneos
  • MULTI-MOUNT-16(45x75)MULTI-MOUNT-16(45x75)
    Pedido Nr.: 70112504
    Mount for Lasermodul 16mm, Diameter 45mm, Height 75mm
    61.26 EUR
