PICOMARK-520-600
Número de pedido: 70158724
Descripción del producto:

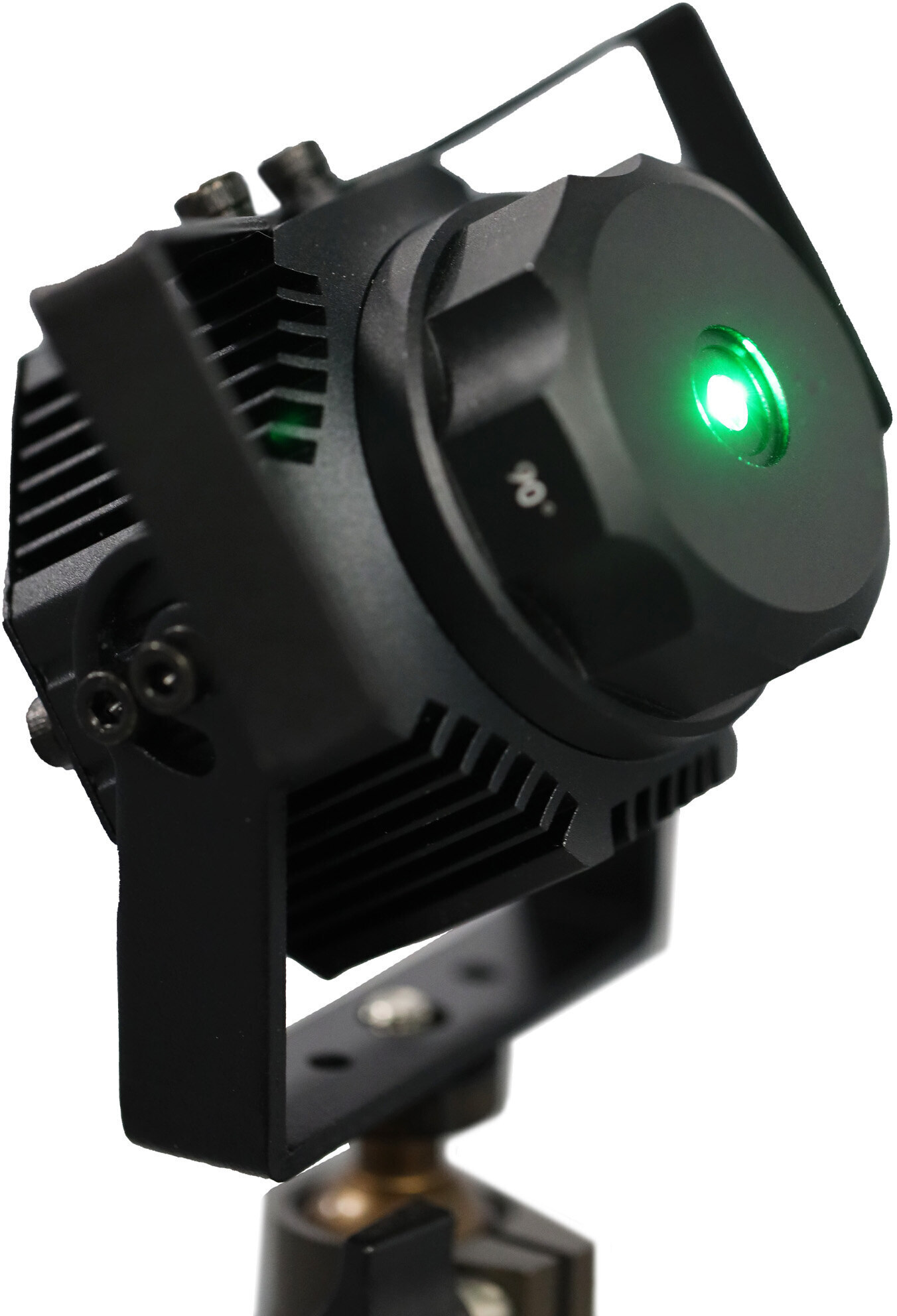

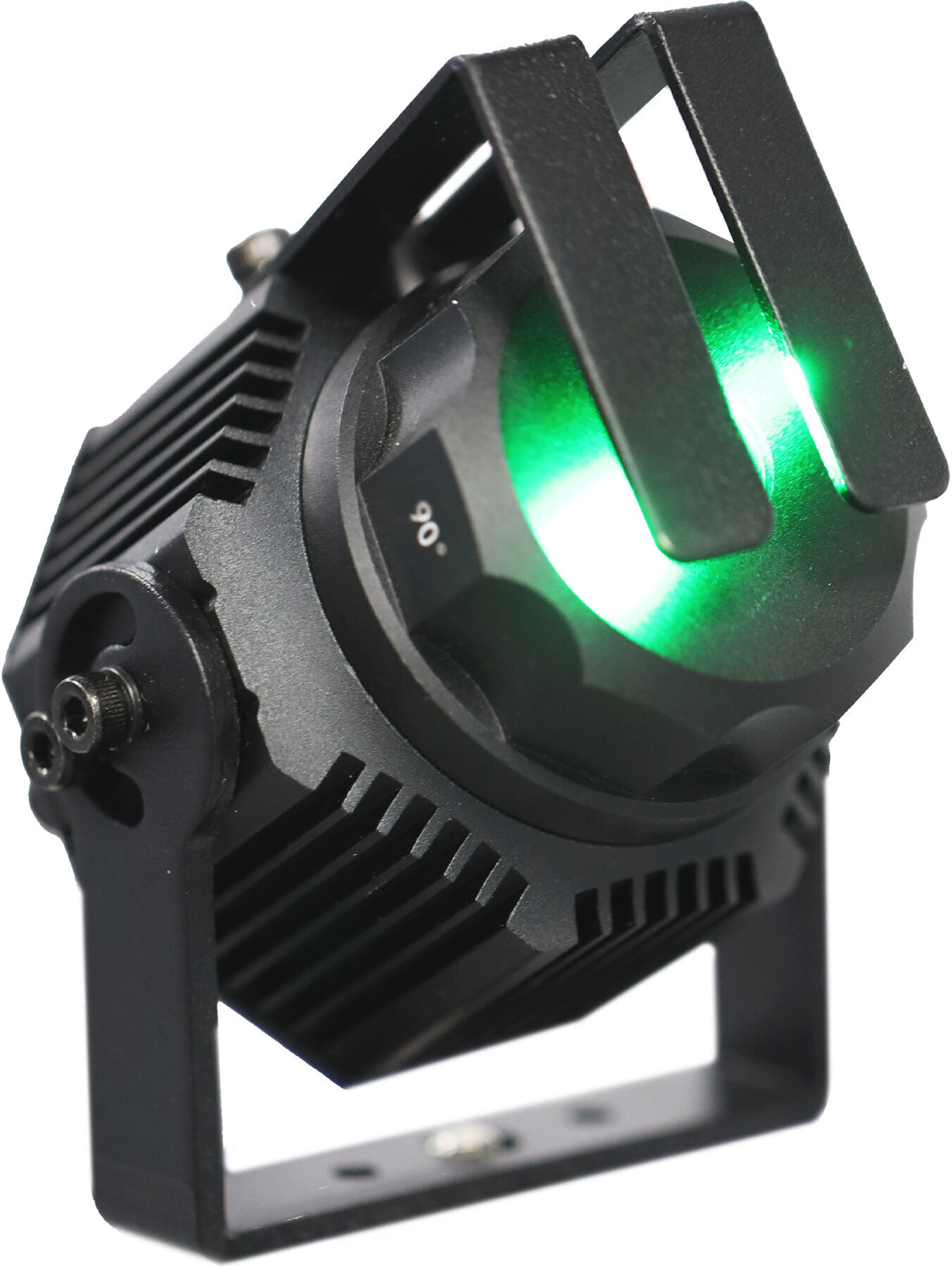

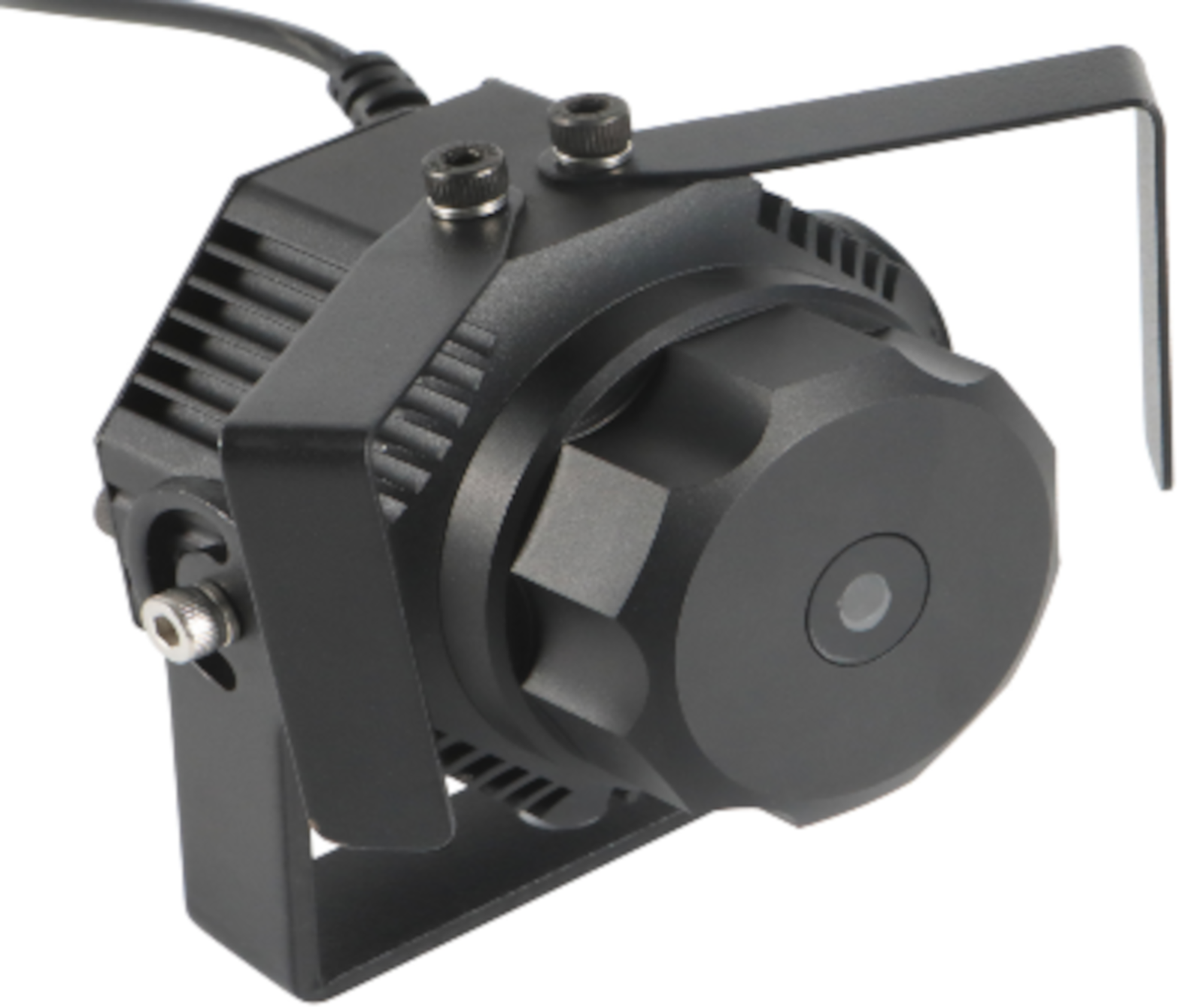

collimated isolated Line lasermodule, green, 520nm, 600mW, 230V, 80x80mm, class 3B
Descripción del producto:
collimated isolated Line lasermodule, green, 520nm, 600mW, 230V, 80x80mm, class 3B
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Línia Wavelength 520nm
(grün)Optical Power 600mW Laser Class 3B Divergence 1mrad Line Thickness 30mm-80mm Operating Distance 5m Optics Lente de cristal con recubrimiento AR Size Material aluminium Cable length 5000mm Wire type 22AWG, black, 3,6mm Focus collimated Lifetime >10000h Operating Voltage 230V AC Operating Current 100 - 400, typ 300mA Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 200g Protection Class IPIP 67 - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 230V DC - Accesorios idóneos
NF-S-419424-1-16A
Pedido Nr.: 70115031
Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
144.45 EUR- Downloads
