MLH850-80-5(18X60)100-PWL-F550

Número de pedido: 70155488

Descripción del producto:

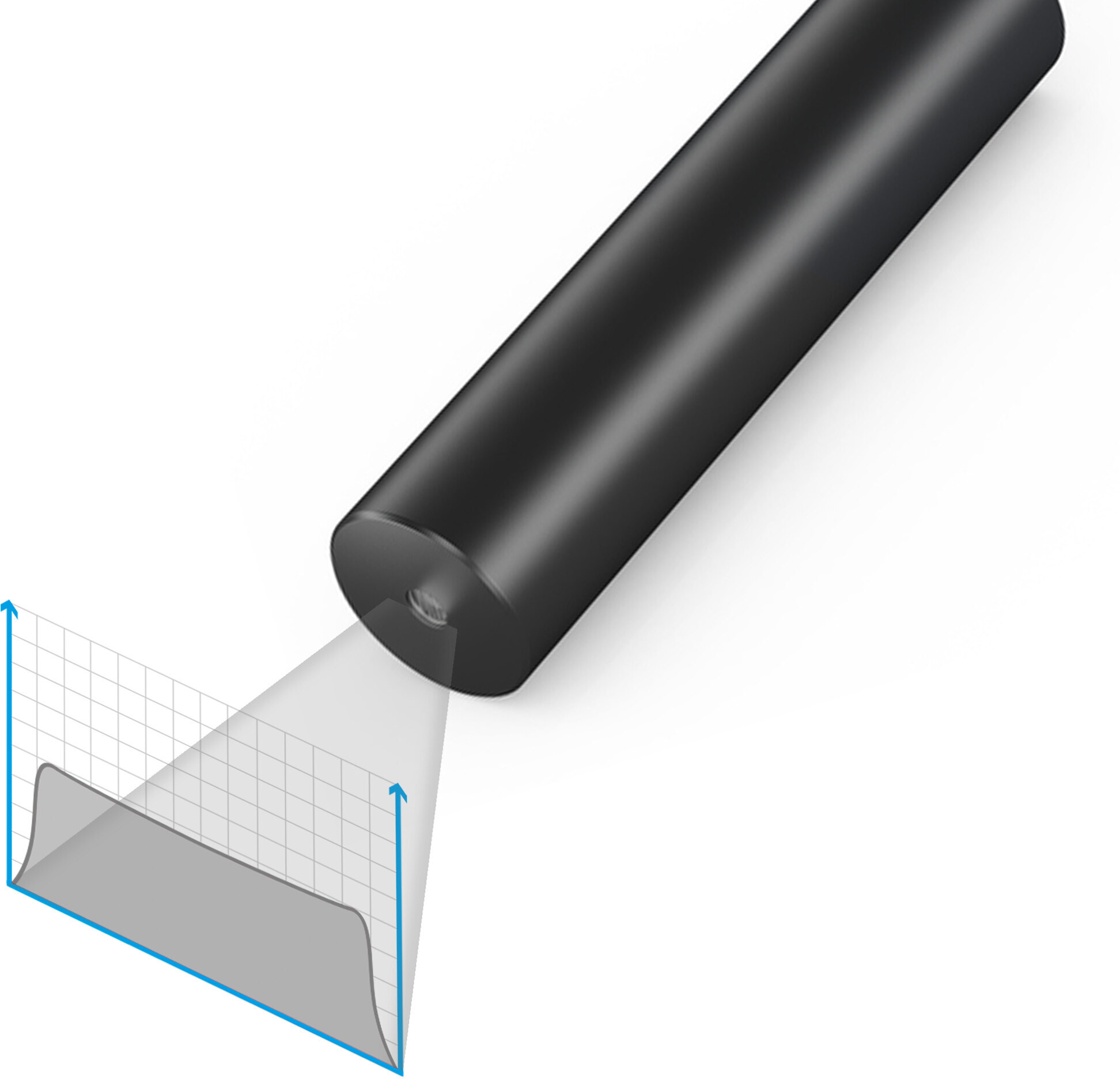

line laser, infrared, 100°, 850nm, 80mW, 5V DC, 18x60mm, class 3R, uniform line distribution, Powell lens, Focus 550mm, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing
MLH850-80-5(18X60)100-PWL-F550 - Hauptbild
MLH850-80-5(18X60)100-PWL-F550 - Produktbild 1
MLH850-80-5(18X60)100-PWL-F550 - Rendergrafik
Warnlabel 3R
1.193,19
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Línia
    Wavelength 850nm
    (infrarot)
    Optical Power 80mW
    Laser Class 3R
    Divergence 1mrad
    Fan Angle 100°
    Line Thickness ≤300μm (@550mm)
    Operating Distance 0.55m
    Optics Powell Lens
    Opt. Power Stability at const. Temp. <5%
    Axial Divergence ±1.5°
    Size Ø18mm 60mm
    Material aluminium
    Cable length 200mm
    Wire type 24AWG, black, 3mm
    Focus fixed (550mm)
    Output Aperture 4mm
    Max. Mod. Frequency 20kHz
    Lifetime >10000h
    Operating Voltage 4.5 - 5, typ 5V DC
    Operating Current 50 - 250, typ 140mA
    Housing Color negro
    Operating Temperature -30°C - 70°C
    Storage Temperature -40°C - 85°C
    Weight 20g
    Power Supply Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of wire 5mm
  • Imágenes y dibujo técnico
  • MLH850-80-5(18X60)100-PWL-F550 - Hauptbild
    MLH850-80-5(18X60)100-PWL-F550 - Produktbild 1
    MLH850-80-5(18X60)100-PWL-F550 - Rendergrafik
    Warnlabel 3R
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo5V DC
    Modulación:Cable color Modulate: yellowamarillo20kHz
  • Accesorios idóneos
  • MULTI-MOUNT-18(45x75)MULTI-MOUNT-18(45x75)
    Pedido Nr.: 70114119
    Mount for Lasermodul 18mm, Diameter 45mm, Height 75mm
    61.26 EUR
