LFL650-5-4.5(15x73)90-TIMER-2MIN

Número de pedido: 70150933

Descripción del producto:
Line Pointer 90° 5mW 4.5V automatic shutdown @2 min

• Laser Class 1
• with battery
• compact size
• uniform line thickness
• low cost
• automatic shutdown after 2 min

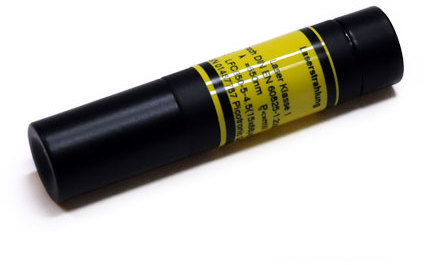

LFL650-5-4.5(15x73)90-TIMER-2MIN - Produktbild 1
LFL650-5-4.5(15x73)90-TIMER-2MIN - Hauptbild
LFL650-5-4.5(15x73)90-TIMER-2MIN - Rendergrafik
Warnlabel 1
27,51
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Línia
    Wavelength 650nm
    (rot)
    Optical Power 5mW
    Laser Class 1
    Divergence 1mrad
    Fan Angle 90°
    Line Thickness <1.2mm@1m
    Operating Distance 1m
    Optics acryl lense
    Laser technology diode
    Axial Divergence ±1°
    Size Ø15mm 73mm
    Material aluminium
    Focus fixed (1000mm)
    Output Aperture 6mm
    Potential of Housing VDD(+)
    Lifetime >3000h
    Operating Voltage 3 - 4.5V DC
    Operating Current 20mA
    Battery LR44/AG13 alkaline battery, 1.5V
    Operating Temperature -20°C - 40°C
    Storage Temperature -40°C - 80°C
    Weight 25g
  • Imágenes y dibujo técnico
  • LFL650-5-4.5(15x73)90-TIMER-2MIN - Produktbild 1
    LFL650-5-4.5(15x73)90-TIMER-2MIN - Hauptbild
    LFL650-5-4.5(15x73)90-TIMER-2MIN - Rendergrafik
    Warnlabel 1
  • Accesorios idóneos
  • MULTI-MOUNT-15(45x75)MULTI-MOUNT-15(45x75)
    Pedido Nr.: 70114102
    Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
    61.26 EUR
