LB660-50-5(19x95)45DEG-PWL

Número de pedido: 70142686

Descripción del producto:
Line laser, 45°, red, 660nm, 50mW, 5V DC, 19x95 mm, thermal shutdown @50°C, adjustable focus, 130mW laser diode

• Operating Voltage 5 V DC
• Laser Class 3B
• adjustable focus
• high power

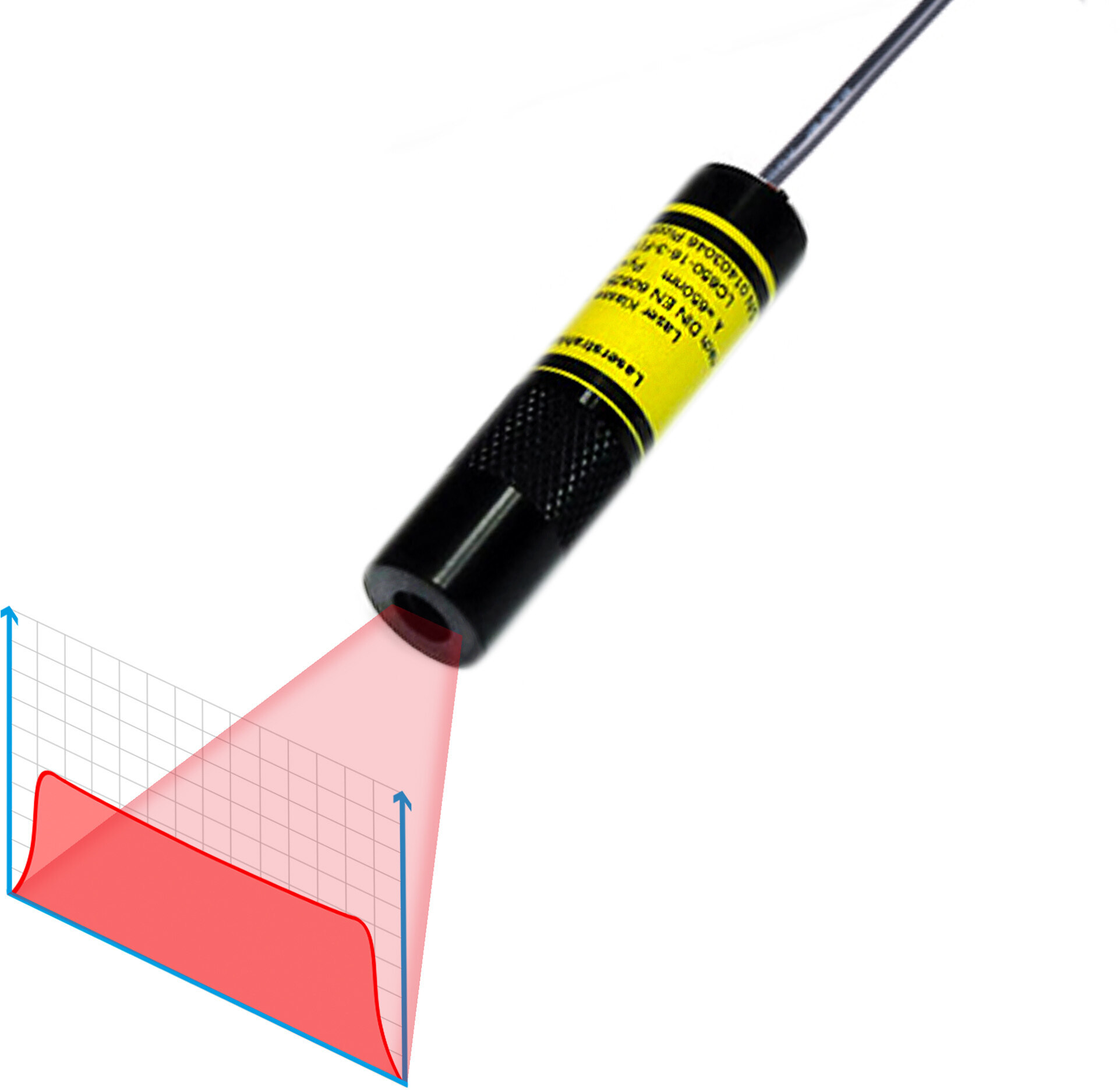

LB660-50-5(19x95)45DEG-PWL - Hauptbild
LB660-50-5(19x95)45DEG-PWL - Produktbild 1
LB660-50-5(19x95)45DEG-PWL - Rendergrafik
Warnlabel 3B
848,66
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty1Jahre
    Beam ShapeLínia
    Wavelength660nm
    (rot)
    Optical Power50mW
    Laser Class3B
    Divergence0.3mrad
    Fan Angle45°
    Line Thickness0.2mm@100mm
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Protection LensJa
    Axial Divergence±0.2°
    SizeØ19mm 95mm
    Materialaluminium
    Cable length950mm
    Wire typeBelden 9533
    Focusajustable
    Output Aperture6.8mm
    Potential of Housingaislado
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current50 - 200, typ 100mA
    Housing Colornegro
    Connector2.5 mm DC socket (+ pole inner)
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight70g
  • Imágenes y dibujo técnico
  • LB660-50-5(19x95)45DEG-PWL - Hauptbild
    LB660-50-5(19x95)45DEG-PWL - Produktbild 1
    LB660-50-5(19x95)45DEG-PWL - Rendergrafik
    Warnlabel 3B
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo5V DC
  • Accesorios idóneos
  • MULTI-MOUNT-19(45x75)MULTI-MOUNT-19(45x75)
    Pedido Nr.: 70115192
    Mount for Lasermodul 19mm, Diameter 45mm, Height 75mm
    66.30 EUR
