MULTI-MOUNT-17(45x75)
Mount for Lasermodul 17mm, Diameter 45mm, Height 75mm
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
Warranty | 1Jahre |
Beam Shape | Línia |
Wavelength | 635nm (rot) |
Optical Power | 7mW |
Laser Class | 1 |
Divergence | 1mrad |
Fan Angle | 100° |
Line Thickness | <1mm@1m |
Operating Distance | 1m |
Optics | Lente de cristal con recubrimiento AR |
Laser technology | Single Mode Diode |

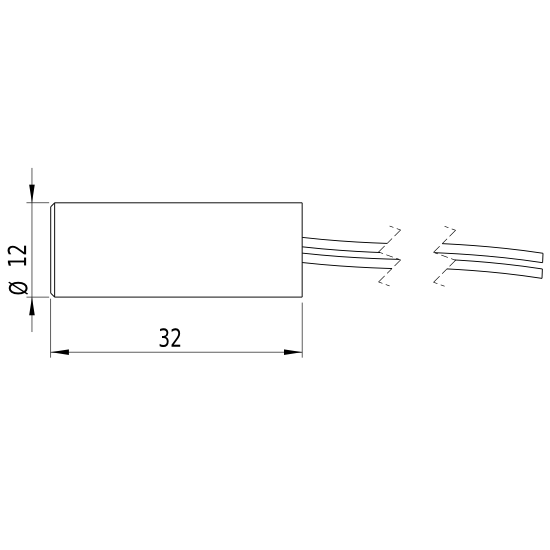

Size | Ø12mm 32mm |
Material | aluminium |
Cable length | 150mm |
Wire type | 26AWG, 0,14mm² |
Focus | fixed (1000mm) |
Output Aperture | 5.5mm |
Potential of Housing | aislado |
Lifetime | >10000h |
Operating Voltage | 3 - 6, typ 3V DC |
Operating Current | 25 - 75, typ 50mA |
Housing Color | negro |
Operating Temperature | -20°C - 50°C |
Storage Temperature | -40°C - 80°C |
Weight | 16.5g |
Power Supply | Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. |
Stripping of wire | 5mm |
