DD405-1-3(14x45)-CON-NT

Número de pedido: 70123388

Descripción del producto:

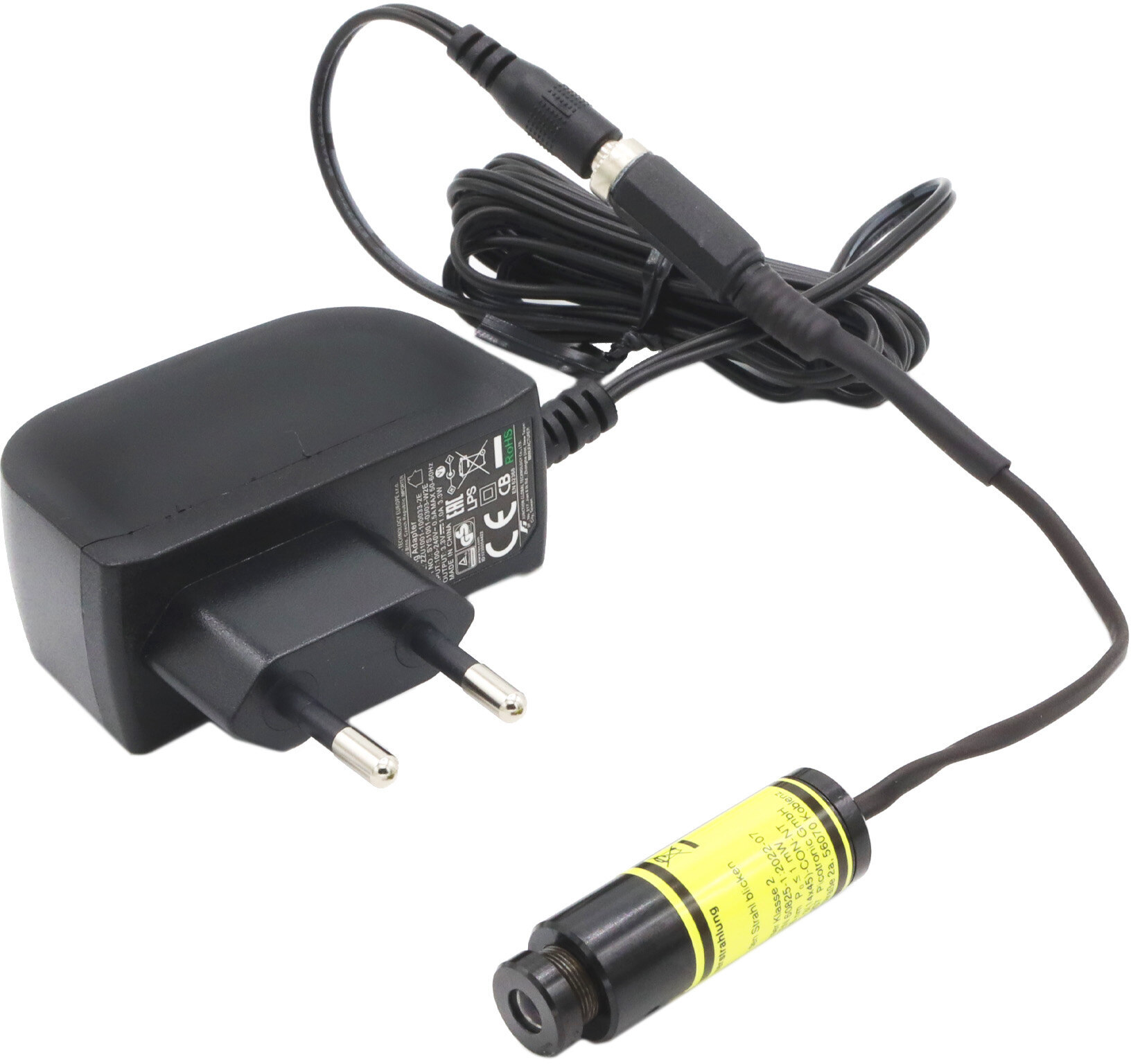

focusable isolated Dot lasermodule, blue, 405nm, 1mW, 3V DC, 14x45mm, class 2, incl. connector and power supply

• blue Lasermodule
• Operating Voltage 3 V DC
• glas lenses anti reflex coated
• Laser Class 2
• adjustable focus
DD405-1-3(14x45)-CON-NT - Produktbild 1
DD405-1-3(14x45)-CON-NT - Hauptbild
DD405-1-3(14x45)-CON-NT - Produktbild 2
DD405-1-3(14x45)-CON-NT - Rendergrafik
DD405-1-3(14x45)-CON-NT - Zeichnung
DD405-1-3(14x45)-CON-NT - Zeichnung Front
DD405-1-3(14x45)-CON-NT - Zeichnung isometrisch
Warnlabel 2
115,88
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Punto
    Wavelength 405nm
    (blau)
    Optical Power 1mW
    Laser Class 2
    Divergence 0.5mrad
    Size of Laserdot ajustable
    Operating Distance 10m
    Optics Lente de cristal con recubrimiento AR
    Laser technology diode
    Size Ø14mm 45mm
    Material aluminium
    Cable length 100mm
    Wire type 26AWG, 0,14mm²
    Focus ajustable
    Output Aperture 5mm
    Potential of Housing aislado
    Lifetime >5000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 30 - 90, typ 60mA
    Connector 2.5 mm DC socket (GND pole inner)
    Operating Temperature 0°C - 50°C
    Storage Temperature -40°C - 80°C
    Power Supply included Ja
    Weight 16g
    Power Supply Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
  • Imágenes y dibujo técnico
  • DD405-1-3(14x45)-CON-NT - Produktbild 1
    DD405-1-3(14x45)-CON-NT - Hauptbild
    DD405-1-3(14x45)-CON-NT - Produktbild 2
    DD405-1-3(14x45)-CON-NT - Rendergrafik
    DD405-1-3(14x45)-CON-NT - Zeichnung
    DD405-1-3(14x45)-CON-NT - Zeichnung Front
    DD405-1-3(14x45)-CON-NT - Zeichnung isometrisch
    Warnlabel 2
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo3V DC
  • Accesorios idóneos
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Pedido Nr.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    61.26 EUR
