LFD650-5-3(8x22)-3000H

Número de pedido: 70116144

Descripción del producto:
Dot lasermodule, red, 650nm, 5mW, 3V DC, 8x22mm, class 3R

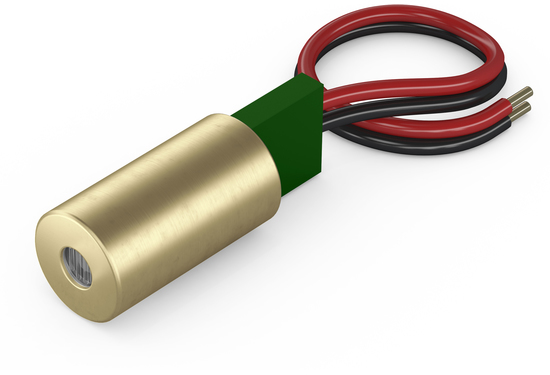

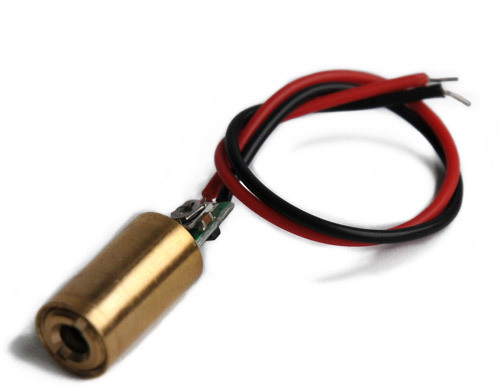

LFD650-5-3(8x22)-3000H - Hauptbild

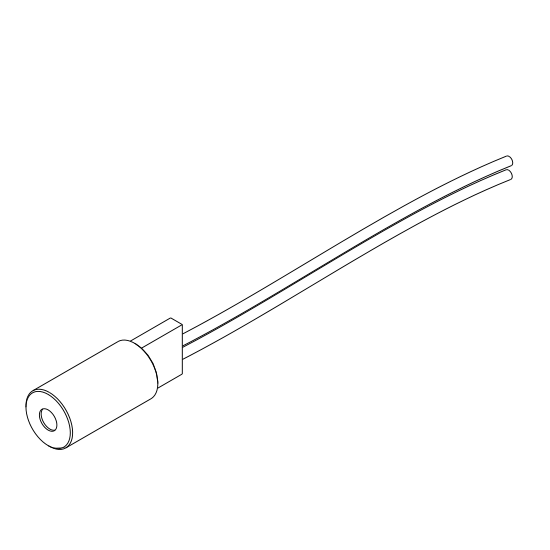

LFD650-5-3(8x22)-3000H - Rendergrafik

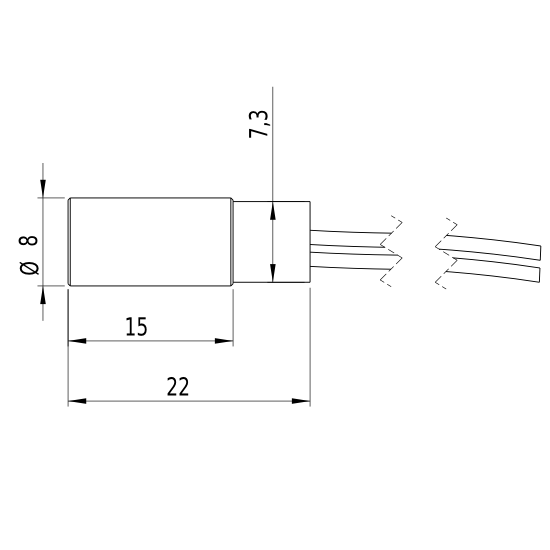

LFD650-5-3(8x22)-3000H - Zeichnung

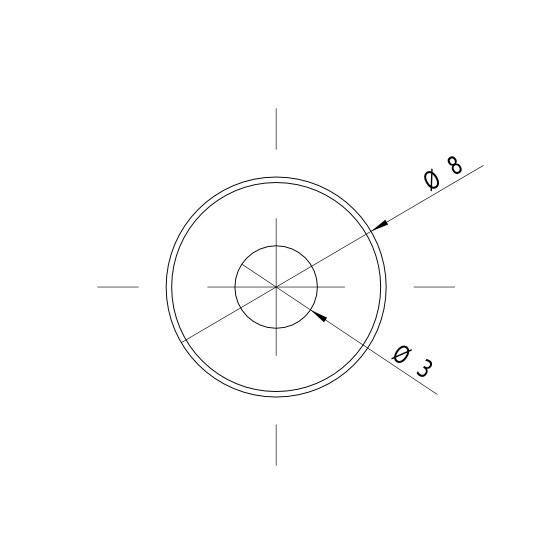

LFD650-5-3(8x22)-3000H - Zeichnung Front
LFD650-5-3(8x22)-3000H - Zeichnung isometrisch
Warnlabel 3R
15,04
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty1Jahre
    Beam ShapePunto
    Wavelength650nm
    (rot)
    Optical Power5mW
    Laser Class3R
    Divergence1mrad
    Size of Laserdot2..4@4m
    Operating Distance10m
    Opticsacryl lense
    Laser technologydiode
    Size
    MaterialLatón
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusajustable
    Output Aperture3mm
    Potential of HousingVDD(+)
    Lifetime>3000h
    Operating Voltage2.6 - 3.3, typ 3V DC
    Operating Current10 - 30, typ 20mA
    Operating Temperature-10°C - 40°C
    Storage Temperature-40°C - 80°C
    Weight4.6g
  • Imágenes y dibujo técnico
  • LFD650-5-3(8x22)-3000H - Hauptbild
    LFD650-5-3(8x22)-3000H - Rendergrafik
    LFD650-5-3(8x22)-3000H - Zeichnung
    LFD650-5-3(8x22)-3000H - Zeichnung Front
    LFD650-5-3(8x22)-3000H - Zeichnung isometrisch
    Warnlabel 3R
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo3V DC
