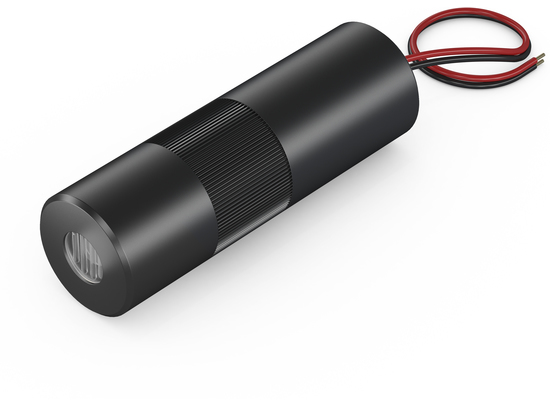

DOE254-635-5-6(10x22)
DOE Laser Module 635nm, red, 5mW, DOE 25 LINES - PC - 8x1,2mm 37°, 5V DC, Ø10x2…
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |
| Beam Shape | Línia |
| Wavelength | 850nm (infrarot) |
| Optical Power | 16mW |
| Laser Class | 3R |
| Divergence | 0.4mrad |
| Fan Angle | 30° |
| Line Thickness | ajustable |
| Operating Distance | 5m |
| Optics | Lente de cristal con recubrimiento AR |
| Laser technology | diode |
| Size | |
| Material | aluminium |
| Cable length | 100mm |
| Wire type | 26AWG, 0,14mm² |
| Focus | ajustable |
| Output Aperture | 6mm |
| Potential of Housing | aislado |
| Lifetime | >5000h |
| Operating Voltage | 2.7 - 3.3, typ 3V DC |
| Operating Current | 40 - 115, typ 75mA |
| Operating Temperature | -20°C - 50°C |
| Storage Temperature | -40°C - 80°C |
| Weight | 16.5g |
| Power Supply | Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. |
![]() | AM1-1203SZ Pedido Nr.: 70114928 DC DC Converter IN=12V OUT=3V 1 Watt (300 mA) 16.72 EUR |
![]() | |
|---|---|
| DOE254-635-1-6(10x22) Pedido Nr.: 70111859 DOE Laser Module 635nm, red, 1mW, DOE 25 LINES - PC - 8x1,2mm 37°, 5V DC, Ø10x22mm, Laser Class 2M with DOE-DE-R254 98.24 EUR |
![]() | |
|---|---|
| DOE265-635-1-6(10x22) Pedido Nr.: 70111965 DOE Laser Module 635nm, red, 1mW, DOE 1:19 Dot Line PC 8x1.2mm 13,3°, 5V DC, Ø10x22mm, Laser Class 2M with DOE-DE-R265 98.24 EUR |
![]() | |
|---|---|
| DOE-DE-R350 Pedido Nr.: 70137767 Diffractive Optical Element DOE 15 Lines (Rectangular) - 23,8° @ 520nm PC 8x1.2mm 49.50 EUR |
![]() | |
|---|---|
| DOE-DE-R263 Pedido Nr.: 70108200 Diffractive Optical Element DOE 1:5 Dot Line PC 8x1.2mm 6° @635nm 49.50 EUR |
![]() | |
|---|---|
| DOE263-532-5-3(16x90)-NT Pedido Nr.: 70111200 DOE Laser Module 532nm, green, 5mW, DOE 1:5 Dot Line PC 8x1.2mm 5,9° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R263 369.66 EUR |
![]() | |
|---|---|
| MD650-0.9-5(12x34) Pedido Nr.: 70135749 modulated focusable isolated Dot lasermodule, red, 650nm, 0.9mW, 5V DC, 12x34mm, class 2 62.94 EUR |
![]() | |
|---|---|
| DD635-1-3(12X54)-DOE Pedido Nr.: 70129199 focusable isolated DOE lasermodule, red, 635nm, 1mW, 3V DC, 12x54mm, class 2, prepared for mounting a standard DOE 8x1,2mm 115.88 EUR |
![]() | |
|---|---|
| DI650-1-5(5x12)-C150 Pedido Nr.: 70132014 Dot lasermodule, red, 650nm, 1mW, 5V DC, 5x12mm, class 2 43.61 EUR |
Según el ámbito de aplicación, hay que tener en cuenta diferentes aspectos de seguridad. Aprenda más en nuestra guía de seguridad.
Ir a guía de seguridad
Módulos láser con patrones geométricos para numerosas aplicaciones prácticas.
¡Descubra más!
