DD658-15-230(40x220)-DOE
Número de pedido: 70115314
Descripción del producto:
focusable isolated DOE lasermodule, red, 658nm, 15mW, 230V AC, 40x220mm, class 3B, incl. Mounting
• DOE Laser
• glas lenses anti reflex coated
• with 230V power supply
• high power
• adjustable focus
Descripción del producto:
focusable isolated DOE lasermodule, red, 658nm, 15mW, 230V AC, 40x220mm, class 3B, incl. Mounting
• DOE Laser
• glas lenses anti reflex coated
• with 230V power supply
• high power
• adjustable focus

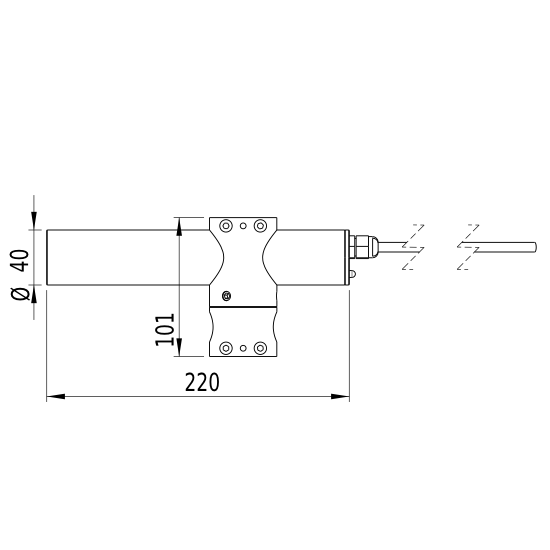

-DOE.png "DD658-15-230(40x220)-DOE - Zeichnung")
-DOE.png "DD658-15-230(40x220)-DOE - Zeichnung Front")

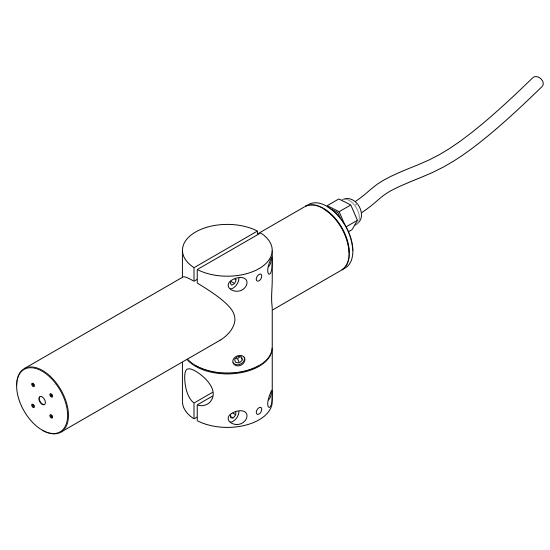

-DOE.png "DD658-15-230(40x220)-DOE - Zeichnung isometrisch")
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape DOE Wavelength 658nm
(rot)Optical Power 15mW Laser Class 3B Divergence 0.5mrad Operating Distance 50m Optics Lente de cristal con recubrimiento AR Beam Mode TEM00 Laser technology YVO4+KTP Stability +/- 20% @ 15-30°C Size Ø40mm 220mm Material aluminium Cable length 1700mm Wire type H05VV-F Focus ajustable Output Aperture 5mm Potential of Housing aislado Lifetime >10000h Operating Voltage 207 - 253, typ 230V AC Operating Current 5 - 15, typ 10mA Connector AC CEE 7/7 Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Warm up time <15min Weight 550g - Imágenes y dibujo técnico
- Accesorios idóneos
NF-S-419424-1-16A
Pedido Nr.: 70115031
Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
134.37 EUR- Downloads
