DEI635-3-5(10x25)-C150-70115239

Número de pedido: 70115239

Descripción del producto:
isolated Dot lasermodule, red, 635nm, 3mW, 5V DC, 10x25mm, class 3R

• Operating Voltage 5 V DC
• low power consumption
• low cost
• compact size
• fixed focus

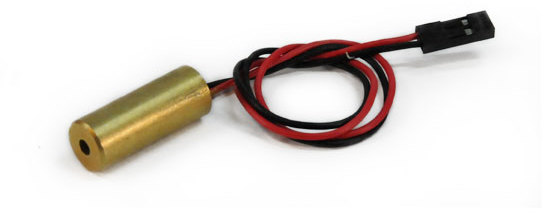

DEI635-3-5(10x25)-C150-70115239 - Hauptbild

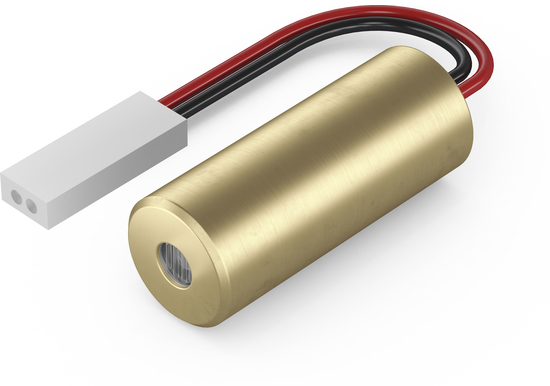

DEI635-3-5(10x25)-C150-70115239 - Rendergrafik

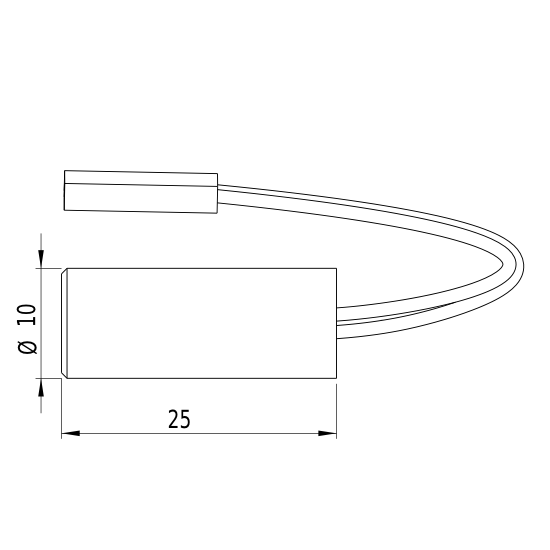

DEI635-3-5(10x25)-C150-70115239 - Zeichnung

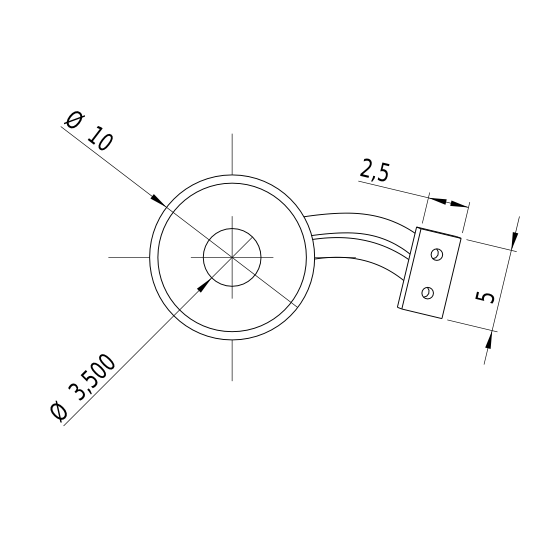

DEI635-3-5(10x25)-C150-70115239 - Zeichnung Front

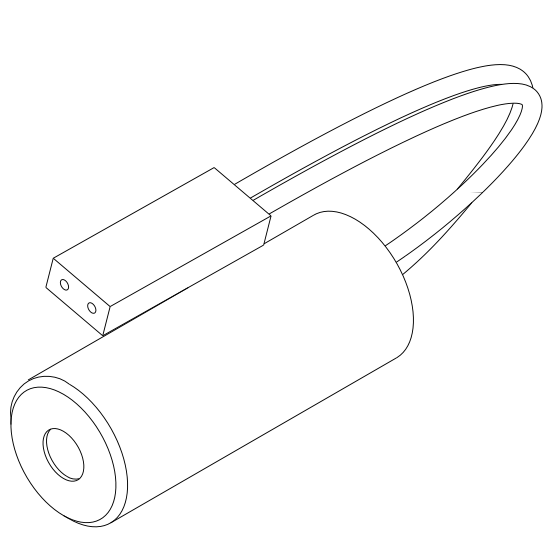

DEI635-3-5(10x25)-C150-70115239 - Zeichnung isometrisch
Warnlabel 3R
11,50
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty 1Jahre
    Beam Shape Punto
    Wavelength 635nm
    (rot)
    Optical Power 3mW
    Laser Class 3R
    Divergence 0.6mrad
    Beam Diameter 3.5mm
    Size of Laserdot 1mm@0.4m
    Operating Distance 0.4m
    Optics Lente de cristal con recubrimiento AR
    Laser technology diode
    Axial Divergence ±1.4°
    Size Ø10mm 25mm
    Material Latón
    Cable length 150mm
    Wire type 26AWG, 0,14mm²
    Focus fixed (400mm)
    Output Aperture 3.5mm
    Potential of Housing aislado
    Lifetime >5000h
    Operating Voltage 4.5 - 5.5, typ 5V DC
    Operating Current 25 - 75, typ 50mA
    Connector GD2.5 2pol
    Operating Temperature -20°C - 50°C
    Storage Temperature -40°C - 80°C
    Weight 12g
  • Imágenes y dibujo técnico
  • DEI635-3-5(10x25)-C150-70115239 - Hauptbild
    DEI635-3-5(10x25)-C150-70115239 - Rendergrafik
    DEI635-3-5(10x25)-C150-70115239 - Zeichnung
    DEI635-3-5(10x25)-C150-70115239 - Zeichnung Front
    DEI635-3-5(10x25)-C150-70115239 - Zeichnung isometrisch
    Warnlabel 3R
    Asignación de conectores
    Dimensiones:Cable color Ground: blacknegroGND
    Positivo:Cable color Positive: redrojo5V DC
