CB635-5-3-F(20X70)60DEG

Order number: 70159448

Product description:
focusable isolated cross lasermodule, red, 60°, 635nm, 5mW, 3V DC, 20x70mm, class 1

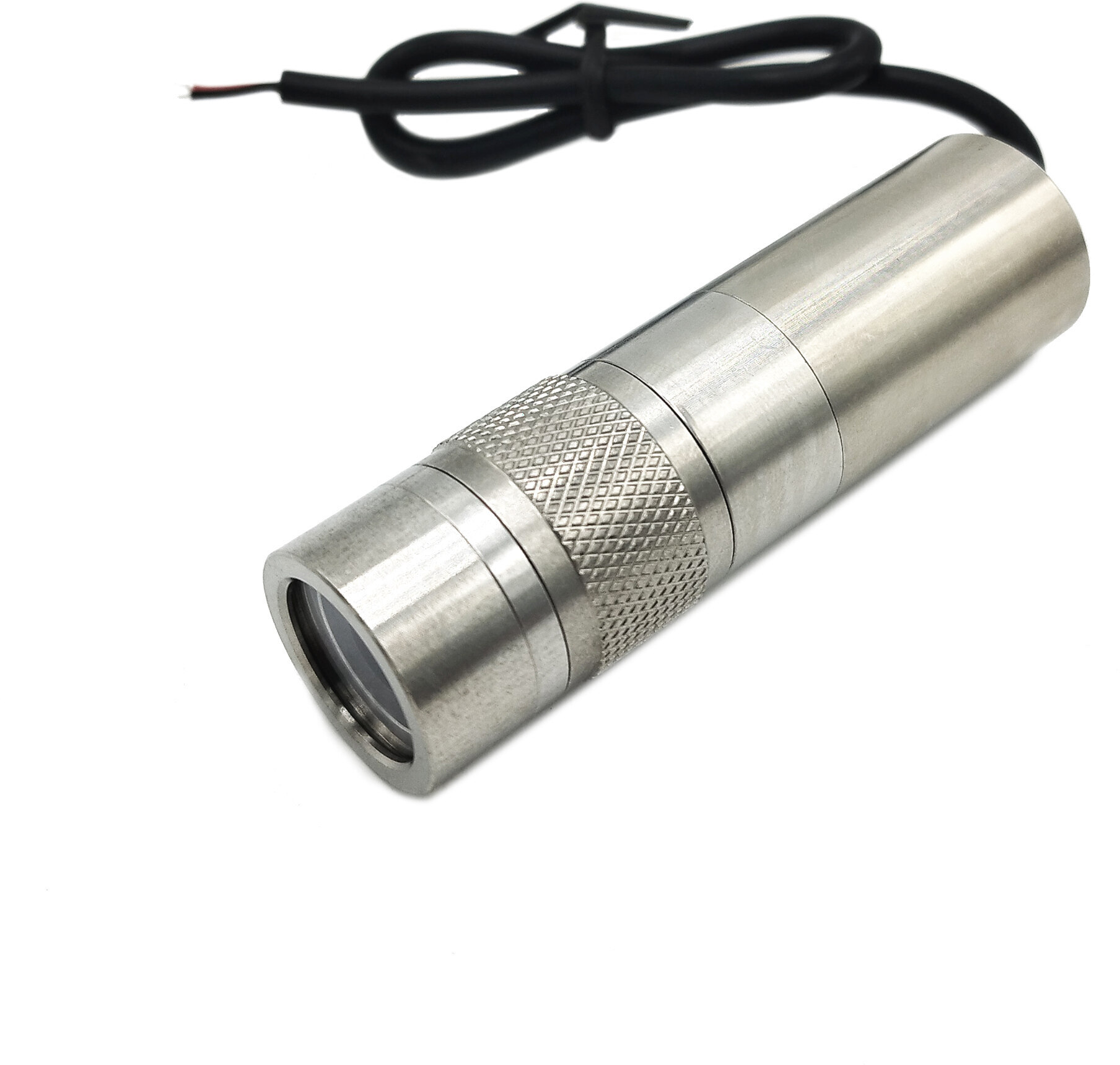

CB635-5-3-F(20X70)60DEG - Produktbild 1
CB635-5-3-F(20X70)60DEG - Hauptbild
Warnlabel 1
205,50
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Cross
    Wavelength 635nm
    (rot)
    Optical Power 5mW
    Laser Class 1
    Divergence 0.8mrad
    Fan Angle 60°
    Line Thickness <1.0mm@1m
    Operating Distance 3m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Size Ø20mm 70mm
    Material Stainless Steel
    Cable length 200mm
    Focus adjustable
    Output Aperture 4mm
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 2.7 - 3.3, typ 3V DC
    Operating Current 40 - 80, typ 60mA
    Housing Color silver
    Operating Temperature -20°C - 60°C
    Storage Temperature -40°C - 85°C
    Weight 105g
    Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    Stripping of wire 5mm
  • Illustration and technical drawing
  • CB635-5-3-F(20X70)60DEG - Produktbild 1
    CB635-5-3-F(20X70)60DEG - Hauptbild
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • MULTI-MOUNT-20(45x75)MULTI-MOUNT-20(45x75)
    Order no.: 70112511
    Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
    61.26 EUR
