MOUNT-BASE-PLATE-01
Base plate with mounting mandrel Ø22mm, aluminum
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |
| Beam Shape | Line |
| Wavelength | 650nm (rot) |
| Optical Power | 600mW |
| Laser Class | 3B |
| Divergence | 1mrad |

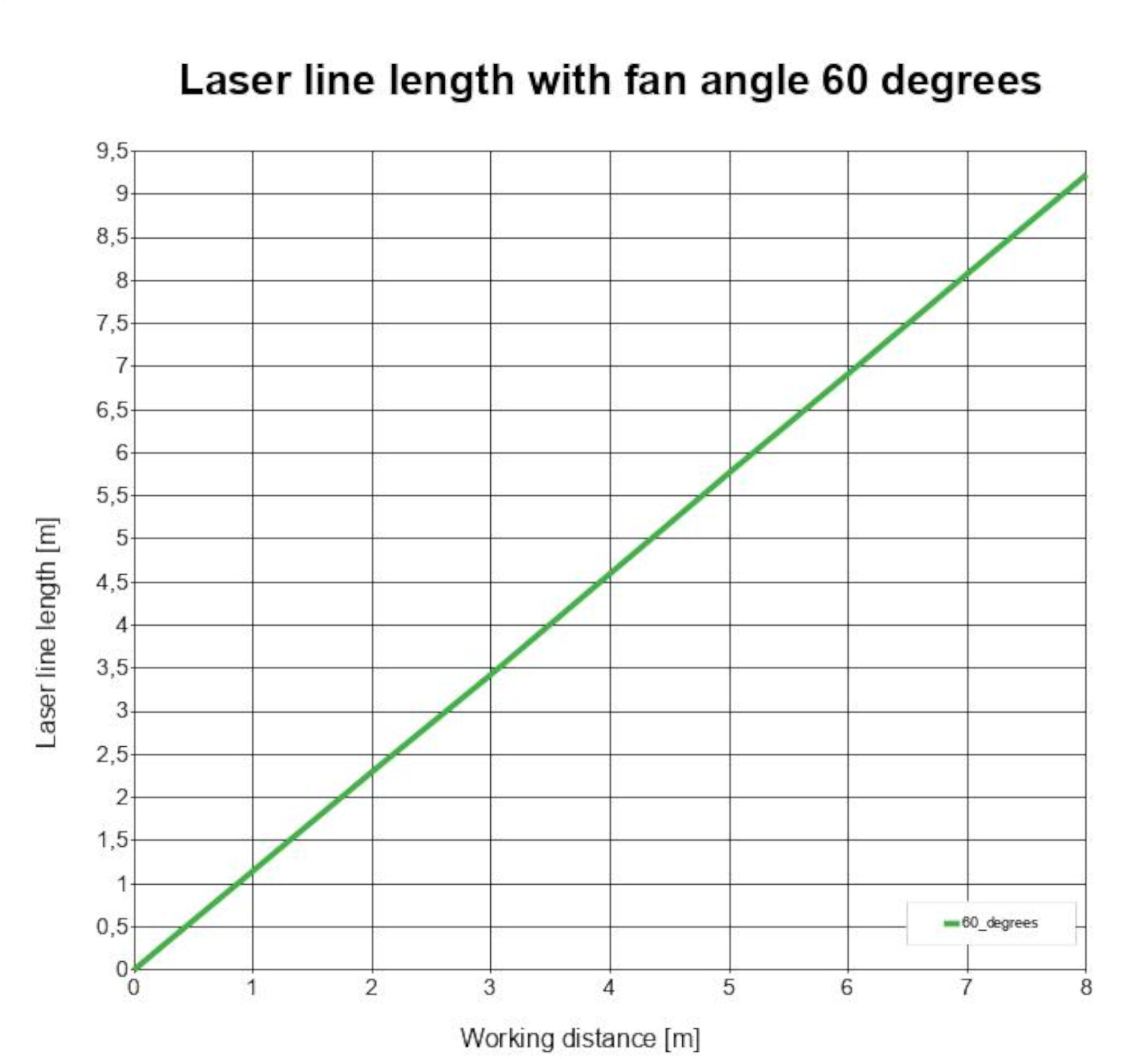

| Fan Angle | 60° |
| Line Thickness | 30mm-80mm |
| Operating Distance | 8m |
| Optics | Glass lens AR coated |
| Size | Ø80mm 80mm |
| Material | aluminium |
| Cable length | 5000mm |
| Wire type | 22AWG, black, 3,6mm |
| Focus | collimated |
| Lifetime | >10000h |
| Operating Voltage | 230V AC |
| Operating Current | 100 - 400, typ 300mA |
| Housing Color | black |
| Operating Temperature | -20°C - 50°C |
| Storage Temperature | -40°C - 80°C |
| Weight | 200g |
| Protection Class | IPIP 67 |
![]() | NF-S-419424-1-16A Order no.: 70115031 Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks 144.45 EUR |
| PICOMARK-520-1200-135DEG Order no.: 70159370 collimated isolated Line lasermodule, green, 135°, 520nm, 1200mW, 230V, 80x80mm, class 3B 1,260.42 EUR |
| MDD520-4-24-F(12x50)-C150-2CON Order no.: 70138092 adjustable isolated Dot lasermodule, green, 520nm, 4mW, 24DC, 12x50mm, class 3R, internal modulation 1kHz, with connector JST 4pin and connector JST 5pin 420.08 EUR |
| LE650-5-3(12x32)-F400-10DEG Order no.: 70116199 Isolated line laser, red, 10°, 650nm, 5mW, 3V DC, 12x32mm, focus 400mm, class 2M 60.42 EUR |
| DOE261-520-5-3(16x90)-NT Order no.: 70118759 DOE Laser Module 520nm, green, 5mW, DOE Viewfinder ( Dot Circle + Cross) PC - 8x1,2mm 6,2° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R261 470.50 EUR |
| DOE256-520-5-3(16x90)-NT Order no.: 70118742 DOE Laser Module 520nm, green, 5mW, DOE Square Grid 51x51 Lines PC 8x1.2mm 31,5° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R256 470.50 EUR |
| DOE282-635-5-3(16x90)-NT Order no.: 70119237 DOE Laser Module 635nm, red, 5mW, DOE 1:99 Dot Line - PMMA - 8x1mm 18.3° with power supply, 3V DC, Ø16x90mm, Laser Class 2M with DOE-DE-R282 268.82 EUR |
| LFL635-5-4.5(9x20)90 Order no.: 70138771 Line lasermodule, red, 90°, 635nm, 5mW, 3-4.5V DC, 9x20mm, class 1 11.68 EUR |
| LFL532-5-3(16x90)-CON Order no.: 70124378 green, line lasermodule, 90°, 532nm, 5mW, 3V DC, 16x90mm, class 1, DC-Connector 2.5mm built-in socket 159.58 EUR |
