LC650-3-5(9X25)-PL

Order number: 70157109

Product description:
isolated Line lasermodule, red, 90°, 650nm, 3mW, 5V DC, 9x25mm, class 1

• Operating Voltage 5 V DC
• Laser Class 1
• Fan angle 90 °
• compact size

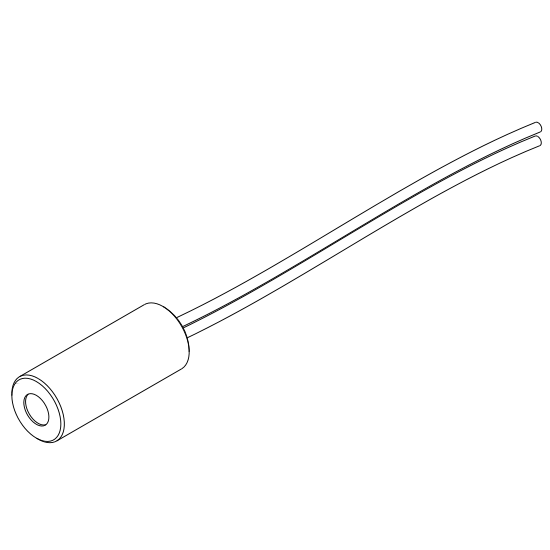

LC650-3-5(9X25)-PL - Zeichnung isometrisch

106,64
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	3mW
Laser Class	1
Fan Angle	90°
Line Thickness	<1mm@1m
Operating Distance	1m
Optics	Glass lens AR coated
Protection Lens	Ja
Size
Material	aluminium
Cable length	120mm
Wire type	28AWG
Focus	fixed (1000mm)
Output Aperture	4mm
Potential of Housing	insulated
Lifetime	>10000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	15 - 65, typ 40mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-40°C - 85°C
Weight	4g
Stripping of wire	5mm

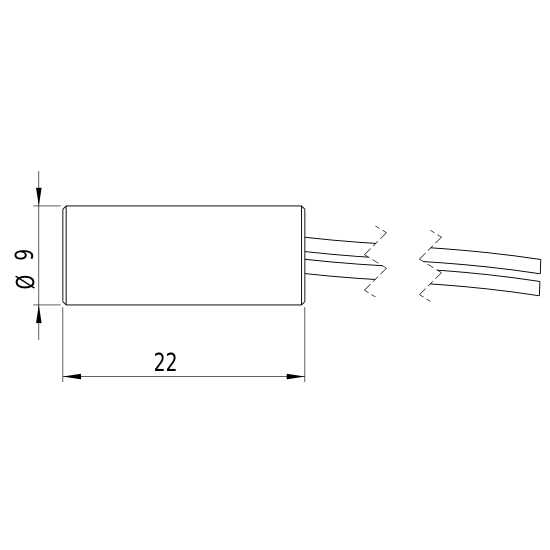

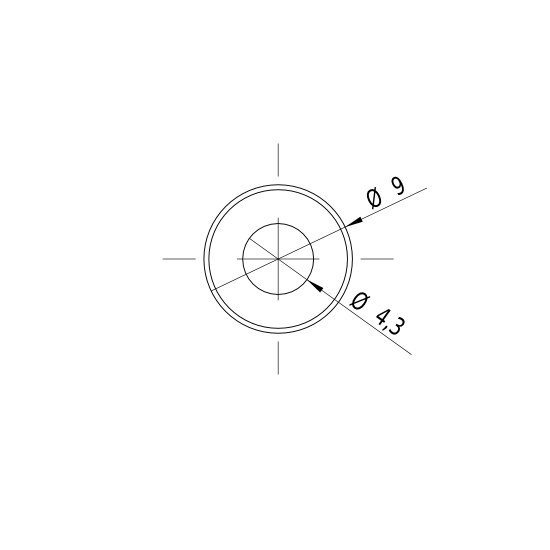

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
