LC650-1-3-F(14X45)-CON

Order number: 70156829

Product description:
focusable isolated Line lasermodule, red, 90°, 650nm, 1mW, 3V DC, 14x45mm, class 1, Connector 2.5mm

• Fan angle 90 °
• glas lenses anti reflex coated
• adjustable focus
• Laser Class 1
• for medical devices

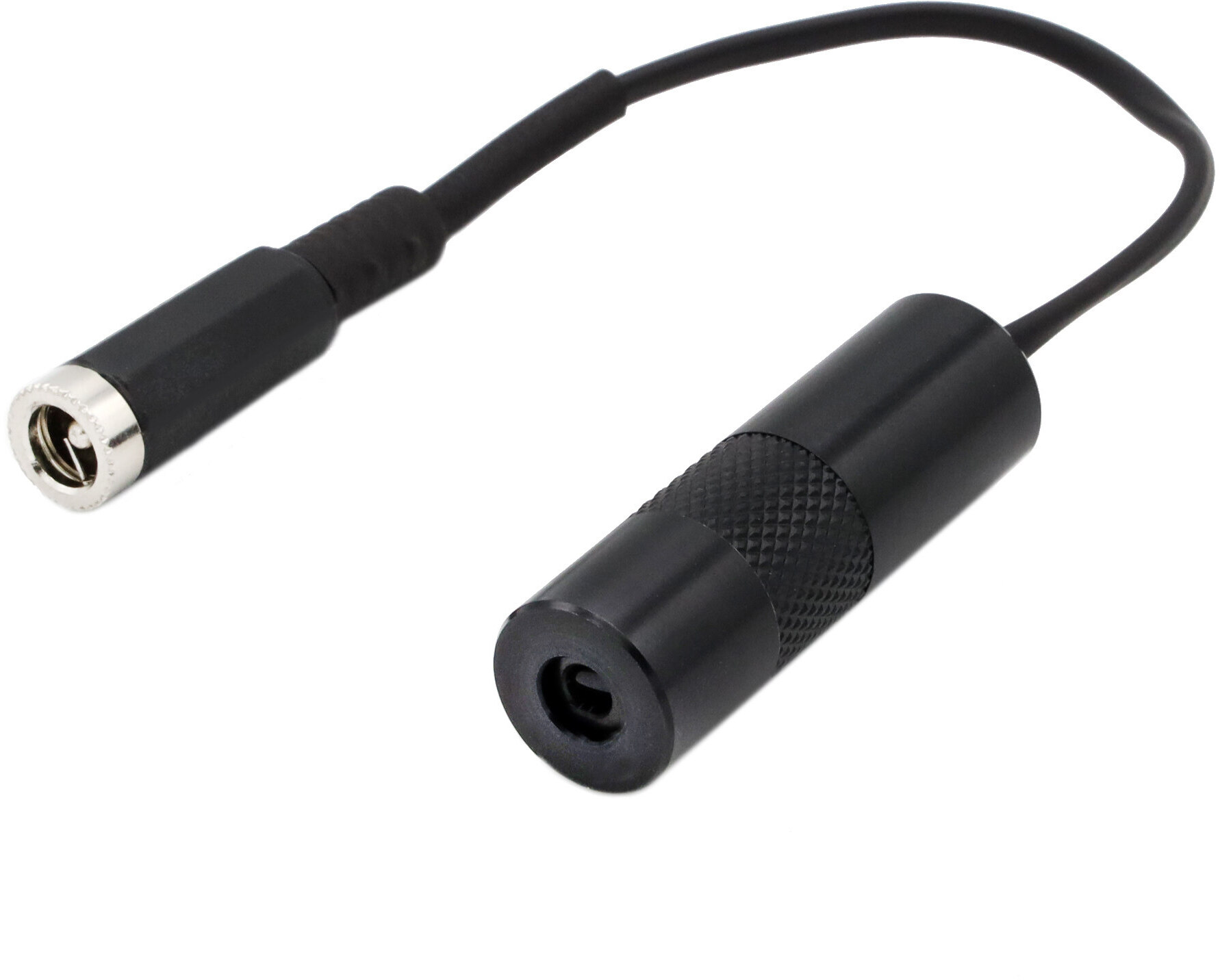

LC650-1-3-F(14X45)-CON - Produktbild 1
LC650-1-3-F(14X45)-CON - Hauptbild
LC650-1-3-F(14X45)-CON - Produktbild 2
LC650-1-3-F(14X45)-CON - Zeichnung
LC650-1-3-F(14X45)-CON - Zeichnung Front
LC650-1-3-F(14X45)-CON - Zeichnung isometrisch
Warnlabel 1
108,32
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power1mW
    Laser Class1
    Divergence0.4mrad
    Fan Angle90°
    Line Thicknessadjustable
    Operating Distance2m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture6mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current15 - 40, typ 25mA
    Housing Colorblack
    Connector2.5 mm DC socket (GND pole inner)
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight14.5g
    Power SupplyPower Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
  • Illustration and technical drawing
  • LC650-1-3-F(14X45)-CON - Produktbild 1
    LC650-1-3-F(14X45)-CON - Hauptbild
    LC650-1-3-F(14X45)-CON - Produktbild 2
    LC650-1-3-F(14X45)-CON - Zeichnung
    LC650-1-3-F(14X45)-CON - Zeichnung Front
    LC650-1-3-F(14X45)-CON - Zeichnung isometrisch
    Warnlabel 1
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
