CB635-5-5(10X20)45-PL

Order number: 70153934

Product description:
Isolated cross lasermodule,red, 45°, 650nm, 5mW, 3-5V DC, 10x20mm, class 1M, PL, driver PCB outside, Vibration (DIN EN 60068-2-6 Standard), Shock (DIN EN 60068-2-29 Standard)
CB635-5-5(10X20)45-PL - Produktbild 1
CB635-5-5(10X20)45-PL - Hauptbild
Warnlabel 1M
193,19
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty 1Jahre
    Beam Shape Line
    Wavelength 635nm
    (rot)
    Optical Power 5mW
    Laser Class 1M
    Divergence 0.3mrad
    Beam Diameter 4mm

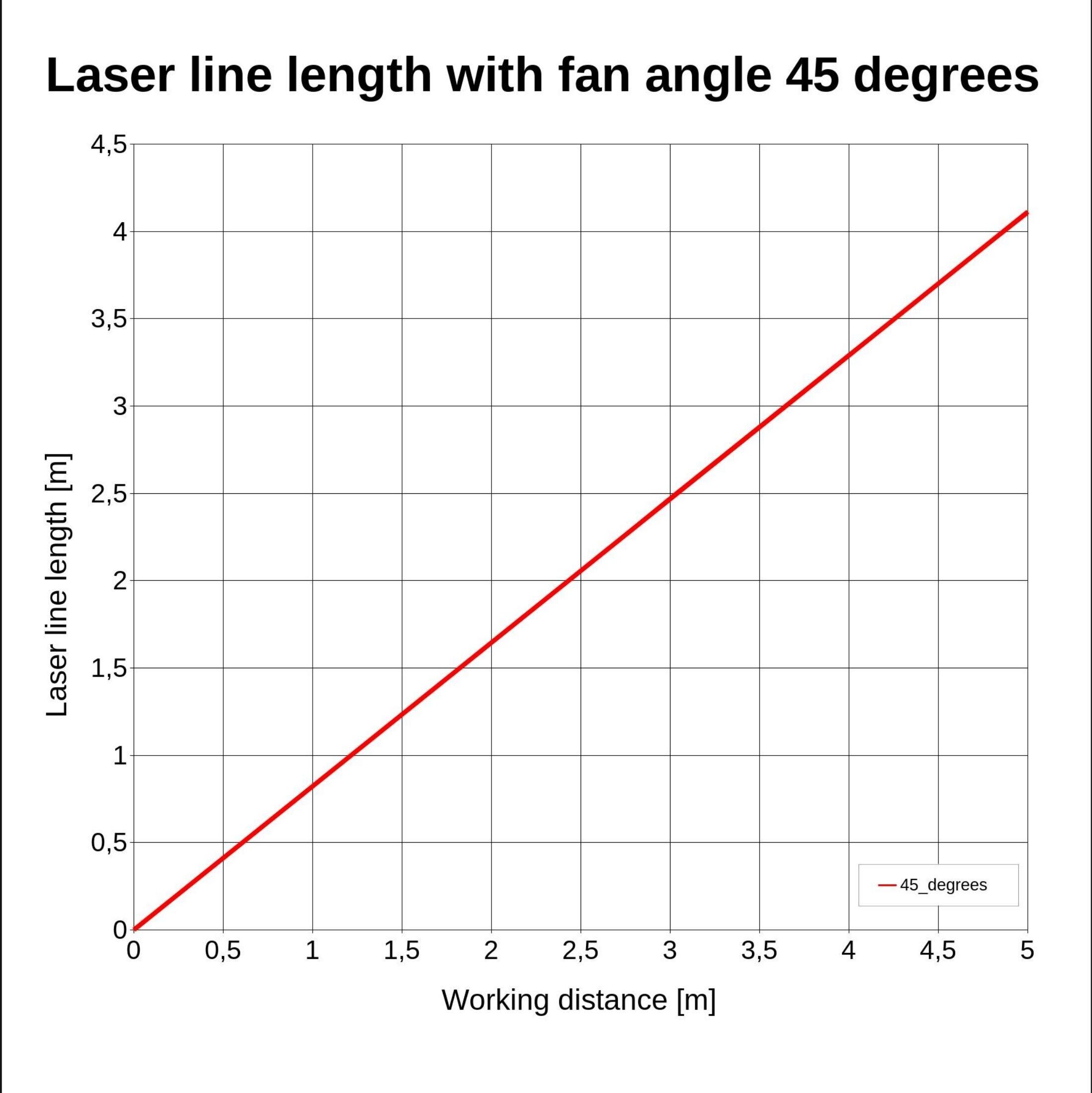

    Fan Angle 45°
    Line Thickness <2mm@2.5m
    Operating Distance 2.5m
    Optics Glass lens AR coated
    Laser technology Single Mode Diode
    Protection Lens Ja
    Size Ø10mm 20mm
    Material aluminium
    Cable length 200mm
    Wire type 28AWG
    Focus fixed (2500mm)
    Potential of Housing insulated
    Lifetime >10000h
    Operating Voltage 2.7 - 5.5, typ 5V DC
    Operating Current 25 - 70, typ 50mA
    Housing Color black
    Operating Temperature -20°C - 60°C
    Storage Temperature -40°C - 85°C
    Weight 50g

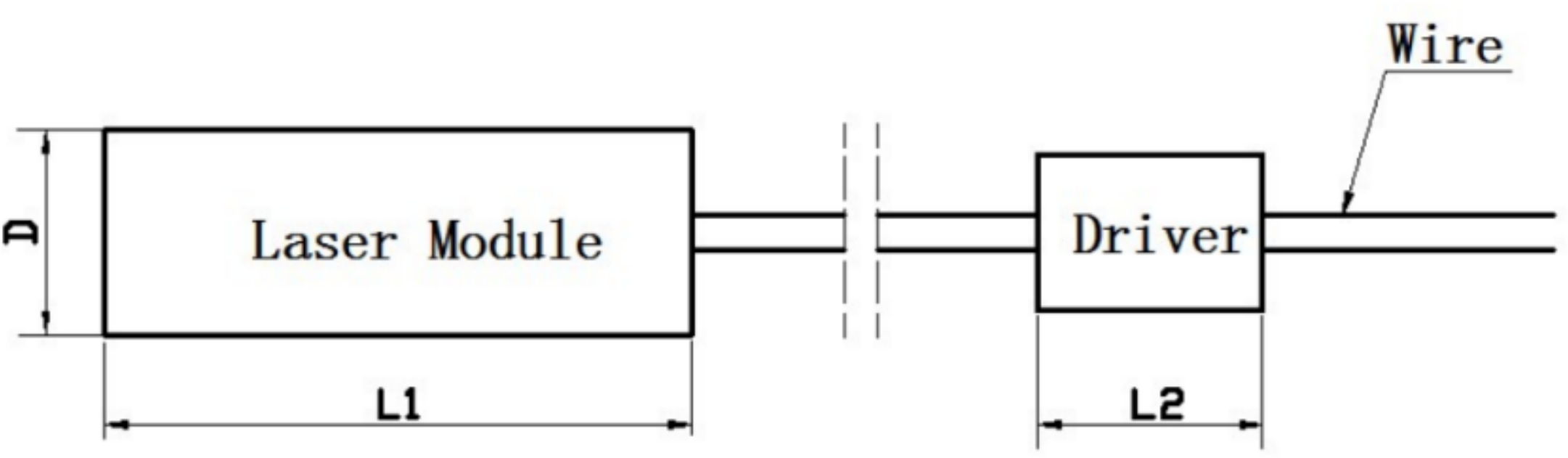

  • Illustration and technical drawing
  • CB635-5-5(10X20)45-PL - Produktbild 1
    CB635-5-5(10X20)45-PL - Hauptbild
    Warnlabel 1M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred5V DC
  • Matching accessories
  • MAGNETIC-MOUNT-PRO-10(48X86)MAGNETIC-MOUNT-PRO-10(48X86)
    Order no.: 70160970
    MAGNETIC-MOUNT-PRO for Lasermodul 10mm, Diameter 48mm, Height 86mm,
    83.95 EUR
