MLH660-5-10(10x50)60-PWL-F390-PT

Order number: 70141986

Product description:
line laser, red, 60°, 660nm, 5mW, 10V DC, 10x50mm, class 2M, uniform line distribution, Powell lens, Focus 390mm, Output power control 0-5V, TTL modulation

• Powell Lens
• Uniform line distribution
• Image processing

MLH660-5-10(10x50)60-PWL-F390-PT - Produktbild 1

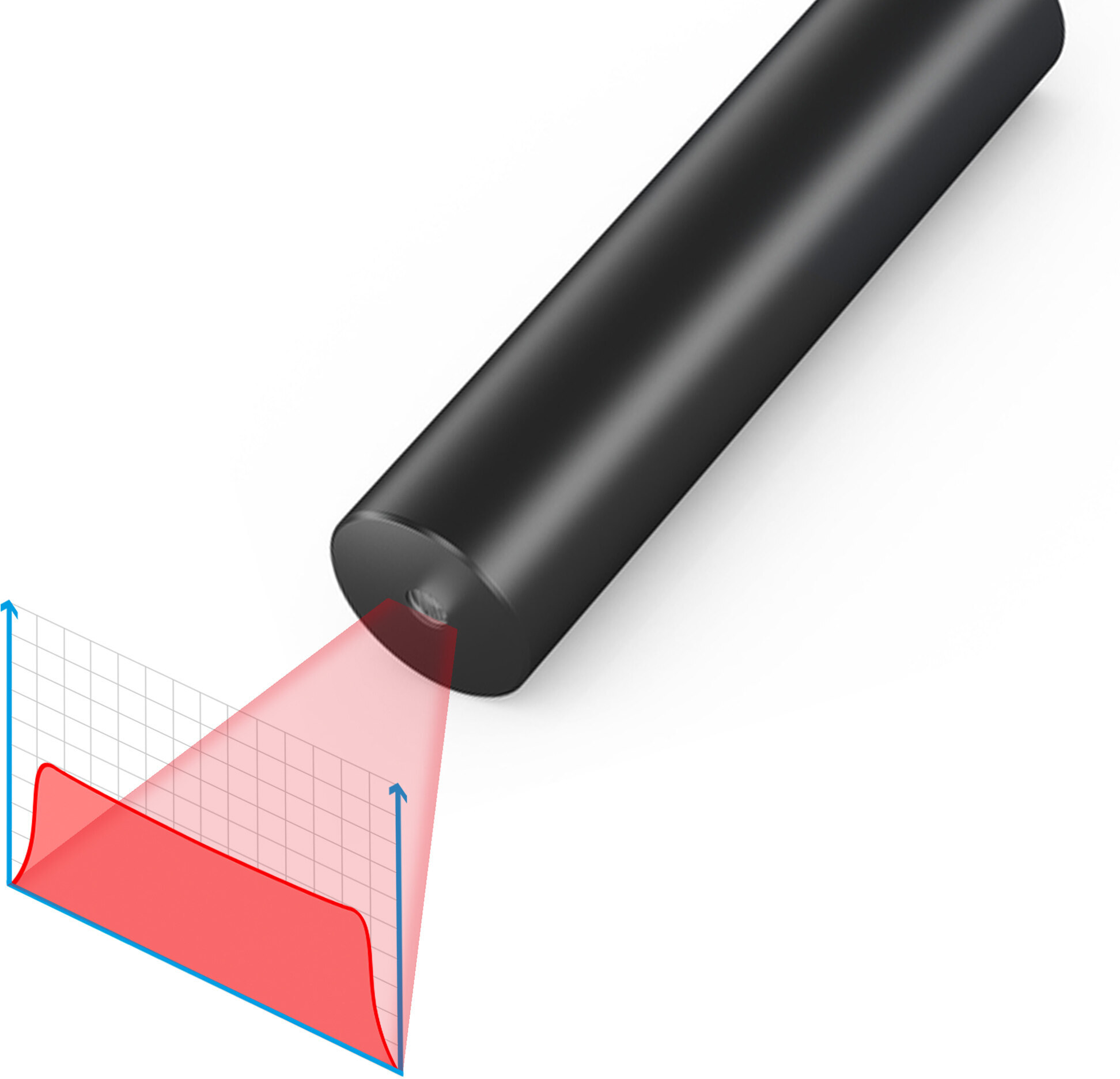

MLH660-5-10(10x50)60-PWL-F390-PT - Rendergrafik

798,24
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	660nm (rot)
Optical Power	5mW
Laser Class	2M
Divergence	1mrad
Fan Angle	60°
Line Thickness	<0.25mm@390mm
Operating Distance	0.39m
Optics	Powell Lens
Laser technology	Single Mode Diode
Opt. Power Stability at const. Temp.	<5%
Axial Divergence	±1°
Size
Material	aluminium
Cable length	100mm
Wire type	26AWG, UL, isolated
Focus	fixed (390mm)
Output Aperture	4mm
Potential of Housing	insulated
Max. Mod. Frequency	50kHz
Lifetime	>10000h
Operating Voltage	9.5 - 10.5, typ 10V DC
Operating Current	30 - 80, typ 50mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-40°C - 85°C
Weight	20g
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 10V DC
Modulation: green 50kHz
Matching accessories
LABEL-DIN-CLASS2M-DE
Order no.: 70114201
Safety Label german DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.60 EUR
