DD532-1-3(20x80)-AP-CON-NT

Order number: 70125818

Product description:
axial parallel, isolated, Dot lasermodule, green, 532nm, 1mW, 3V DC, 20x80mm, class 2, incl. connector and power supply

• glas lenses anti reflex coated
• Laser Class 2
• Operating Voltage 3 V DC
• compact size
• axial parallel

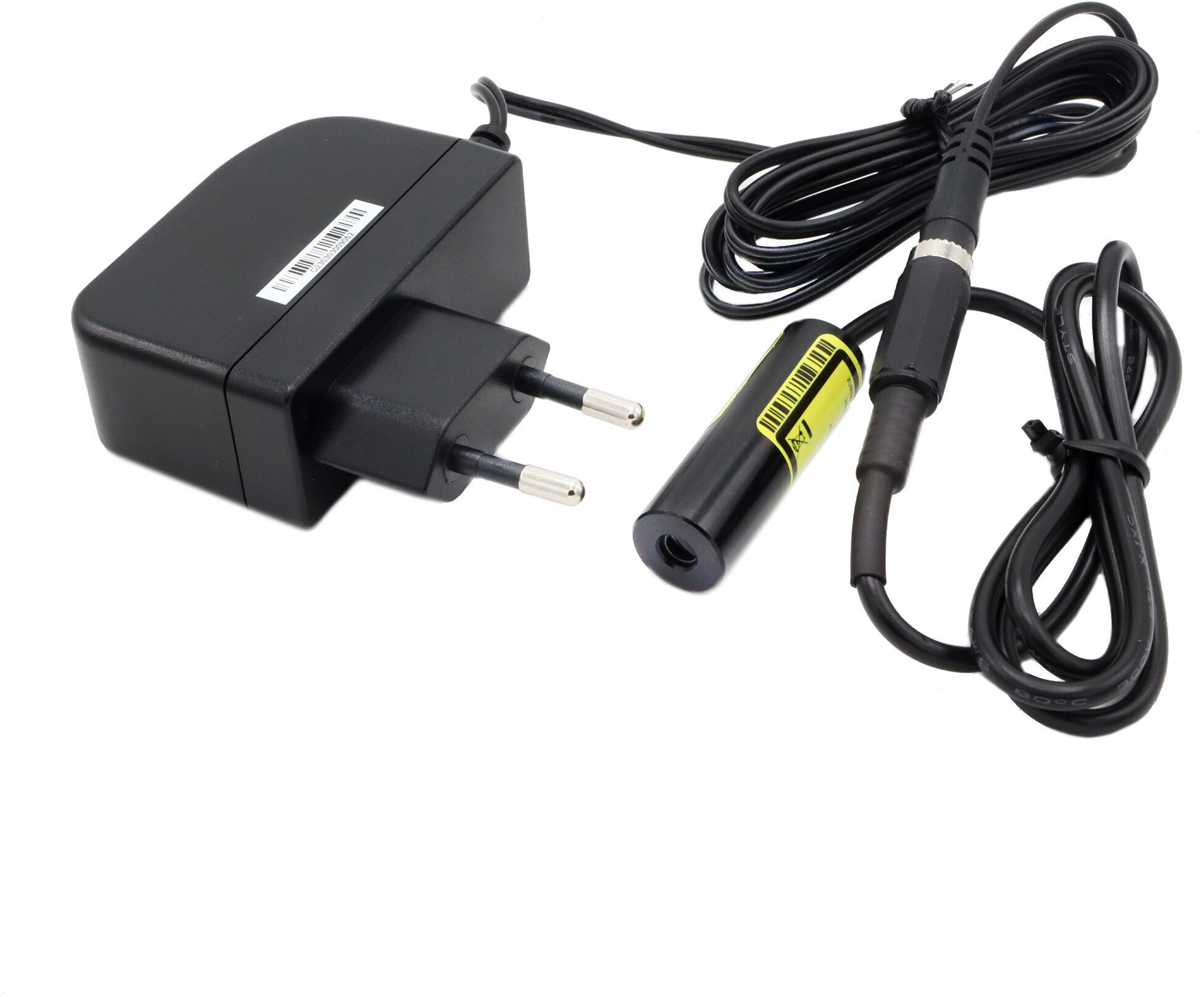

DD532-1-3(20x80)-AP-CON-NT - Hauptbild
DD532-1-3(20x80)-AP-CON-NT - Zeichnung
DD532-1-3(20x80)-AP-CON-NT - Zeichnung Front
DD532-1-3(20x80)-AP-CON-NT - Zeichnung isometrisch
Warnlabel 2
294,03
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeDot
    Wavelength532nm
    (grün)
    Optical Power1mW
    Laser Class2
    Divergence0.5mrad
    Size of Laserdot<3.5..5mm@10m
    Operating Distance50m
    OpticsGlass lens AR coated
    Beam ModeTEM00
    Laser technologySolid State (YVO4+KTP)
    Stability+/- 20% @ 15-30°C
    Axial Divergence±0.1°
    Size
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focuscollimated
    Output Aperture5mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current80 - 240, typ 160mA
    Housing Colorblack
    Connector2.5 mm DC socket (GND pole inner)
    Operating Temperature15°C - 30°C
    Storage Temperature-40°C - 80°C
    Warm up time<15min
    Power Supply includedJa
    Weight55g
    Power SupplyPower Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
  • Illustration and technical drawing
  • DD532-1-3(20x80)-AP-CON-NT - Hauptbild
    DD532-1-3(20x80)-AP-CON-NT - Zeichnung
    DD532-1-3(20x80)-AP-CON-NT - Zeichnung Front
    DD532-1-3(20x80)-AP-CON-NT - Zeichnung isometrisch
    Warnlabel 2
    Connector pin assignment
    Ground:Cable color Ground: blueblueGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • AM1-1203SZAM1-1203SZ
    Order no.: 70114928
    DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
    16.72 EUR
